SPE Motorsport Hot Side Intercooler Pipe For 2011-2025 Ford 6.7L Powerstroke non-HO trucks
SKU:
SPE-S100117
SELECT FITMENT
See If This Product Fits Your Vehicle
- $249.99
- $249.99
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99

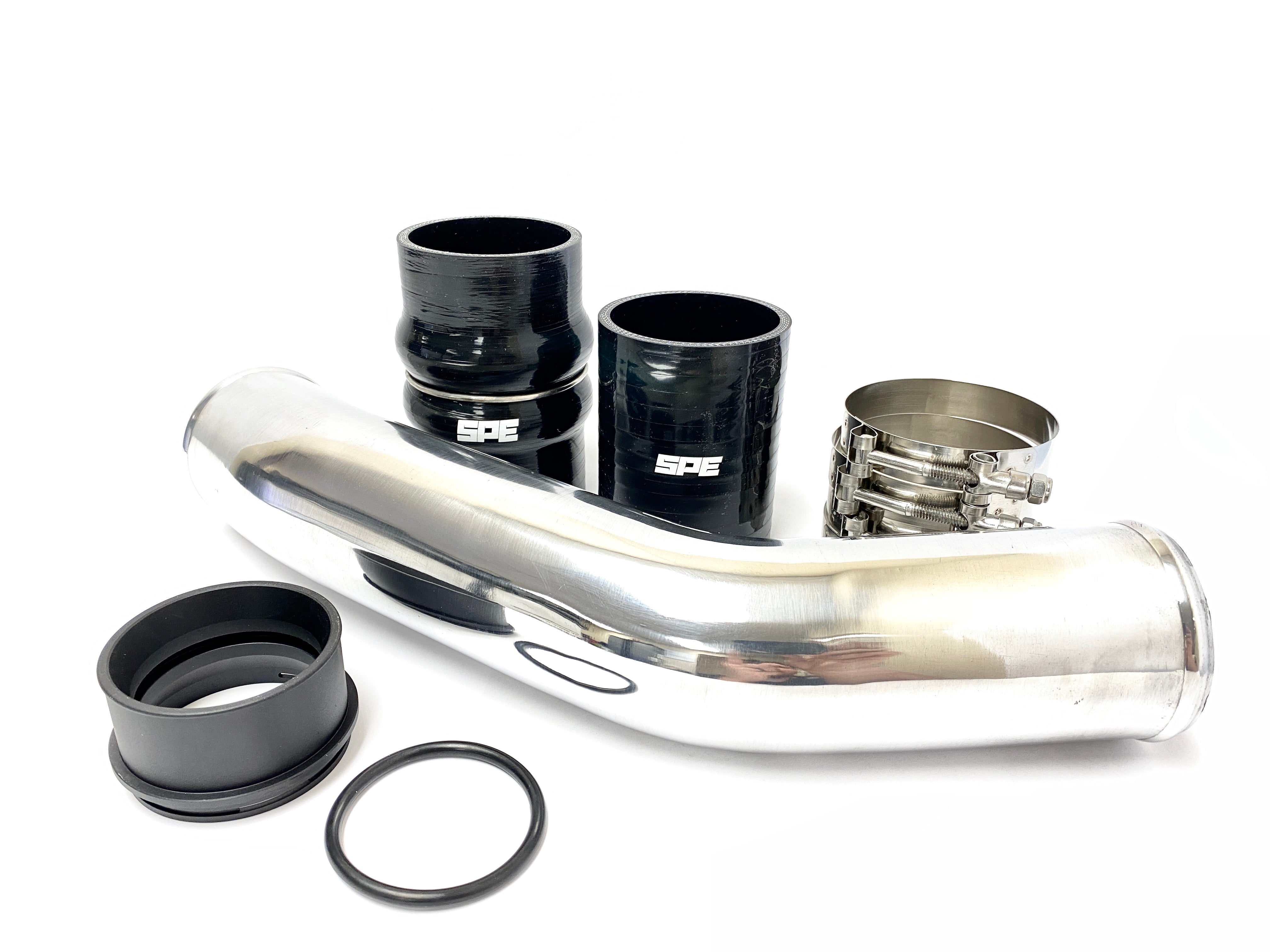

The SPE Motorsport Hot Side Intercooler Pipe is a direct-fit 3-inch mandrel-bent aluminum hot side charge pipe for 2011-2025 Ford 6.7L Powerstroke (non-HO) trucks. Snyder Performance Engineering waited to release this kit until they had the strongest and most modular design possible — starting with a CNC-machined billet 3-inch turbo compressor adapter that seals with a thick 5mm O-ring (instead of the thin, leak-prone factory ribbon seal), retains the factory snap/quick-connect ring for easier installation, and works with both factory and most non-VGT aftermarket turbo setups.
The pipe itself is mandrel-bent from thick-wall T6 aluminum with the fewest bends possible for minimum airflow restriction and maximum visual appeal. A polished finish keeps the engine bay looking clean, the 5-ply silicone couplers are far stronger than factory rubber (with a metal-ringed flex coupler on the intercooler side for extra strength), and all necessary T-bolt clamps and installation hardware are included. No tuning required, and easy enough for a novice to install.
Features:
- Direct fit for 2011-2025 6.7L Powerstroke (non-HO) trucks
- Mandrel-bent heavy-wall T6 aluminum tubing for maximum flow
- Larger pipe size than factory for improved airflow volume
- Polished finish for a clean under-hood appearance
- Billet 3" turbo adapter with thick 5mm O-ring seal
- Eliminates leak-prone factory thin ribbon O-ring seal
- 5-ply silicone couplers with metal-ringed flex on intercooler side
- Works with factory and most non-VGT aftermarket turbos
Specifications:
- Brand: Snyder Performance Engineering
- Part Type: Hot Side Intercooler / Charge Pipe
- Pipe Material: Mandrel-Bent T6 Aluminum
- Pipe Diameter: 3 inches
- Finish: Polished
- Turbo Adapter: CNC Billet 3" with 5mm O-Ring (Black Anodized)
- Coupler Material: 5-Ply Silicone
- Intercooler Side Flex Coupler: Metal-Ringed for Strength
- Clamps: T-Bolt Clamps Included
- Engine: 6.7L Powerstroke Diesel (Non-HO)
- Vehicle Year Range: 2011-2025 Super Duty
- Tuning Required: No
- Sold As: Complete Hot Side Pipe Kit
Included:
- (1) 3" Mandrel-Bent Aluminum Intercooler Pipe (Polished)
- (1) Billet Aluminum 3" Turbo Adapter (Black Anodized)
- (1) 5mm O-Ring Seal
- (2) 5-Ply Silicone Couplers
- (4) T-Bolt Clamps
- (1) Detailed Installation Instructions
Fitment:
- 2011-2025 Ford F-250 Super Duty 6.7L Powerstroke (Non-HO)
- 2011-2025 Ford F-350 Super Duty 6.7L Powerstroke (Non-HO)
- 2011-2025 Ford F-450 Super Duty 6.7L Powerstroke (Non-HO)
- 2011-2025 Ford F-550 Super Duty 6.7L Powerstroke (Non-HO)
Notes:
- Fits ALL year non-HO 6.7L Powerstroke trucks (not high-output)
- Retains factory snap/quick-connect ring for turbo adapter
- Works with factory and most non-VGT aftermarket turbochargers
- Previous Part Number: SPE-67HSP
