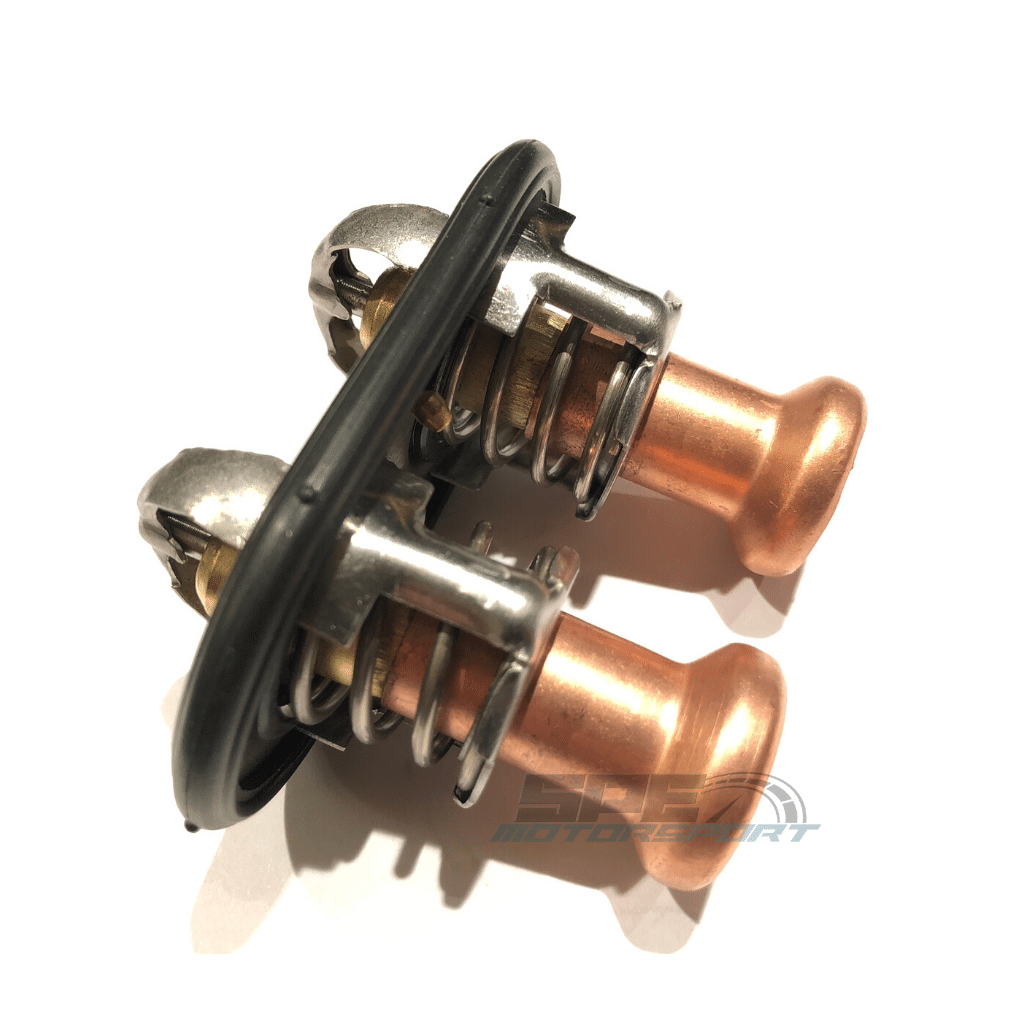

SPE Motorsport 175°F/180°F Low Temp High Flow Thermostat For 2011-2024 Ford 6.7L Powerstroke
SKU:
SPE-S100119
SELECT FITMENT
See If This Product Fits Your Vehicle
- $64.99
- $64.99
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
The SPE Motorsport Low Temp, High Flow Thermostat is an engineered solution for the chronic high fluid temperature problem on the 6.7L Powerstroke. After extensive testing on the 6.7L application, SPE developed a thermostat that opens at 175/180°F — a significant 19-21 degree drop from the OEM unit which doesn't crack open until 194/201°F. The result is dramatically lower coolant, oil, and transmission temperatures during normal driving, towing, and severe-duty operation.
Real-world testing shows up to 30°F temperature drops across the cooling system. Engine oil temperatures under severe driving conditions average 215-235°F with the SPE thermostat versus 240-260°F with the factory unit — that's the difference between healthy oil life and accelerated breakdown. On 2017-2019 Powerstrokes, the primary cooling system also cools the transmission, so the SPE thermostat doubles as a transmission cooling upgrade. Installation takes 15 minutes with hand tools.
Features:
- Opens at 175/180°F vs OEM 194/201°F (19-21°F earlier)
- Up to 30°F observed temperature drops across cooling system
- Lowers coolant, oil, AND transmission temps (2017-2019 only)
- Direct factory replacement, no modifications needed
- 15-minute installation with hand tools
- Engineered specifically for the 6.7L Powerstroke platform
- No tuning required for stock or tuned trucks
- Critical upgrade for towing, hauling, and performance use
Specifications:
- Brand: Snyder Performance Engineering (SPE Motorsport)
- Application: 2011-2024 Ford 6.7L Powerstroke
- Opening Temperature: 175/180°F (OEM is 194/201°F)
- Temperature Drop: ~30°F observed under severe duty
- Cools: Coolant + oil (2011-2024) + transmission (2017-2019)
- Fitment Type: Direct factory replacement
- Tuning Required: No
- Installation Time: ~15 minutes
- Country of Manufacture: United States
- Warranty: 1 Year Limited
- Hardware: Reuses factory mounting hardware
- Previous Part Number: SPE-SLTHFT
Included:
- (1) SPE Low Temp High Flow Thermostat
- (1) New thermostat housing gasket
Fitment:
- 2011-2024 Ford F-250 Super Duty 6.7L Powerstroke
- 2011-2024 Ford F-350 Super Duty 6.7L Powerstroke
- 2011-2024 Ford F-450 Super Duty 6.7L Powerstroke
- 2011-2024 Ford F-550 Super Duty 6.7L Powerstroke
Notes:
- On 2017-2019 trucks, also lowers transmission temp via primary cooling system
- On 2011-2016 trucks, transmission cooled by secondary system (separate)
- Replaces SPE legacy SPE-SLTHFT part number
*2017-2019 Powerstrokes use the primary cooling system to cool the transmission unlike the 2011-2016 which uses the secondary cooling system.
ENGINE OIL TEMPERATURES UNDER DIFFERENT DRIVING CONDITIONS
|
NORMAL |
MODERATE |
SEVERE |
|
|
OEM Thermostat Temp 194-201°F |
200-210 °F |
220-235 °F |
240-260 °F |
|
SPE Thermostat Temp175-180°F |
180-188 °F |
190-210 °F |
215-235 °F |
This chart is based on averages over a range of data. Results may vary.
