SPE Motorsport 4140 Billet Oil Pump Gear Set For 2011-2026 Ford 6.7L Powerstroke 800HP+ Build
SKU:
SPE-S100104
SELECT FITMENT
See If This Product Fits Your Vehicle
- $479.00
- $479.00
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99

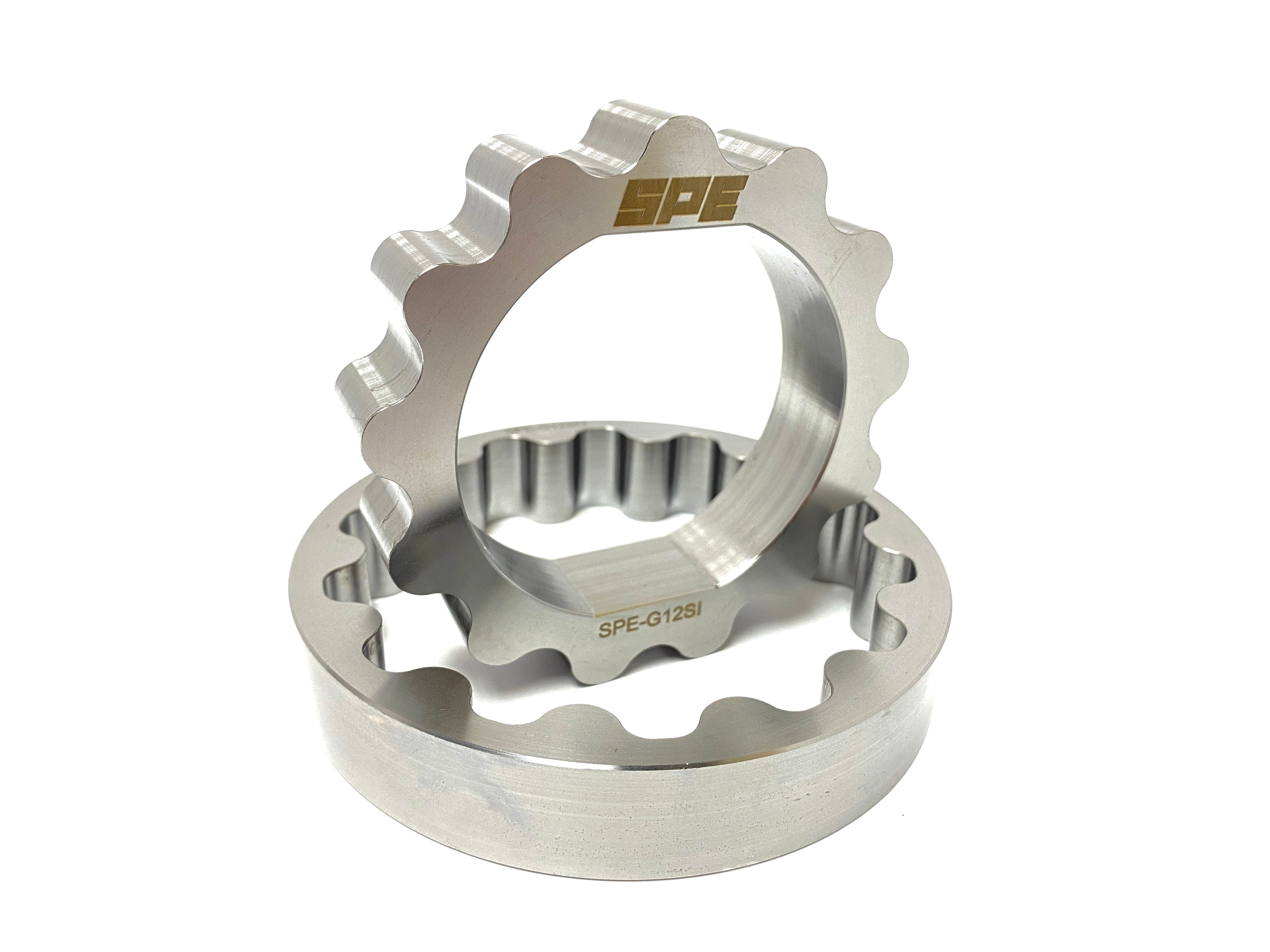

The SPE Motorsport 6.7L Powerstroke Billet Oil Pump Gear Set is a built-engine upgrade for 800HP+ 6.7L Powerstroke applications where the factory oil pump gear is known to stretch and fail under sustained high-RPM, high-load conditions. Snyder Performance Engineering tested this gear set extensively in their own UCC truck and in their drag racing program, where after running a factory gear for a single season, measurement revealed the inner gear had stretched approximately 0.020" out of round — a condition that ultimately leads to failure and engine damage.
Precision-machined from 4140 hardened steel, this gear set includes both the inner and outer gear as a precision-matched pair, ensuring the tightest possible tolerances and reliable operation under the most abusive conditions — sled pulling, drag racing, dyno work, and any sustained high-output use. The outer gear in factory applications typically survives, but SPE includes both so you get perfectly matched tolerances from install. If you're pushing the 6.7L to the limit, this gear set eliminates a known weak point before it becomes a crankshaft-destroying failure.
Features:
- Precision machined from 4140 hardened steel, far stronger than OEM
- Includes BOTH inner AND outer gears for precision-matched tolerance
- Tested in SPE's UCC truck and dragster under abusive conditions
- Eliminates stretching/breaking seen in factory gears at 800HP+
- Perfect for sled pulling, drag racing, and competition builds
- Found factory gear stretched 0.020" out of round in one season
- Precision pair ensures best possible oil pump tolerances
- Addresses known weak point before catastrophic failure occurs
Specifications:
- Brand: Snyder Performance Engineering
- Part Type: Billet Oil Pump Gear Set
- Material: 4140 Hardened Steel
- Components: Inner Gear + Outer Gear (Matched Pair)
- Engine: 6.7L Powerstroke Diesel
- HP Target Application: 800HP and Higher Builds
- Tolerance: Precision-Matched Pair
- Factory Failure Mode: Inner Gear Stretch (~0.020" per season)
- Application: Sled Pull, Drag Race, Competition, Abusive Use
- Tested In: SPE UCC Truck and Dragster
- Installation: Factory Oil Pump Gear Replacement
- Tuning Required: No (Typically Paired With Tuning)
- Previous Part Number: SPE67BOPG
Included:
- (1) SPE Motorsport Billet 4140 Inner Oil Pump Gear
- (1) SPE Motorsport Billet 4140 Outer Oil Pump Gear
Fitment:
- 2011-2026 Ford F-250 Super Duty 6.7L Powerstroke
- 2011-2026 Ford F-350 Super Duty 6.7L Powerstroke
- 2011-2026 Ford F-450 Super Duty 6.7L Powerstroke
- 2011-2026 Ford F-550 Super Duty 6.7L Powerstroke
Notes:
- Recommended for 800HP+ built engine applications
- Install both gears together as a matched pair for best tolerances
- Critical upgrade for sled pulling, drag race, and competition trucks
- Previous part number: SPE67BOPG
