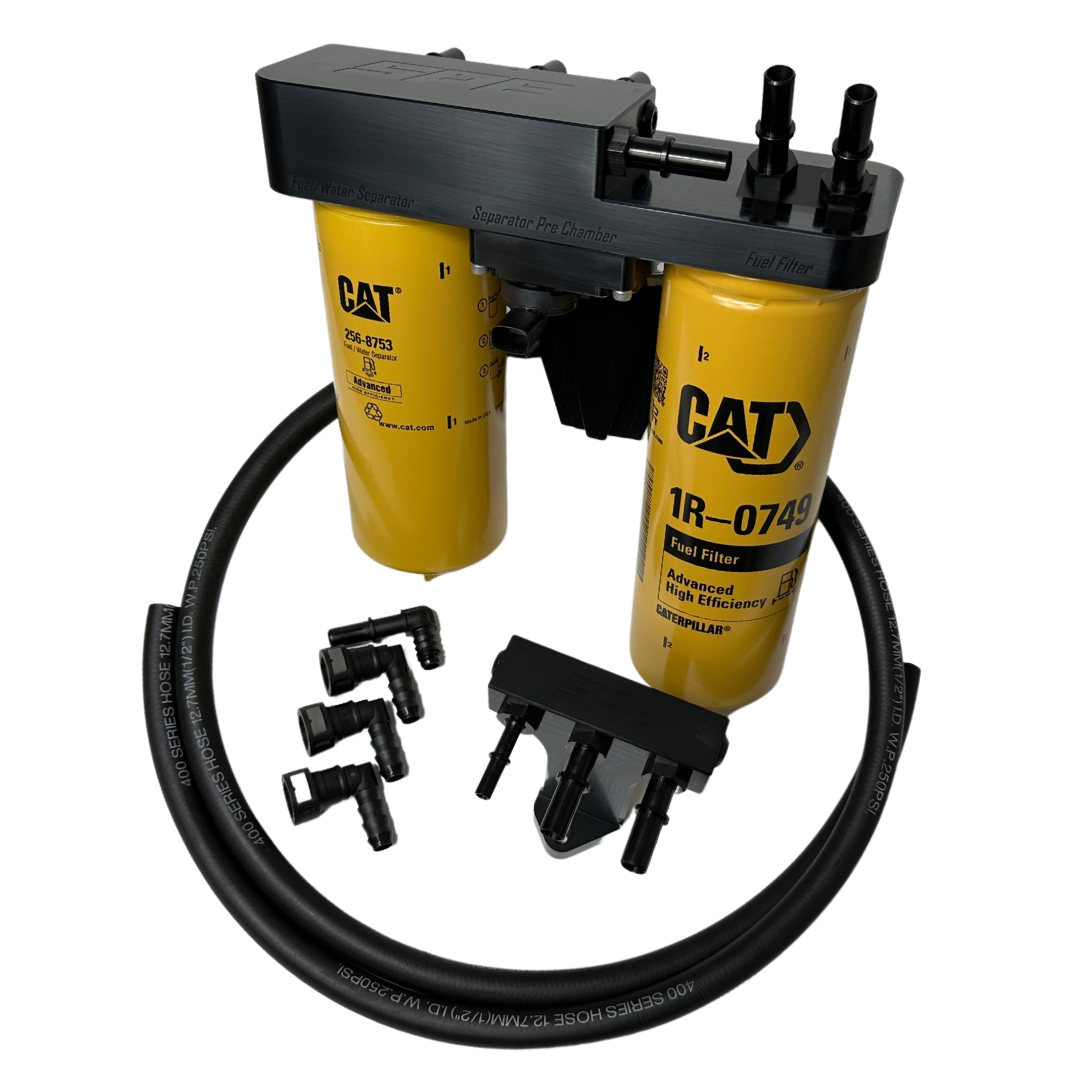

SPE Motorsport Fuel Filter System For 2017-2026 Ford F-250/F-350 6.7L Powerstroke
SKU:
SPE-S100210
SELECT FITMENT
See If This Product Fits Your Vehicle
- $799.00
- $799.00
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Upgrade the cooling capacity, strength, and serviceability of your 10R140 transmission with the SPE Motorsport Deep Transmission Pan for 2020-2026 6.7L Powerstroke trucks. Built for towing, hauling, daily driving, and performance use, this heavy-duty pan delivers increased fluid capacity and improved heat control while adding durability where the factory pan needs it most. It is the perfect upgrade for owners who demand long-term reliability from their Super Duty.
With an approximate 8-quart additional fluid capacity, this deep pan gives your transmission a larger fluid reserve to help maintain lower operating temperatures under demanding conditions. Combined with internal and external cooling fins, the pan improves heat dissipation to support better transmission performance during towing, work use, or aggressive driving. More fluid volume can also help extend service intervals and improve consistency under load.
SPE engineered this pan with real-world maintenance and durability in mind. A large 3/4-inch NPT drain plug allows easier fluid changes and resists stripped threads, while the pan retains the factory magnet for continued debris collection. The cast aluminum construction also helps reinforce the transmission case like a girdle for added strength. Select model year options may also include a factory-style fill port for 2023+ applications.
Features:
- Replaces both factory fuel filters with a complete upgraded system
- Relocates both filters underneath the truck for easier servicing
- CAT 256-8753 water separator outflows factory filter by 150+ GPH
- Pre-chamber improves water-in-fuel sensor warning response time
- CAT 1R0749 main filter provides 2-micron absolute filtration
- Billet aluminum manifold replaces upper filter and adds aux ports
- Uses factory fuel lines, mounts, and connections with no cutting
- Designed for stock and high-horsepower fuel demand applications
- Helps extend service intervals with larger premium filter capacity
- Installs without dropping the fuel tank
Specifications:
- Brand: SPE Motorsport
- Product Type: Fuel Filter System
- Engine Fitment: Ford 6.7L Powerstroke
- Vehicle Years: 2017-2026
- System Type: Dual Filter Conversion
- Main Filter: CAT 1R0749
- Main Filter Rating: 2 Micron Absolute
- Water Separator Filter: CAT 256-8753
- Water Separator Rating: 10 Micron
- Material: Billet Aluminum
- Finish: Black Anodized
- Mounting Location: Factory Lower Filter Location
- Sensor Provision: Factory WIF Sensor Retained
- Installation Type: Bolt-On
- Bed Options: Short Bed / Long Bed / Aftermarket Tank Options
Included:
- (1) Fuel Filter System Assembly
- (1) Billet Fuel Manifold
- (1) Water Separator Housing
- (1) Main Filter Mount
- (1) Hardware Kit
- (1) Installation Components Set
Fitment:
- 2017-2026 Ford F-250 Super Duty 6.7L Powerstroke Short Bed
- 2017-2026 Ford F-250 Super Duty 6.7L Powerstroke Long Bed
- 2017-2026 Ford F-350 Super Duty 6.7L Powerstroke Short Bed
- 2017-2026 Ford F-350 Super Duty 6.7L Powerstroke Long Bed
- 2017-2026 Ford F-450 Super Duty 6.7L Powerstroke Short Bed
- 2017-2026 Ford F-450 Super Duty 6.7L Powerstroke Long Bed
Notes:
- Select the correct bed length and tank configuration before checkout
- Additional variants available for S&B or Titan fuel tank equipped trucks
- Does NOT fit Extended Cab models
- Does NOT fit Single Cab models
- Does NOT fit Cab & Chassis trucks
Product Specs
SKU:
SPE-S100210
Brand:
Snyder Performance Engineering
