SPE Motorsport Billet Magnetic Engine Oil Drain Plug For 2011-2025 Ford 6.7L Powerstroke
SKU:
SPE-S100377
SELECT FITMENT
See If This Product Fits Your Vehicle
- $29.99
- $29.99
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99

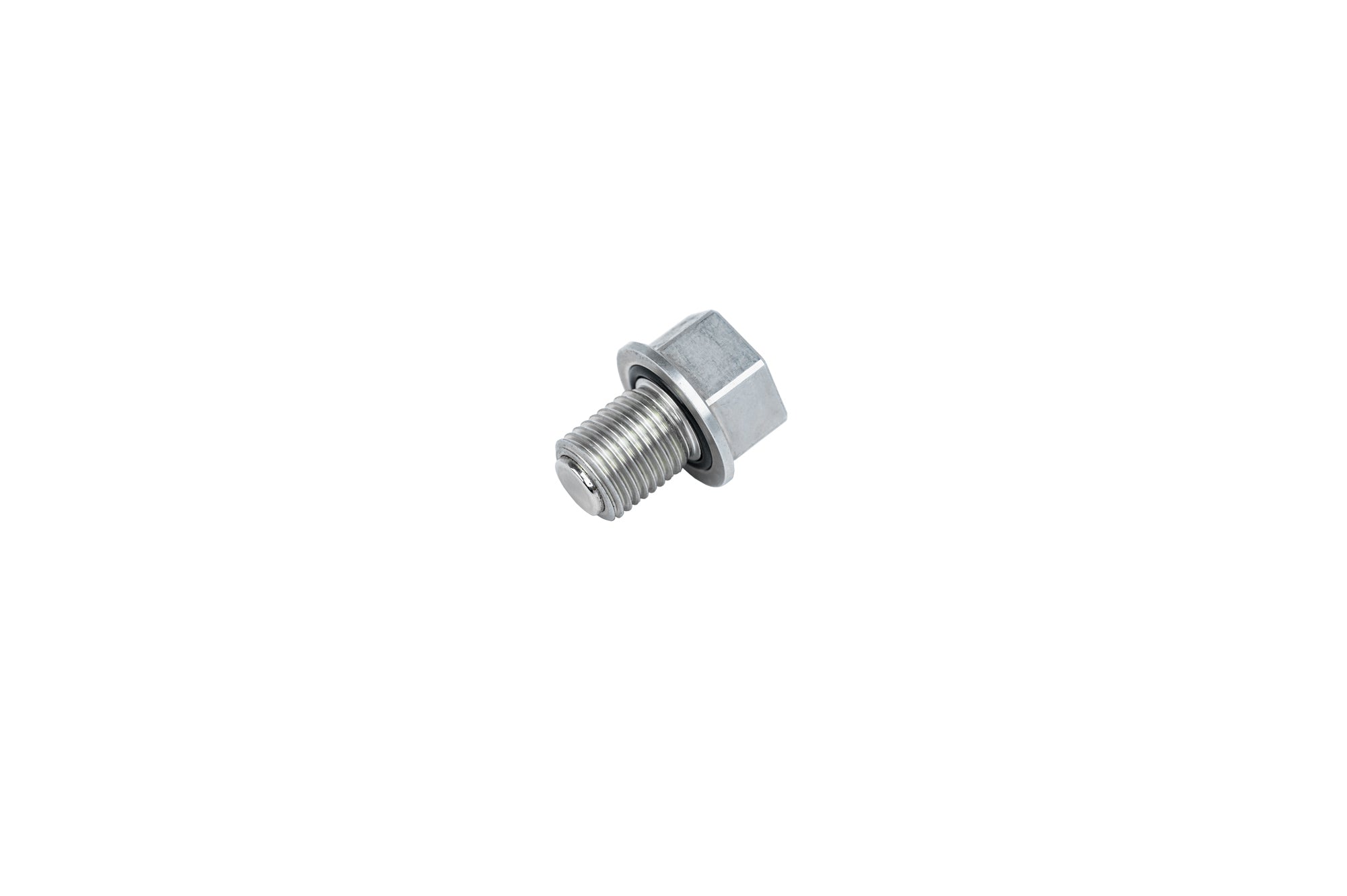

The SPE Motorsport Billet Steel Magnetic Oil Drain Plug is designed for 2011-2025 Ford 6.7L Powerstroke trucks equipped with the factory steel oil pan or the SPE Billet Oil Pan — and eliminates the need to remember a wrench when doing oil service. Machined from billet steel with a zinc coating for corrosion resistance, the plug features both a 19mm hex drive and a 3/8-inch square ratchet drive, so you can grab whichever tool is closest and drain the oil in seconds.
The magnetic tip uses a rare-earth Neodymium magnet with 5 pounds of pulling force — capturing any magnetic debris that makes it past the oil filter and giving you a visual indicator of engine wear metal presence at every oil change. Replaceable O-ring for leak-free sealing. Note: this plug differs from the non-magnetic SPE drain plug; SPE offers both designs based on owner preference (see the non-magnetic version if you prefer that philosophy).
Features:
- Billet steel construction with zinc corrosion-resistant coating
- Rare-earth Neodymium magnet with 5 lbs of pulling force
- 19mm hex drive AND 3/8-inch ratchet square drive
- No more needing to remember which wrench size to grab
- Captures magnetic wear debris for visual engine monitoring
- Replaceable O-ring seal for leak-free oil containment
- Eliminates potential galling and stripping over time
- Works with factory steel oil pan or SPE Billet Oil Pan
Specifications:
- Brand: Snyder Performance Engineering
- Part Type: Magnetic Oil Drain Plug
- Material: Billet Steel with Zinc Coating
- Magnet: Rare-Earth Neodymium
- Magnet Pulling Force: 5 Pounds
- Drive Options: 19mm Hex AND 3/8-inch Ratchet Square
- Thread: 14mm x 1.5
- Sealing: Replaceable O-Ring
- Engine: 6.7L Powerstroke Diesel
- Required Oil Pan: Factory Steel OR SPE Billet
- Vehicle Year Range: 2012-2025 (2011 with OEM Steel Pan)
- Installation: Direct OEM Drain Plug Replacement
- Sold As: Single Drain Plug with O-Ring
Included:
- (1) SPE Motorsport Billet Steel Magnetic Oil Drain Plug
- (1) Replacement O-Ring Seal
Fitment:
- 2012-2025 Ford F-250 Super Duty 6.7L Powerstroke (Steel Pan)
- 2012-2025 Ford F-350 Super Duty 6.7L Powerstroke (Steel Pan)
- 2012-2025 Ford F-450 Super Duty 6.7L Powerstroke (Steel Pan)
- 2012-2025 Ford F-550 Super Duty 6.7L Powerstroke (Steel Pan)
Notes:
- MUST have factory steel oil pan or SPE Billet Oil Pan
- Also fits 2011 Powerstrokes retrofitted with OEM metal oil pans
- 14mm x 1.5 thread may work on other applications (verify first)
- SPE also offers a non-magnetic version for different philosophy
LEARN MORE HERE:
*MUST HAVE STEEL OIL PAN.
**WILL FIT 2011 Powerstrokes with retrofitted OEM metal oil pans
