Snyder Performance Engineering

SPE Motorsport XD Cast Aluminum Cold Side Pipe For 2011-2025 Ford 6.7L Powerstroke Super Duty

SKU: SPE-S100328

SELECT FITMENT

See If This Product Fits Your Vehicle

$399.00
$399.00

Free Shipping

Free ground shipping on all orders over $99
Year: 11-16 (3 Inch IC Oulet)
Finishing: Raw
Description

The SPE Motorsport XD Cold Side Pipe is the most extreme fix on the market for the problematic OEM plastic intercooler pipe on 2011-2016 Powerstroke trucks and the rubber hose on 2017-2025 Powerstrokes — both of which are known to explode or burst under high boost and increased heat. SPE has known about this failure mode for years and now offers multiple solutions, with the XD representing the final-boss option for trucks worked extremely hard at max capacity.

This is an industry first for the 6.7 Powerstroke — a full-length hard pipe with no 90-degree boot connection to the intercooler. While designed as a factory replacement, the XD eliminates the typical downfalls of competing cold side pipes by using all straight hose connections with no silicone couplers in bends (which collapse and restrict flow). SPE implements a cast "cobra head" at the intercooler outlet to retain maximum flow and volume — only possible with a cast design — while keeping factory location and clearances. If you want the strongest cold side solution available, this is it.



Features:

  • Full-length hard pipe cast aluminum construction
  • Industry-first design — no 90-degree boot at intercooler outlet
  • Cobra head cast design for max flow at factory location
  • Straight hose connections eliminate collapsed bend couplers
  • Billet anodized throttle body adapter included
  • 5-ply silicone coupler boots — straight, no bends
  • Three integrated reference ports — no drilling required
  • No tuning required — works with factory or tuned trucks



Specifications:

  • Brand: Snyder Performance Engineering (SPE Motorsport)
  • Application: 2011-2025 Ford 6.7L Powerstroke
  • Construction: Full-length cast aluminum hard pipe
  • Outlet Design: Cast cobra head for max flow
  • Adapter: Billet anodized throttle body adapter
  • Coupler Type: Straight 5-ply silicone (no bends)
  • Reference Ports: Integrated (boost/injectables)
  • Tuning Required: No
  • Powder Coat Lead Time: 2-4 weeks
  • Country of Manufacture: United States
  • Warranty: 1 Year Limited
  • Hardware: T-bolts, plugs, and O-ring included

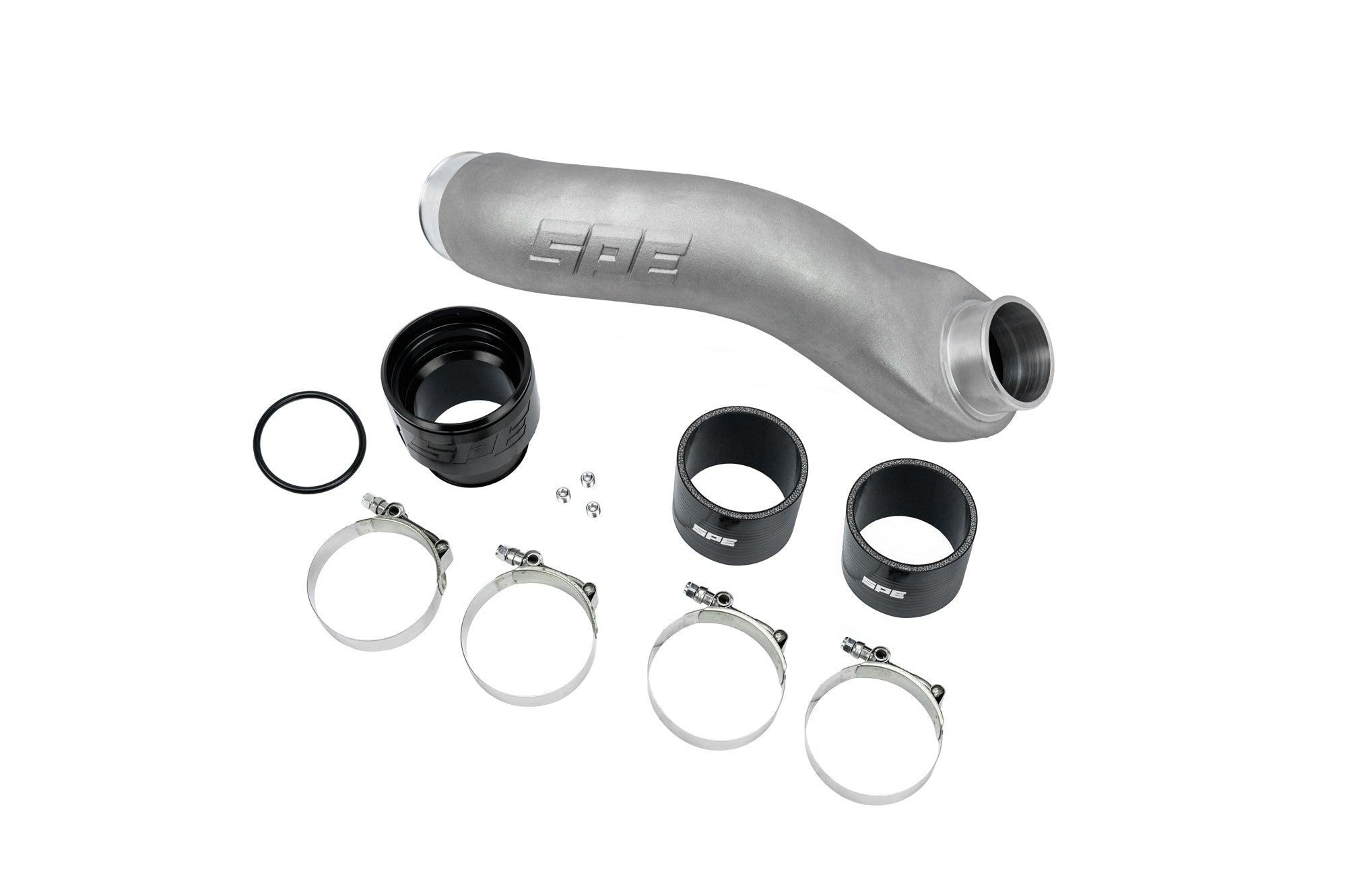

Included:

  • (1) Full-length cast aluminum XD cold side pipe
  • (1) Billet anodized throttle body adapter
  • (1) Set of straight 5-ply silicone coupler boots
  • (1) Set of T-bolt clamps
  • (1) Set of plugs
  • (1) O-ring



Fitment:

  • 2011-2016 Ford F-250/F-350/F-450/F-550 Super Duty 6.7L Powerstroke
  • 2017-2019 Ford F-250/F-350/F-450/F-550 Super Duty 6.7L Powerstroke
  • 2020-2025 Ford F-250/F-350/F-450/F-550 Super Duty 6.7L Powerstroke



Notes:

  • Powder coat finish has a 2-4 week lead time
  • Industry-first full-length hard pipe with no 90° boot connection
  • If you're using an aftermarket intercooler, measure your intercooler outlet. MOST are 3".
  • If that is the case and you have a 17-22 Powerstroke you'll need to choose the 11-16 kit in order to have the correct size hose.
