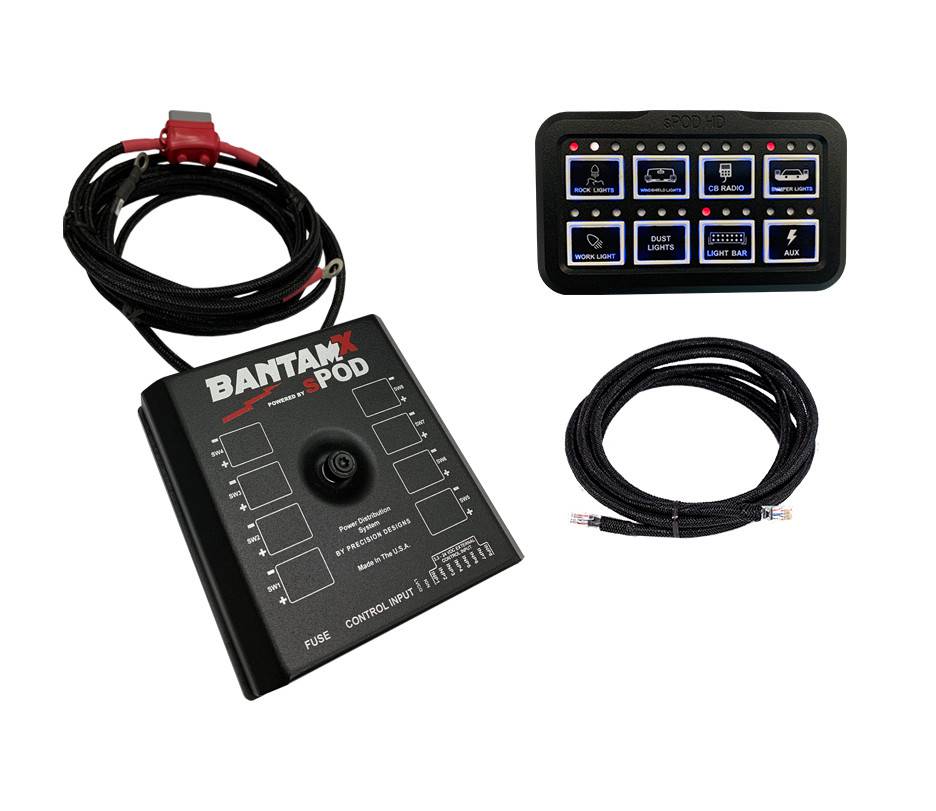

sPOD BantamX Universal HD Programmable 8-Circuit Control Panel With 84" Cable

SKU: BXHDUNI84

SELECT FITMENT

See If This Product Fits Your Vehicle

$930.00
$930.00
$1,070.00

Free Shipping

Free ground shipping on all orders over $99

The BantamX will save hours of wiring & installation time! It is a small, 8-circuit (expandable) control system that provides a clean (one ethernet cable into the cab!) and safe way to power and control 12/24VDC accessories. Due to the small footprint of the BantamX, the placement options are endless! No cutting, fishing wires into the cab or tapping into the vehicle‘s electrical system. It’s the perfect over-all solution for all your aftermarket electrical accessories with options unmatched by anyone.



Features:

  • Fully programmable, digital controlled system
  • 8 circuits rated at 30 amps at 12.5 VDC per circuit
  • 16-position terminal block (easily attach accessories)
  • 2 controller ports (RJ45) for Ethernet cables
  • Integrated low voltage cutoff (LVCO) battery protection w/ optional override
  • One ATM mini-style fuse for LVCO protection & reset
  • Failsafe self-healing fault protection system (from 1.5 to 30amps)
  • Current-sensing MOSFETs controlled by a microprocessor (no fuses & relays)
  • 100amp in-line fuse
  • Nylon braided battery cables are hi-strand crosslinked copper wire with a silicone jacket
  • Operates on 12VDC or 24VDC
  • 8-position input terminal block for controlling outputs
  • Built-in Bluetooth capabilities for remote control
  • Protection against: overheating, over-current, shorts, reverse polarity & field collapse
  • Ignition control and safety lock-out for switches 1 and 2 (optional)
  • On-demand wireless software updates/upgrades
  • Dimming
  • Strobe
  • Flash
  • Momentary
  • Switch Linking
  • On Road and Off Road mode of operation
  • Circuit timers
  • Switch lockout
  • Initial startup current for each circuit is raised to 65amps for 5 seconds
  • Program any circuit to be always on while still maintaining fault protection
  • Option to disable deep sleep mode
  • Selectable auto restart after circuit shuts down from over current/short
  • Programmable Current Limiting (in 2amp increments up to 30amps)
  • Selectable auto restart for current limiting shut down
  • Selectable “Latch” or “Momentary” actions for inputs
  • Programmable ignition control for all 8 circuits
  • Variable strobe function to create custom flash/strobe patterns
  • Can be Paired With the Following
  • Third party switches
  • Computers
  • Arduino
  • Raspberry Pi
  • Alpine Audio systems KAC-001 head unit controller
  • Sensors, thermostats, pressure switches, fan controllers & more



Fitment:

  • Universal



Included:

  • Control Box
  • Ethernet Cable
  • Touch Pad Control Panel
  • Powder coated steel base w/ built in hardware
  • Silicone gasket for weatherproofing
  • Simple thumb screw fastening aluminum lid with convenient silkscreened outlines for placement of supplied legends
  • Universal & vehicle specific mounting options
  • Robust insulated base and cover



Note:

  • Let the temperature of the cab of the vehicle warm up before operation

Product Specs

SKU:
BXHDUNI84
Brand:
sPOD
