SuperATV Arctic Cat Wildcat 6" Portal Gear Lift

SKU: PGH6-5-25-301

SELECT FITMENT

See If This Product Fits Your Vehicle

$3,099.95
$3,099.95
$3,391.95

Free Shipping

Free ground shipping on all orders over $99
Select SKU: PGH6-5-25-101 (See Fitment Tab)
Portal Housing Material: Cast
Portal Gear Reduction: 30%
Description

Gen 3 Portals are Geared for All

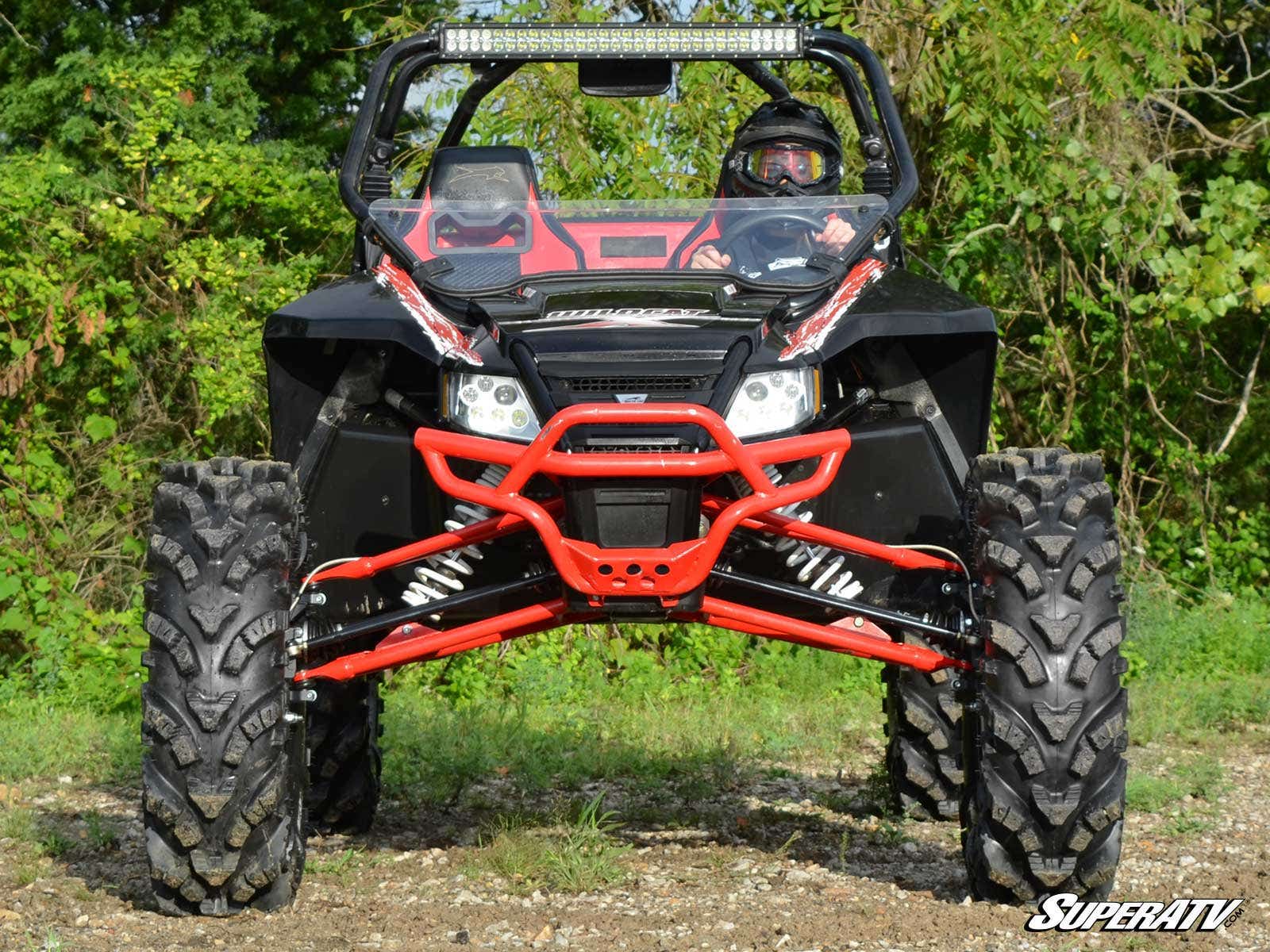

SuperATV’s GDP 6" Portal Gear Lift for the Arctic Cat Wildcat gives you a lift and a gear reduction in one box. Get the clearance to run bigger tires and the torque you need to turn them. The lift and gear reduction are in the hub, which helps maintain suspension geometry and reduce drivetrain stress. Choose between a 30% or 45% gear reduction and a cast or billet aluminum housing.

45% – Perfect for MudInstall big 6" portals with a 45% gear reduction to get clearance for huge tires and a massive boost in torque. It’s built to turn monster tires and power through deep mud holes.

45% – Perfect for RocksA 6" portal box with a 45% gear reduction gives you tons of torque to crawl over rocks and boulders. More clearance means bigger tires and the ability to tackle tougher rock gardens.

30% – Perfect for EverythingA 30% gear reduction lets you turn bigger tires and gives you the versatility to run mud, dominate trails and hills, and maintain higher road speed.

Our gears are precision ground and made with 9310 billet steel alloy for high strength and smooth, quiet operation. Both cast and billet housings are reinforced for strength, with improved oil flow and advanced sealing to help prevent leaks.

  • Available with billet or cast aluminum housing
  • Cool, quiet, precision ground gears made from 9310 alloy billet steel
  • Increases width by 4 in. per side (8 in. total)
  • 1.5 in. diameter 4340 hardened steel drive shaft
  • No leak bearings and seals
  • Universal hub fits all major bolt patterns
  • Comes complete with all hardware, backing plates, brake lines, and instructions

Arctic Cat Wildcat Portal Gear Reduction Recommendations

  • Up to 34" tire size: stock suspension setup with 30% reduction
  • 35" to 36" tire size: 6" lift kit with 15% reduction

Gear reductions listed are general guidelines to maintain factory top speed. Installing a larger than recommended gear reduction will result in extra torque and lower top speed. Give us a call for more information.

Fitment

  • SuperATV Part Number PGH-5-25-101 fits Arctic Cat Wildcat 1000 (2012-2016), Arctic Cat Wildcat X (2013), and Arctic Cat Wildcat 1000 LTD (2014)
  • SuperATV Part Number PGH-5-25-102 fits Arctic Cat Wildcat 4 Seater (2013-2016) and Arctic Cat Wildcat X (2014-2016)
  • Wheel requirements: 18" or larger wheel required
  • Wheels cannot exceed 5" backspacing
  • Wheels need a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer

Patent # 11,299,042
