SuperATV Arctic Cat Wildcat Trail 4" Portal Gear Lift
SuperATV Arctic Cat Wildcat Trail 4" Portal Gear Lift
SuperATV Arctic Cat Wildcat Trail 4" Portal Gear Lift
SuperATV Arctic Cat Wildcat Trail 4" Portal Gear Lift
SuperATV Arctic Cat Wildcat Trail 4" Portal Gear Lift
SuperATV Arctic Cat Wildcat Trail 4" Portal Gear Lift
SuperATV Arctic Cat Wildcat Trail 4" Portal Gear Lift
SuperATV Arctic Cat Wildcat Trail 4" Portal Gear Lift
SuperATV Arctic Cat Wildcat Trail 4" Portal Gear Lift
SuperATV Arctic Cat Wildcat Trail 4" Portal Gear Lift
SuperATV

SuperATV Arctic Cat Wildcat Trail 4" Portal Gear Lift

SKU: PGH-5-40-151

SELECT FITMENT

See If This Product Fits Your Vehicle

$2,649.95
$2,649.95
$2,941.95

Free Shipping

Free ground shipping on all orders over $99
Portal Housing Material: Cast
Portal Gear Reduction: 15%
Description

Gen 3 Portals are Geared for All

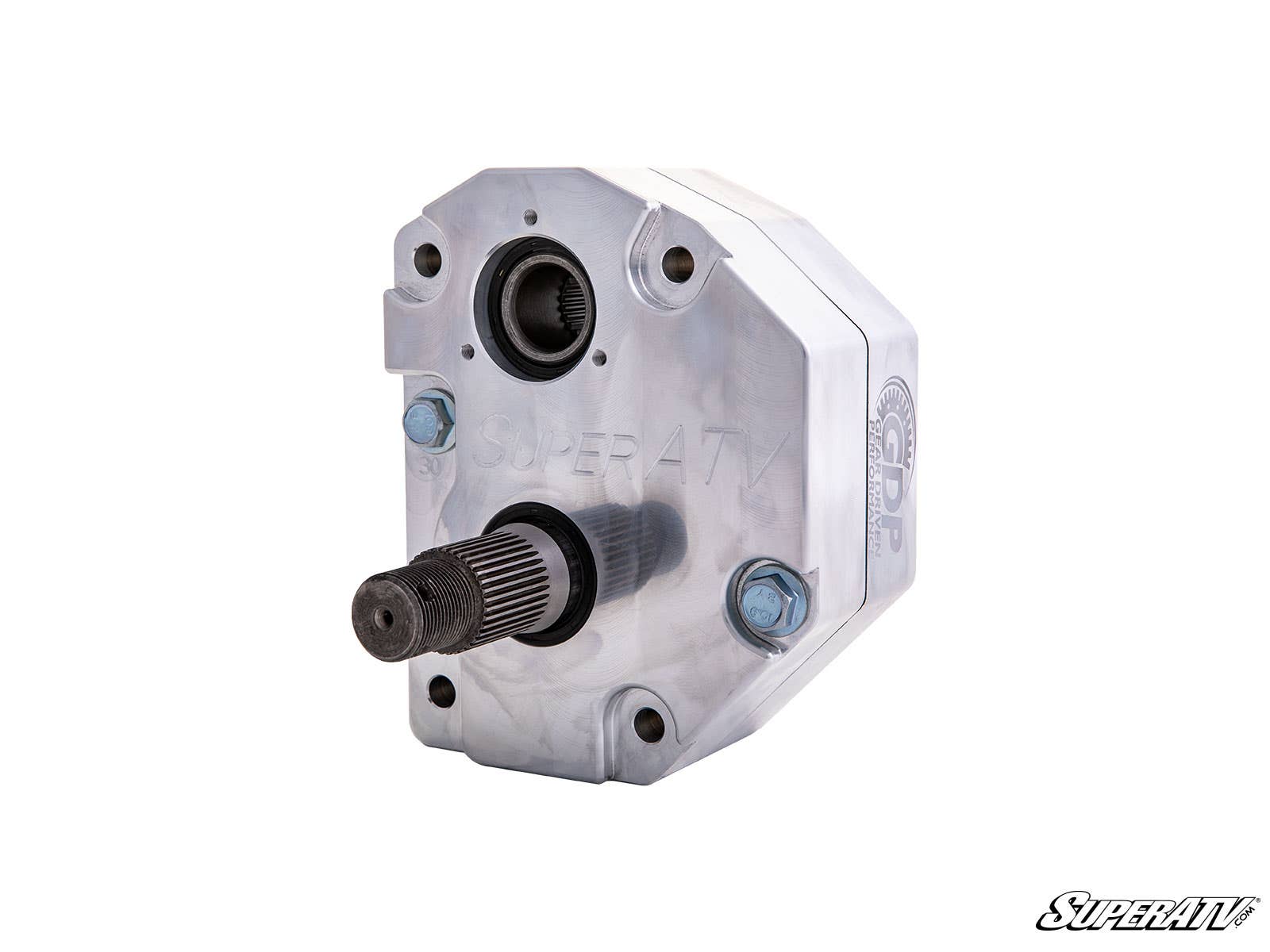

SuperATV’s GDP 4" Portal Gear Lift for the Arctic Cat Wildcat Trail is geared for all. Choose from 15% or 30% gear reductions and cast or billet aluminum housings so you can optimize your machine to fit your style.

Perfect for Mud, Rocks, Dunes, and Trails

With a 30% gear reduction, you’ll be ready to take on bigger, sloppier mud holes and crawl over rocks with more torque. A 15% gear reduction is a great choice for dunes and trails, giving you extra clearance and room for bigger tires while helping you keep your speed up on open terrain.

Better Gears

Our gears are precision ground and made with 9310 billet steel alloy for high strength and high speed. That means they’re cool and quiet even when you’re hammering down the throttle, with the strength to withstand every ride.

Stronger Housings by Design

Whether you choose cast aluminum housings or USA-made 6061 billet aluminum housings, you’re getting strong portal boxes built from experience. Our housings are reinforced in all the right places, designed with better oil flow and gearing forces in mind, and built without gimmicks.

  • Available with billet or cast aluminum housing
  • Cool, quiet, precision ground gears made from 9310 alloy billet steel
  • Increases width by 4 in. per side (8 in. total)
  • 1.5 in. diameter 4340 hardened steel drive shaft
  • No leak bearings and seals
  • Universal hub fits all major bolt patterns
  • Comes complete with all hardware, backing plates, brake lines, and instructions

Advanced Gaskets and Seals

Both housings use advanced gaskets with excellent oil resistance, a sealed input gear, and a double-lipped output seal for strong sealing coverage throughout.

Arctic Cat Wildcat Trail Portal Gear Reduction Recommendations

  • Up to 32" tire size: stock suspension setup with 4" portals, recommended 15% gear reduction
  • Up to 36" tire size: 2-3" lift kit with 4" portals, recommended 30% gear reduction

Gear reductions listed are general guidelines to maximize torque and maintain factory top speed. A larger than recommended gear reduction will result in more torque and lower top speed. Give us a call for more information.

Fitment

  • Arctic Cat Wildcat Trail: 2014+

Wheel Requirements:

  • 14" or larger wheel required
  • Wheels cannot exceed 5" backspacing
  • Not compatible with dual beadlock wheels
  • Wheels need to have a center hole of at least 3.25" (82.55 mm) or require a 1" wheel spacer

Patent # 11,299,042

Fitment
Fitment

Product Specs

SKU:
PGH-5-40-151
Brand:
SuperATV
