SuperATV Can-Am Commander 6" Portal Gear Lift
SKU:
PGH6-7-14-301-02
SELECT FITMENT
See If This Product Fits Your Vehicle
- $3,799.95
- $3,799.95
$4,027.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Customize your Can-Am Commander with a 6" GDP Portal Gear Lift built for strength, clearance, and performance. Choose a 30%, 45%, or 60% gear reduction, and upgrade to dual idler gears for maximum power transfer and durability. The portal gear reduction is located in the hub, helping reduce stress on your axles, differential, prop shaft, and transmission while delivering more torque to the ground.
GDP portals are built with reinforced cast or billet aluminum housings, advanced steel alloy backing plates, and precision-ground 9310 alloy steel gears for a cool, quiet, and reliable ride. They also feature a 1.5 in. diameter 4340 hardened steel drive shaft, advanced gaskets or O-rings, sealed input gears, double-lipped output seals, and double-angular contact output bearings to help protect against wear and leaks.
Portals are a great choice for mud, trails, and oversized tires. The 45% or 60% reduction is ideal for turning big mud tires, while the 30% reduction helps maintain higher top speed for trail riding. For added strength, consider pairing with a SuperATV Frame Stiffener.
- Available with billet or cast aluminum housings

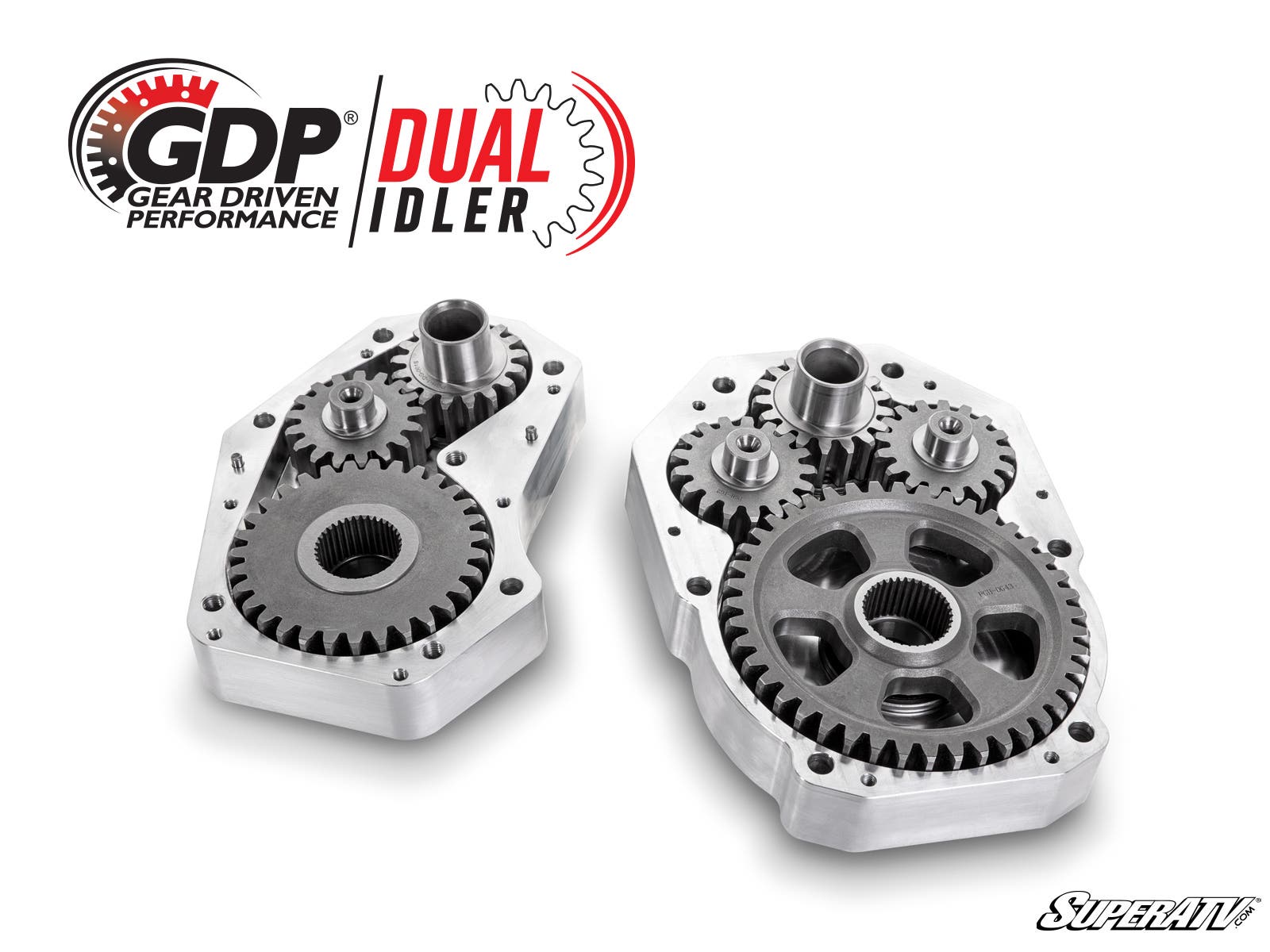

- Dual idler gear configuration maximizes strength
- Cool, quiet, precision ground gears made from 9310 alloy billet steel
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use advanced gaskets or O-rings that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Dual idler gear configuration adds a 1" front and rear offset—2" total extension
- Lighter than the competition
2011-2020 models: These portals use 4" extended rear trailing arms for added stability and larger rear tire clearance. Rhino or Rhino 2.0 axles are required. They are not compatible with SuperATV 6" lift kits or factory air shocks.
Includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (2) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (2) Caliper adapter plates (2011-2020 models only)
- (2) Steel steering arms
- (2) 4" extended rear trailing arms with backing plates (2011-2020 models only)
- Extended brake lines
- All required hardware, including recessed castle nut socket
Fitment:
- Can-Am Commander 800 : 2011-2020
- Can-Am Commander 800 Max : 2016-2020
- Can-Am Commander DPS with 220mm rotor : 2018
- Can-Am Commander XT with 220mm rotor : 2018
- Can-Am Commander 1000 : 2011-2020
- Can-Am Commander 1000R DPS : 2021+
- Can-Am Commander 1000R XT : 2021+
- Can-Am Commander 1000R XTP : 2021+
- Can-Am Commander 1000R XMR : 2022+
- Can-Am Commander Max 1000 : 2014-2020
- Can-Am Commander Max 1000R DPS : 2021+
- Can-Am Commander Max 1000R XT : 2021+
- Can-Am Commander Max 1000R XT-P : 2023+
- Can-Am Commander Max 1000R XMR : 2024+
Notes:
- 2011-2020 models require Rhino or Rhino 2.0 axles
- Not compatible on Commanders with factory air shocks
- 18" or larger wheel required
- 18" wheels cannot exceed 4-1/2" backspacing
- 20" wheels cannot exceed 5" backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
Max tire sizes with 6" portals:
- 2011-2020 models: 33" stock, 35" with 2.5" lift kit, 36" with 1.5" forward front A-arms, 38" with 1.5" forward front A-arms and 2.5" lift kit
- 2021+ models: 34" stock
Max tire sizes are measured at full compression and full turn. The listed sizes are the largest fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.
Patent # 11,299,042Patent # 11,318,787
