SuperATV Can-Am Defender HD10 6" Portal Gear Lift
SKU:
PGH6-7-103-301
SELECT FITMENT
See If This Product Fits Your Vehicle
- $3,099.95
- $3,099.95
$3,391.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Create the Ultimate Defender HD10 with GDP Portals
Enhance the performance of your Can-Am Defender HD10 with the SuperATV 6" Portal Gear Lift. The 6" lift combined with gear reduction increases torque and ground clearance while letting you run bigger tires without overloading the drivetrain. Choose between 30%, 45%, or 60% gear reduction based on your riding style. For extra durability, choose the billet aluminum housing instead of the cast housing. For maximum power, go with dual idler portals.

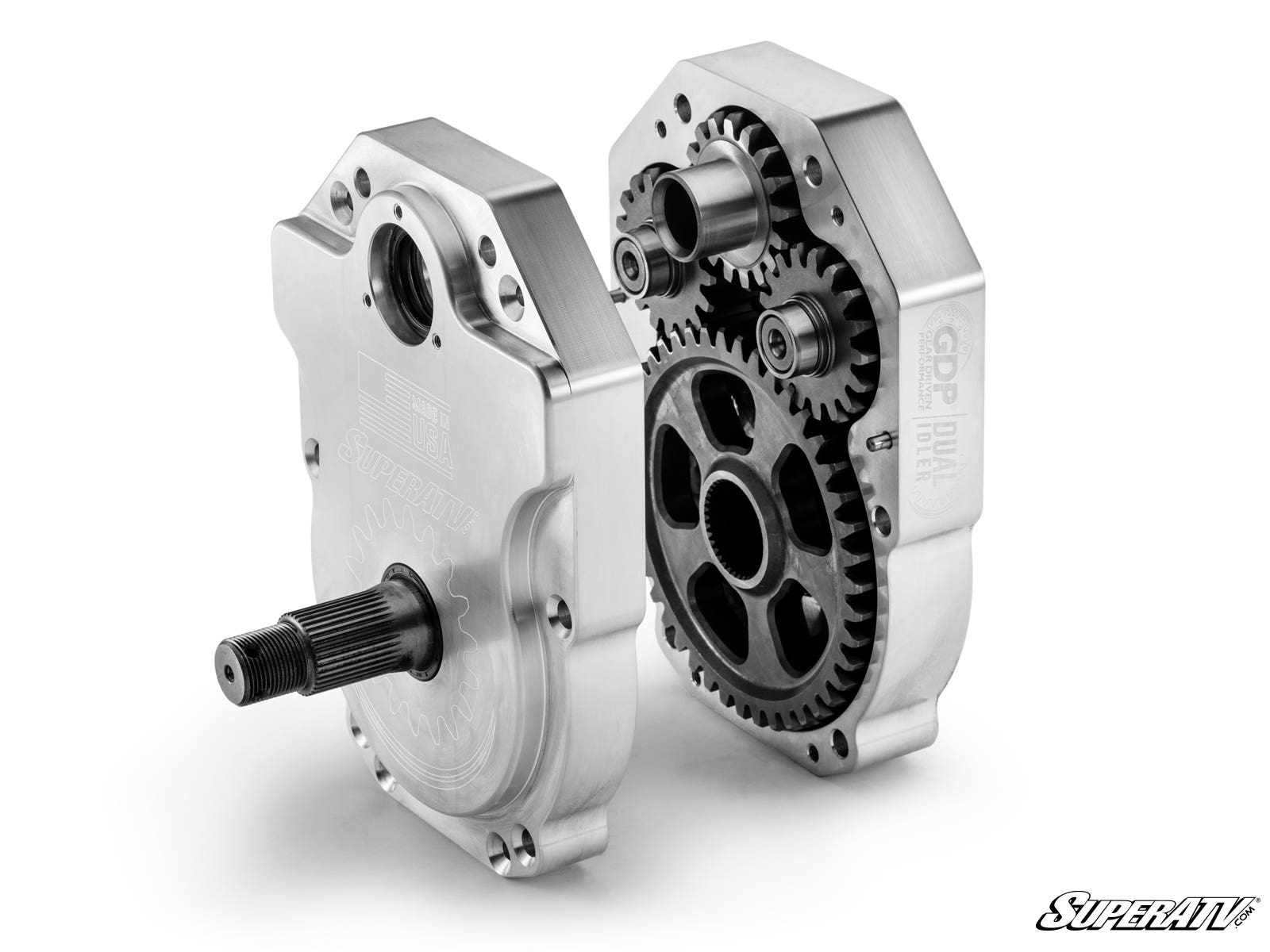

What is a Dual Idler?
By placing a second idler gear in the portal box, the load gets spread over twice as much surface area for more reliable torque transfer and a stronger gear set. Precision CNC grinding ensures the gears are properly mated, and they are made from 9310 steel alloy.
Dominate Tough Terrain
A 30% reduction provides higher speed while maintaining torque. For larger tires or challenging terrain, a 45% reduction increases torque. For maximum mud performance, a 60% reduction delivers extra force with dual idler gears.
Doesn’t Wear Out Your Drivetrain
GDP Portals move the gear reduction from the transmission to the wheel hubs, decreasing the load on your Defender HD10’s drivetrain. By reducing stress on axles, driveshaft, differential, and transmission, they help minimize wear and prevent costly mechanical issues over time.
Built to Last
Choose between cast or billet aluminum housings, paired with 5/16" heavy-duty backing plates crafted from advanced steel alloy. This setup is built to endure demanding conditions and comes with a lifetime warranty for added security.
- Reinforced housings for gear retention and optimized oil flow
- Advanced steel alloy backing plates stronger than chromoly
- Compatible with Portal Blood gear oil formulated for GDP Portals
- No vents, because vents do more harm than good
Advanced Gaskets, Seals, and Bearings
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- Sealed input gear and double-lipped output seal
- 100% sealing coverage throughout to help prevent oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
Add a Frame Stiffener
Enjoying portals and monster tires? Don’t forget that they add stress to your machine. Keep your suspension bulletproof with a SuperATV Frame Stiffener when you upgrade.
6" Portal Gear Lift Includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (6) Brake caliper mounts
- (2) Steel steering arms
- Extended brake lines with parking brake and brake cable brackets
- All required hardware including recessed castle nut socket
Max Tire Size Recommendations for 6" Portal Gear Lift
- 34" - 2" Forward Offset A-Arms
- 39" - 6" Lift Kit strongly recommended
If you need help figuring out which gear reduction is right for your riding style, check out our portal gear reduction calculator.
Max tire sizes are measured at full compression and full turn. The given tire sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.
Features
- Available with billet or cast aluminum housings
- Cool, quiet, precision ground gears made from 9310 alloy billet steel
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use advanced gaskets or O-rings that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Lighter than the competition
Fitment:
- Can-Am Defender HD 10 : 2016+
- Can-Am Defender HD 10 DPS : 2016+
- Can-Am Defender HD 10 Limited : 2020+
- Can-Am Defender HD 10 Mossy Oak : 2018+
- Can-Am Defender HD 10 PRO : 2020+
- Can-Am Defender HD 10 XT : 2016+
- Can-Am Defender HD 10 XT Cab : 2016+
- Can-Am Defender HD 10 XTP : 2018+
- Can-Am Defender HD 10 XMR : 2018+
- Can-Am Defender MAX HD 10 DPS : 2017+
- Can-Am Defender MAX HD 10 Limited : 2020+
- Can-Am Defender MAX HD 10 Lone Star Edition : 2018+
- Can-Am Defender MAX HD 10 XT : 2017+
- Can-Am Defender MAX HD 10 XT Cab : 2017+
- Can-Am Defender MAX HD 10 XMR : 2019+
Wheel Requirements:
- 18" or larger wheel required
- 18" wheels cannot exceed 4-1/2" backspacing
- 20" and larger wheels cannot exceed 5" backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
Note: Big Lift Kit or 2" Forward Offset A-Arms strongly recommended.
Product Specs
SKU:
PGH6-7-103-301
Brand:
SuperATV
