SuperATV Can-Am Defender HD10 RIDE System Rear Steering Kit
SKU:
RSA-CA-DEF-001A
SELECT FITMENT
See If This Product Fits Your Vehicle
- $4,563.95
- $4,563.95
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99

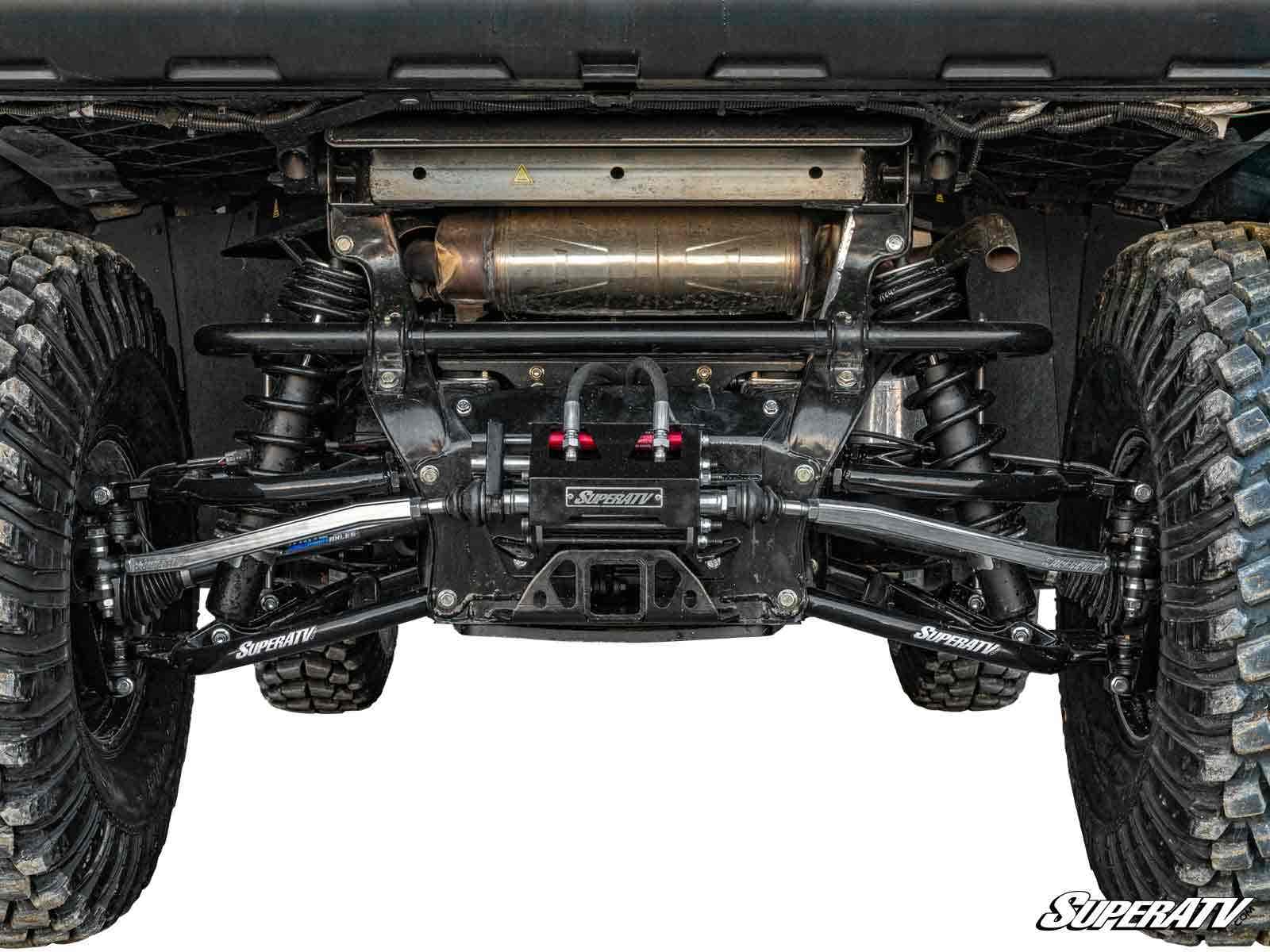

SuperATV’s RIDE System Rear Steering Kit for the Can-Am Defender HD10 gives you independent front and rear steering control for tighter maneuverability, crab walking, and more precise handling on tight trails. It can reduce turning radius by up to 30% and turn the rear wheels up to 12° for easier navigation in rocks, trees, mud, and other obstacles.
The system includes automatic and manual centering modes for simple operation. Use the wired, waterproof remote to control the rear wheels, and rely on the dash-mounted LED display to show rear steering angle. Automatic mode centers when you release the control stick, while manual mode recenters with the push of a button. For safety, the rear steer system autocenters over 30 MPH.
Built for demanding riding, this kit uses chromoly ball joints, housings, and pivot blocks, plus high-strength hub plates, billet aluminum tie rods with heavy-duty heim joints and inner ball-and-socket joints. The fully waterproof design is made to handle deep mud and water.
Kit includes:
- (4) A-arms with heavy-duty ball joints
- (2) Billet aluminum tie rods with heim joints and ball-and-socket joints
- (2) Hub plates
- Hydraulic steering cylinder
- Hydraulic pump
- Wired controller
- Wiring harness
- Mounting brackets
- Hydraulic tubing
- All hardware, including a cylinder wrench
- Heads-up LED display
- Waterproof rear-steer ECU
Features:
- Reduces turning radius by up to 30%
- Turn rear wheels up to 12°
- Fully waterproof design
- Magnetic remote attaches to cage or included dash mount
- Patent pending design
- Autocenters rear wheels at the push of a button
- Autocenters over 30 MPH for safety
- Dash-mounted LED display shows your rear turning angle
- Auto-calibrating center position
Fitment:
- Can-Am Defender HD 10: 2020+
- Can-Am Defender HD 10 DPS: 2020+
- Can-Am Defender HD 10 XT: 2020+
- Can-Am Defender HD 10 XTP: 2020+
- Can-Am Defender HD 10 Pro: 2020+
- Can-Am Defender MAX HD 10 DPS: 2020+
- Can-Am Defender MAX HD 10 XT: 2020+
Note: Not compatible with GDP 8" Portal Gear Lift with a 60% gear reduction.
Product Specs
SKU:
RSA-CA-DEF-001A
Brand:
SuperATV
