SuperATV Can-Am Defender HD11 4" Portal Gear Lift
SKU:
PGH-7-122-151
SELECT FITMENT
See If This Product Fits Your Vehicle
- $2,649.95
- $2,649.95
$2,994.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Take Your Defender HD11 to the Next Level with GDP Portals

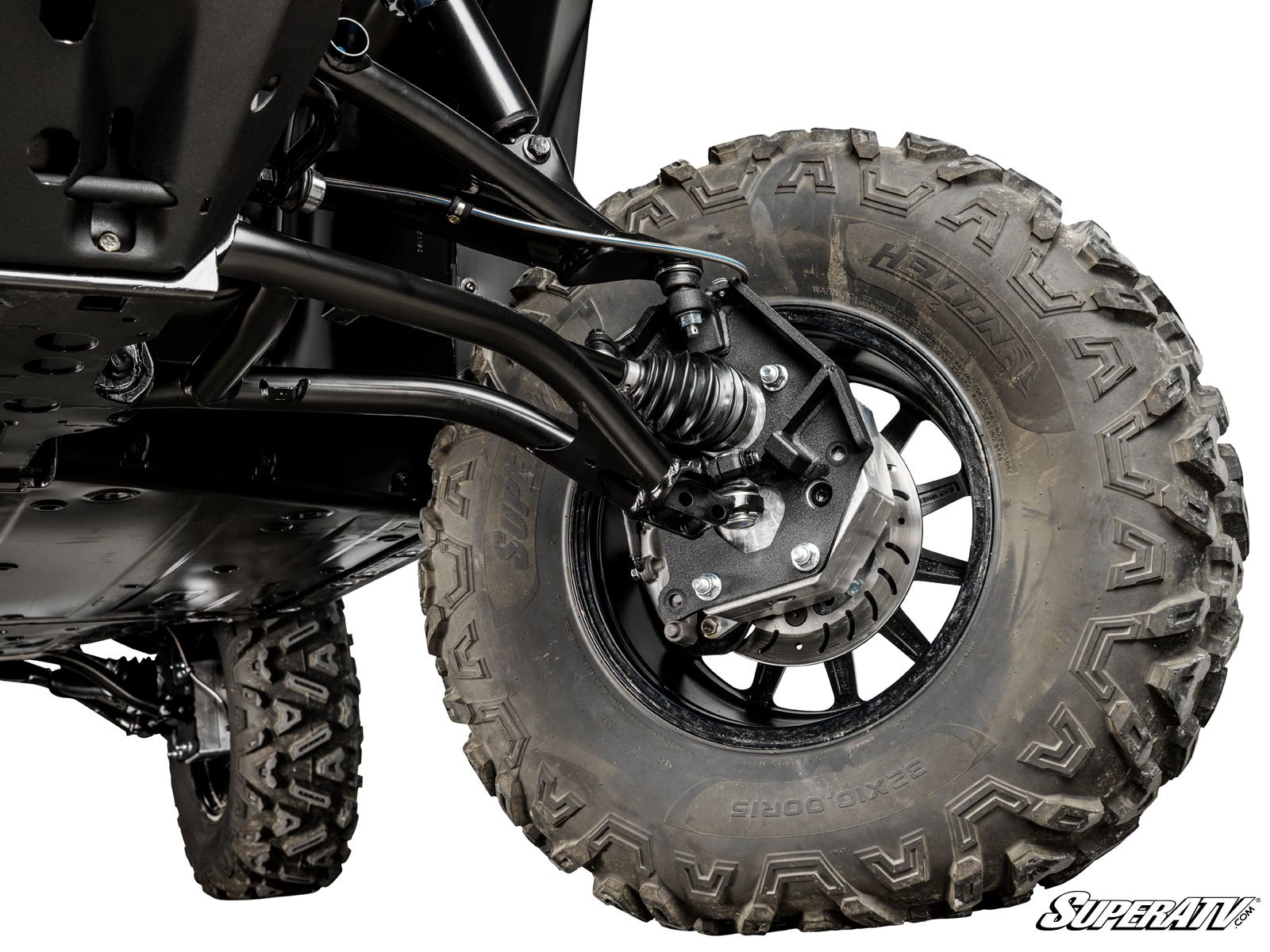

SuperATV’s 4" Portal Gear Lift for the Can-Am Defender HD11 combines 4 inches of lift with an integrated gear reduction for increased torque and ground clearance. It allows larger tires while reducing stress on the drivetrain. Gear reduction options include 15% or 30%, and the upgrade from cast to billet aluminum housing provides enhanced strength and durability for extreme conditions.
Choose a 15% gear reduction for faster, more aggressive riding, or a 30% reduction for extreme torque and massive tires. By relocating the gear reduction to the wheel hub, GDP portals absorb much of the workload before it reaches the drivetrain, helping protect axles, differentials, prop shafts, and transmissions from unnecessary stress caused by larger tires.
Our cast and billet aluminum housings are reinforced for gear retention and optimized for oil flow. Combined with 5/16" backing plates made from an advanced steel alloy, these portals are built for strength and durability. Additional features include cool, quiet, precision ground 9310 alloy billet steel gears, a 1.5 in. diameter 4340 hardened steel drive shaft, advanced gaskets or O-rings, a sealed input gear, a double-lipped output seal, double-angular contact output bearings, and roller idler and drive bearings for proper gear meshing.
- Available with billet or cast aluminum housing
- Advanced steel alloy backing plates are stronger than chromoly
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Lighter than the competition
- Enhance with Portal Blood gear oil formulated for GDP Portals
No matter where or how you ride, GDP Portal Gear Lifts deliver. Tear up dunes, dive into mud, fly through trails, or put your machine to work with confidence.
Portals and oversized tires deliver serious fun, but they also put extra strain on your machine’s frame. Strengthen your suspension setup by adding a SuperATV Frame Stiffener when installing your new HD11 portals.
4" Portal Gear Lift Includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, Thermo-Tork gaskets, and thrust bearings
- (4) Universal hubs and stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (6) Steel sleeves
- (12) Bushings
- (4) Shims
- Extended brake lines
- All required hardware, including recessed castle nut socket
Max Tire Size Recommendations for 4" Portal Gear Lift
- 32" max tire size with stock suspension
- Max tire sizes are measured at full compression and full turn
- The listed tire size is the largest fitment without rubbing; minor trimming or a small amount of rub may allow larger tires
If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator.
Fitment:
- Can-Am Defender HD 11 Limited: 2026+
- Can-Am Defender HD 11 XMR w/Half Doors: 2026+
- Can-Am Defender HD 11 XT: 2026+
- Can-Am Defender HD 11 XT Cab: 2026+
- Can-Am Defender MAX HD 11 XT Cab: 2026+
- Can-Am Defender MAX HD 11 XT: 2026+
- Can-Am Defender MAX HD 11 Limited: 2026+
- Can-Am Defender MAX HD 11 Lone Star: 2026+
- Can-Am Defender MAX HD 11 Lone Star Cab: 2026+
- Can-Am Defender MAX HD 11 XMR w/Half Doors: 2026+
Wheel Requirements:
- 14" or larger wheel required
- Wheels cannot exceed 4-1/2" backspacing
- Not compatible with dual beadlock wheels
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
Patent # 11,299,042Patent # 11,318,787
Product Specs
SKU:
PGH-7-122-151
Brand:
SuperATV
