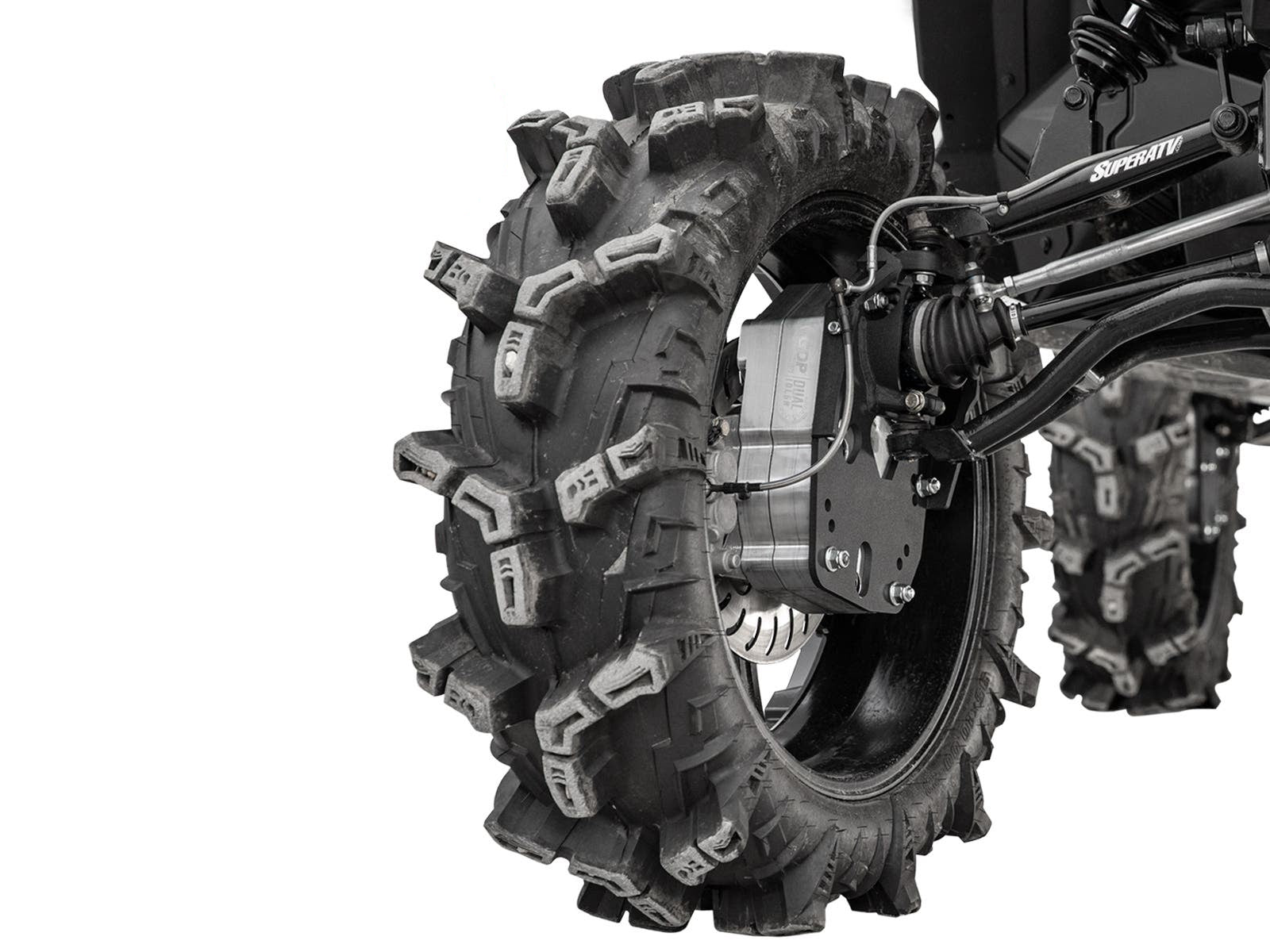

SuperATV Can-Am Maverick Sport 6" Portal Gear Lift
SKU:
PGH6-7-92-301#MS
SELECT FITMENT
See If This Product Fits Your Vehicle
- $3,099.95
- $3,099.95
$3,391.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Bigger Portals, Better PerformanceYou might think you know what your machine is capable of, but you haven’t seen anything until you’ve tried SuperATV’s Can-Am Maverick Sport 6" Portal Gear Lift. It gives you huge ground clearance and an impressive gear reduction to make your UTV bigger and more powerful than ever. With dual idler gears backed by GDP quality, you can’t be stopped.
What is a Dual Idler®?After years of research and development, these dual idler gear portals use a second idler gear in the portal box to spread the load over twice as much surface area for more reliable torque transfer and strength. Precision CNC grinding ensures the gears are mated perfectly. The gears are made from 9310 steel alloy.
Ride the Way You WantYou can choose between 30%, 45%, and 60% gear reductions to match the way you ride. Go with 30% for fast trail riding, 45% for mud and rocks, or 60% for massive tires and maximum pulling power.
A Gear Reduction That Protects Your DrivetrainGDP portals give you a gear reduction in the hub instead of the transmission, helping reduce wear on your axles, differential, prop shaft, and transmission. Portals also maintain factory suspension geometry to help keep your CVs cool.
Total StrengthThese Can-Am Maverick Sport portals are built for hard rides and tons of fun. They feature billet housings and advanced 5/16" steel alloy backing plates for maximum strength. Portals are reinforced for gear retention and optimized for oil flow. Advanced steel alloy backing plates are stronger than chromoly. There are no gimmicks and no vents because vents do more harm than good.
- Enhance with Portal Blood gear oil formulated for GDP Portals
- Reinforced housings for gear retention and optimized oil flow
- Advanced steel alloy backing plates
Advanced Gaskets, Seals, and BearingsThese portals use advanced gaskets and O-rings with excellent oil resistance and low deterioration rates, a sealed input gear and double-lipped output seal, and 100% sealing coverage to help prevent oil leaks. Double-angular contact output bearings help prevent premature wear, while roller idler and drive bearings maintain perfect gear meshing.
Top-Rate Customer ServiceYou get a dedicated portal tech support team with your purchase. If you need help, call and speak with a live team member.
- Available with billet or cast aluminum housings
- Dual idler gear configuration maximizes strength
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- 1.5" diameter 4340 hardened steel drive shaft
- Housings use advanced gaskets that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Dual idler gear configuration adds a 1" front and rear offset—2" total extension
- Lighter than the competition
6" Portal Gear Lift Includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (12) Rear backing plate bushings with sleeves
- Extended brake lines
- All required hardware, including recessed castle nut socket
Max Tire Size Recommendations for 6" Portal Gear Lift
- 40" tire size: Stock suspension
- 42" tire size: 1.5" Forward Offset A-Arms
Max tire sizes are measured at full compression and full turn. The given tire sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used. If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator.
Patent # 11,299,042Patent # 11,318,787
Fitment:
- Can-Am Maverick Sport 1000: 2019+
- Can-Am Maverick Sport 1000 DPS: 2019+
- Can-Am Maverick Sport 1000R DPS: 2019+
- Can-Am Maverick Sport 1000R DPS MAX: 2019+
- Can-Am Maverick Sport 1000R XRC: 2019+
- Can-Am Maverick Sport 1000R XMR: 2019+
- Can-Am Maverick Sport 1000R XXC: 2020+
Wheel Requirements:
- 18" or larger wheel required
- Wheels cannot exceed 4-1/2" backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
Product Specs
SKU:
PGH6-7-92-301#MS
Brand:
SuperATV
