SuperATV Can-Am Maverick Trail 4" Portal Gear Lift

SKU: PGH-7-74-151

SELECT FITMENT

See If This Product Fits Your Vehicle

$2,649.95
$2,649.95
$2,941.95

Free Shipping

Free ground shipping on all orders over $99
Portal Housing Material: Cast
Portal Gear Reduction: 15%
Description

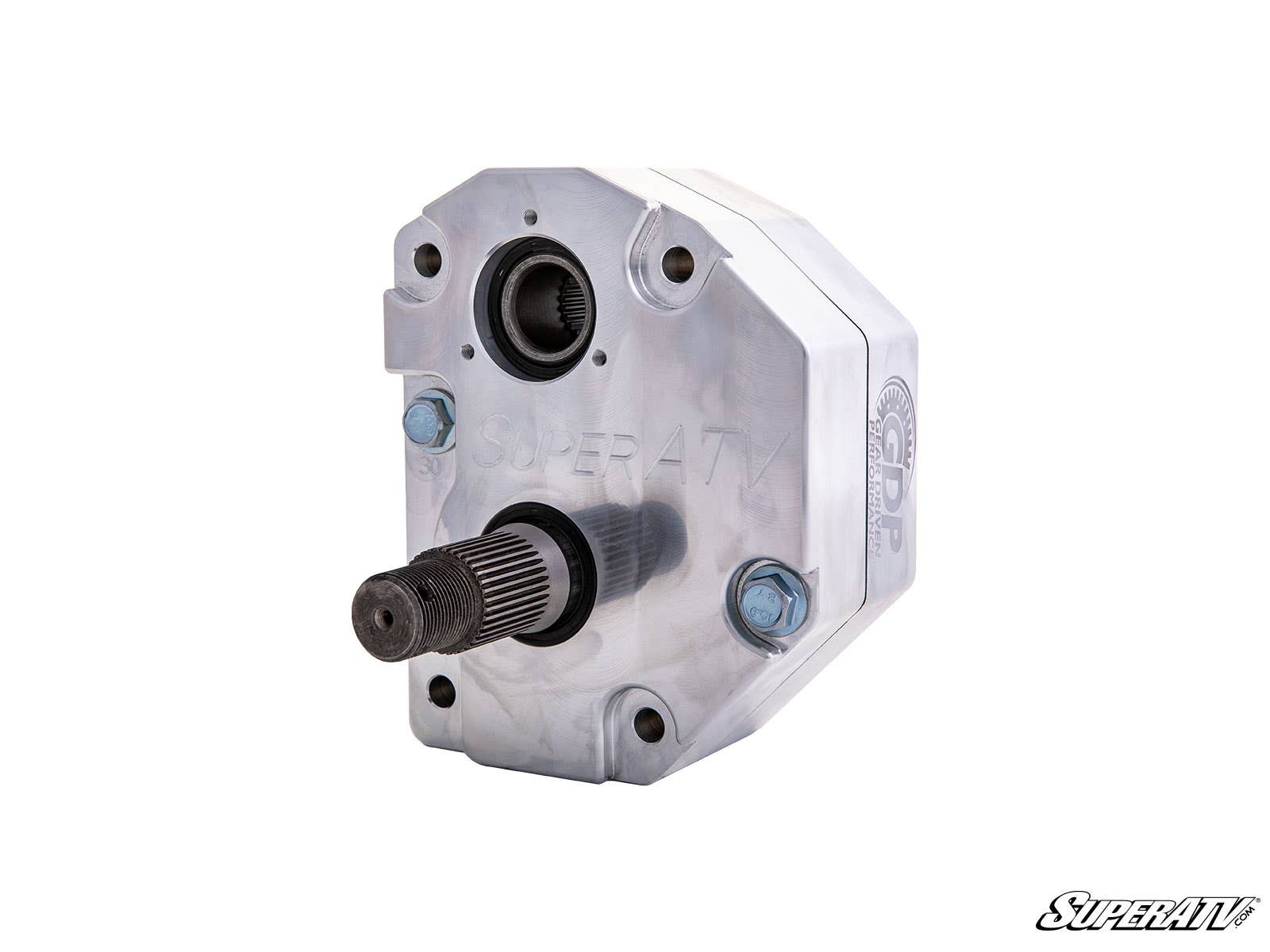

Gen 3 Portals are geared for all. SuperATV’s GDP 4" Portal Gear Lift for the Can-Am Maverick Trail is available with 15% or 30% gear reductions and cast or billet aluminum housings so you can tailor your setup to your riding style.

Choose a 30% gear reduction for more torque in bigger, sloppier mud holes and over rocks, or a 15% gear reduction for trails and dunes when you want to maintain speed while still gaining torque and clearance.

Our precision-ground gears are made from 9310 billet steel alloy for high strength, cool and quiet operation, and long-lasting performance. The housings are reinforced for strength and reliability, with improved oil flow and no vents. Whether you choose cast or USA-made CNC-machined 6061 billet aluminum, you get a durable portal housing built to handle hard riding.

Both housing options include advanced oil-resistant gaskets, a sealed input gear, a double-lipped output seal, and full sealing coverage to help reduce leaks. The portals also feature a 1.5" diameter 4340 hardened steel drive shaft and no-leak bearings and seals.

  • Available with billet or cast aluminum housing
  • Cool, quiet, precision-ground gears made from 9310 alloy billet steel
  • Increases width by 4" per side (8" total)
  • 1.5" diameter 4340 hardened steel drive shaft
  • No-leak bearings and seals
  • Universal hub fits all major bolt patterns
  • Comes complete with all hardware, backing plates, brake lines, and instructions

Can-Am Maverick Trail Portal Gear Reduction Recommendations

  • Up to 30" tires with stock suspension: 15%
  • Up to 30" tires with a 3" lift kit: 15%
  • Up to 30" tires with forward offset A-arms: 15%

Gear reductions listed are general guidelines to maintain factory top speed. Installing a larger than recommended gear reduction will result in extra torque and lower top speed. about how tire size and gear reduction can affect your machine’s performance.

Fitment:

  • Can-Am Maverick Trail 1000 : 2018+
  • Can-Am Maverick Trail 1000 DPS : 2018+
  • Can-Am Maverick Trail 800 : 2018+
  • Can-Am Maverick Trail 800 DPS : 2018+
  • Can-Am Maverick Trail 700 : 2022+
  • Can-Am Maverick Trail 700 DPS : 2022+

Wheel Requirements:

  • 14" or larger wheel required
  • Wheels cannot exceed 4" backspacing
  • Not compatible with dual beadlock wheels
  • Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer

Patent # 11,299,042

Fitment
Fitment

Product Specs

SKU:
PGH-7-74-151
Brand:
SuperATV
