SuperATV Can-Am Outlander 6" Lift Kit (Gen 2)
SKU:
LK-CA-OUT-GEN2-6-02
SELECT FITMENT
See If This Product Fits Your Vehicle
- $2,225.95
- $2,225.95
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99

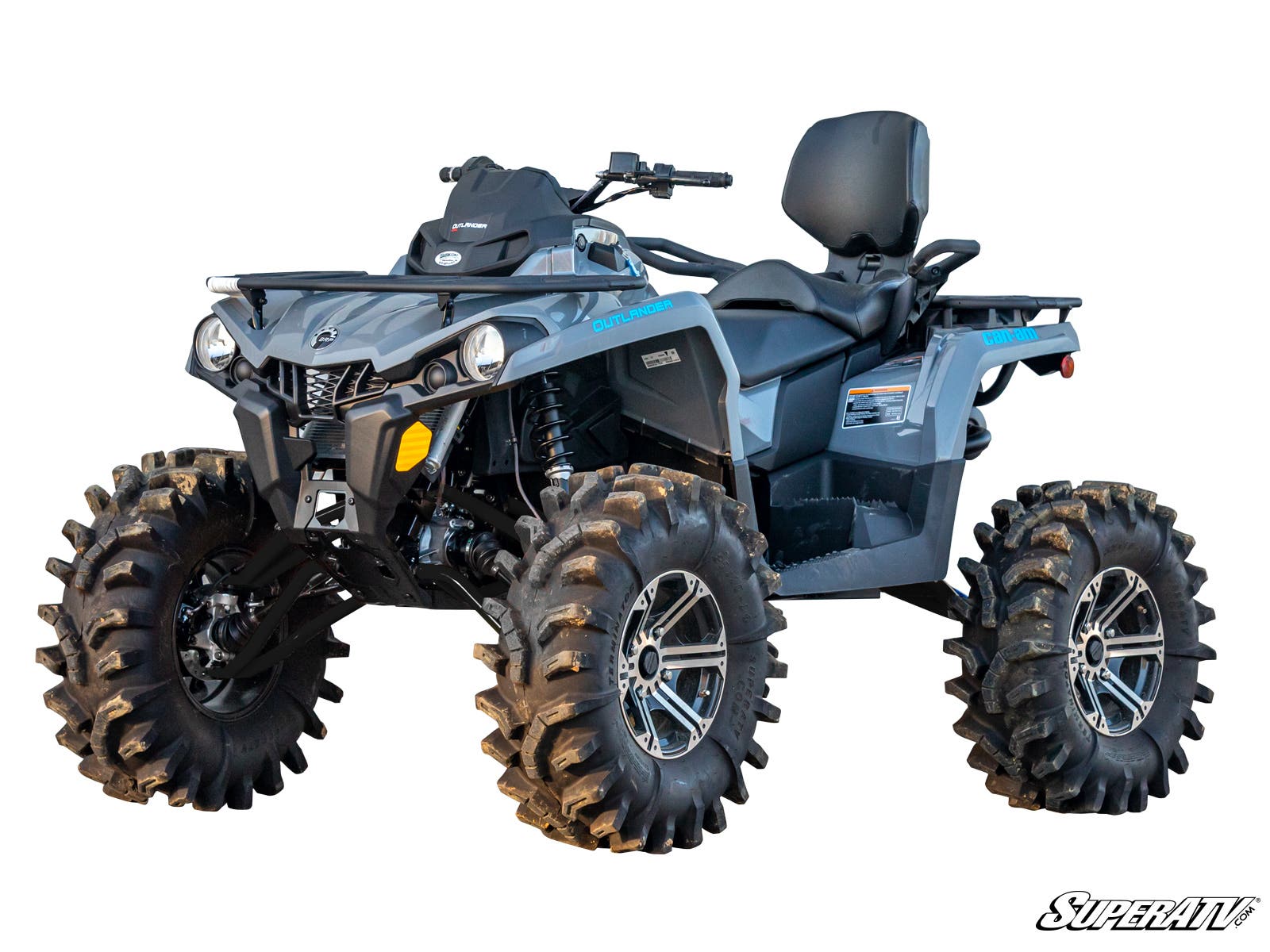

Get Wild with a 6” Lift
When you put SuperATV’s 6” Lift Kit on your Can-Am Outlander, you’ll be able to dominate any ride. With all-new suspension, a longer wheelbase, and room for massive tires, you’ll turn heads and tear up bounty holes everywhere you go.
- A true 6” lift
- Fit up to 36” tires
- Increases your Outlander’s wheelbase by 5.5”
- Includes chromoly steel A-arms and trailing arms
- Comes complete with extended Rhino Brand Axles
Between the 6” lift and the 5.5” longer wheelbase, you get room for up to 36” tires. You’ll have tons of ground clearance and loads of stability thanks to the extended wheelbase. Get crazy and take every bounty hole head-on.
A big lift kit needs beefed-up suspension. That’s why the A-arms use 1.25” chromoly steel tubing and the trailing arms use 1.5” chromoly steel tubing. Together, they help keep your machine strong no matter how hard you hit the throttle.
You get everything you need to get rolling, including heavy-duty, gusseted, Z-bend tie rods and chromoly steel Rhino Brand Axles. The extended axles are purpose-built for high articulation and heavy machines.
Kit Includes
- Front high-clearance 1.5” offset A-arms (chromoly)
- Rear 4” offset trailing arms (chromoly)
- (4) Rhino Brand Axles
- Heavy duty Z-bend tie rod kit
- Extended brake lines
- All hardware and installation instructions
Features
- Run up to 36” tires
- Front A-arms
- 1.25" thick DOM tubing
- 1.5" forward offset high-clearance
- Heavy-duty z-bend tie rods
- Rear trailing arms
- 4" rear offset for a smoother ride
- 1.5" DOM tubing for extreme strength
- Extended trailing arms include all bearings
- (4) Rhino Brand Axles, extended length
- 5" increased track width
Note: You must re-use your stock ball joints if you don’t select a pre-installed ball joint at checkout. Does not work with factory air shocks.
Fitment
- Can-Am Outlander 500 : 2013-2015
- Can-Am Outlander 500 DPS : 2013-2015
- Can-Am Outlander 500 XT : 2013-2015
- Can-Am Outlander L 500 : 2015
- Can-Am Outlander Max 500 : 2013-2015
- Can-Am Outlander L Max 500 : 2015
- Can-Am Outlander 570 : 2016-2018
- Can-Am Outlander 570 XMR : 2015-2018
- Can-Am Outlander Max 570 : 2017-2018
- Can-Am Outlander Pro 570 : 2017-2018
- Can-Am Outlander 650 : 2013-2018
- Can-Am Outlander 650 DPS : 2013-2018
- Can-Am Outlander 650 XT : 2013-2018
- Can-Am Outlander 650 XT-P : 2013-2018
- Can-Am Outlander 650 XMR : 2013-2015
- Can-Am Outlander Max 650 : 2013-2018
- Can-Am Outlander Max 650 DPS : 2013-2018
- Can-Am Outlander Max 650 XT : 2013-2018
- Can-Am Outlander Max 650 XT-P : 2013-2018
- Can-Am Outlander 800R : 2013-2015
- Can-Am Outlander 800R DPS : 2013-2015
- Can-Am Outlander 800R XT : 2013-2015
- Can-Am Outlander 800R XT-P : 2013-2015
- Can-Am Outlander Max 800R : 2013-2015
- Can-Am Outlander Max 800R DPS : 2013-2015
- Can-Am Outlander Max 800R XT : 2013-2015
- Can-Am Outlander Max 800R XT-P : 2013-2015
- Can-Am Outlander 850 : 2016-2018
- Can-Am Outlander 850 DPS : 2016-2018
- Can-Am Outlander 850 XT : 2016-2018
- Can-Am Outlander 850 XMR : 2016-2018
- Can-Am Outlander Max 850 : 2016-2018
- Can-Am Outlander 1000 : 2012-2018
- Can-Am Outlander 1000R XMR : 2013-2018
- Can-Am Outlander Max 1000 : 2012-2018
Product Specs
SKU:
LK-CA-OUT-GEN2-6-02
Brand:
SuperATV
