SuperATV Can-Am Renegade 6" Portal Gear Lift

SKU: PGH6-7-13-303#AB

SELECT FITMENT

See If This Product Fits Your Vehicle

$3,099.95
$3,099.95
$3,391.95

Free Shipping

Free ground shipping on all orders over $99
Do you have a lift kit?: I Have Stock or 2 inch Lift
Portal Setup: Cast Housing, 30% Gear Reduction
Would you like to add rear trailing arms?: No, I already have SATV trailing arms
Description

Get the Power and Performance Your Renegade NeedsTake on rough trails and challenging terrain with SuperATV's 6" GDP Portal Gear Lift for your Can-Am Renegade. It gives you 6 inches of lift, room for bigger tires, and your choice of a 30% or 45% gear reduction for the torque you need to conquer obstacles and turn massive tires.

  • Gives you a 6" lift kit and a gear reduction in one package
  • Choose a 30% or 45% gear reduction
  • Maintains OEM suspension angles

30% and 45% Gear Reductions Let You Do Almost AnythingSlap on these 6" portals, add massive tires, and let the built-in gear reduction boost your torque. A 30% reduction offers more top-end speed, while a 45% gear reduction delivers more torque for deep mud and fast acceleration.

GDP Portals Save Your DrivetrainGDP portals are more than a lift. Unlike a standard lift kit, they maintain factory suspension angles and put the gear reduction in the hub, reducing wear and tear on your drivetrain. It's the proper way to lift your ATV.

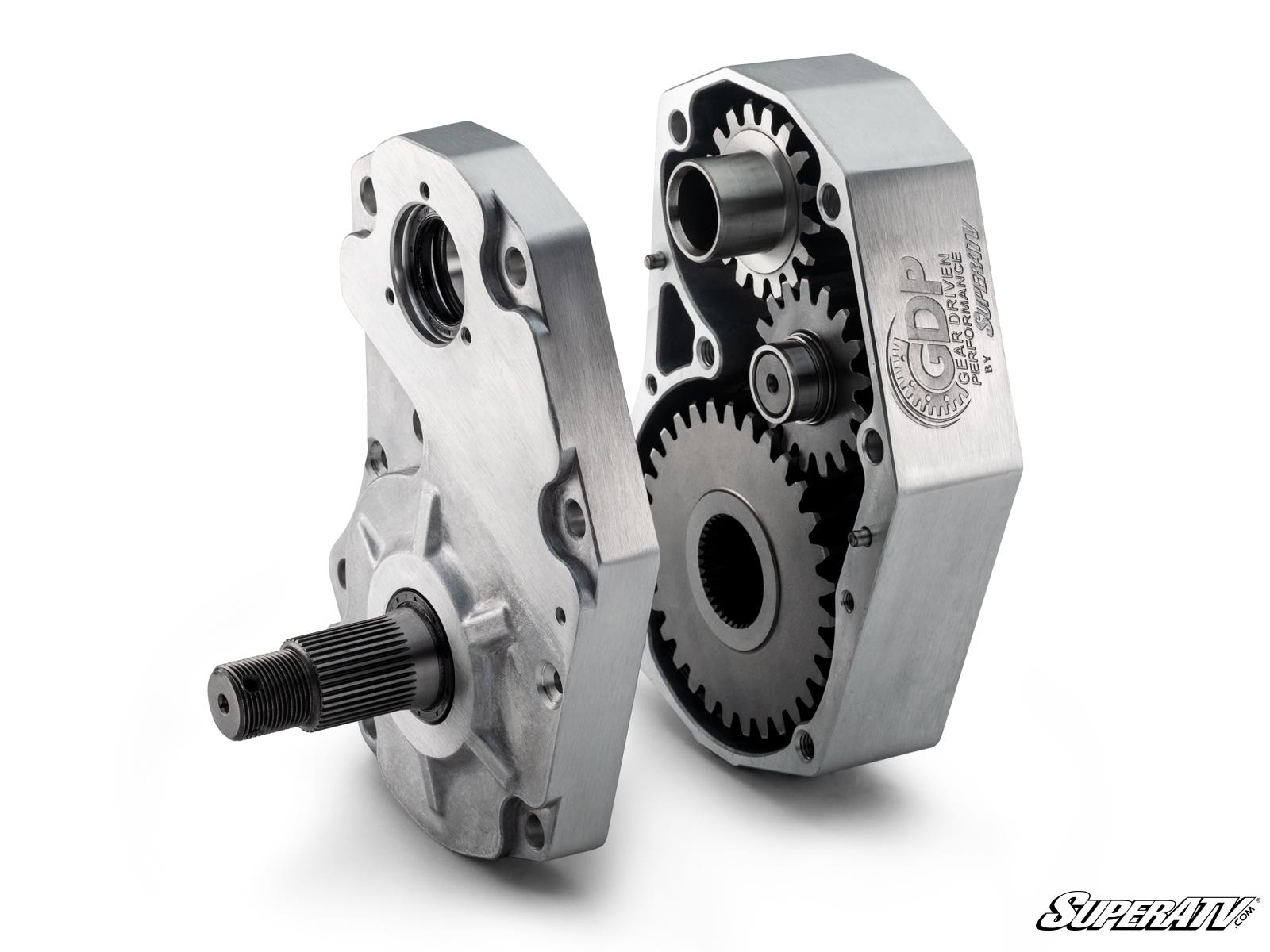

The Best Strength and ReliabilityBuilt to handle hard riding mile after mile, these portals feature cast and 6061 billet aluminum housings with advanced steel alloy backing plates for top-notch strength.

  • Reinforced housings for gear retention and optimized oil flow
  • Advanced steel alloy backing plates
  • Enhance with Portal Blood gear oil formulated for GDP Portals
  • No gimmicks and no vents

Advanced Gaskets, Seals, and Bearings

  • Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
  • Sealed input gear and double-lipped output seal
  • 100% sealing coverage throughout to help prevent oil leaks
  • Double-angular contact output bearings to prevent premature wear
  • Roller idler and drive bearings to maintain perfect gear meshing

Renegade 6" Portal Gear Lift Includes:

  • (4) Assembled portal hubs complete with 9310 gears, seals, output shaft, and thrust bearings
  • (4) Universal hubs and stainless steel slotted rotors with lugs
  • (4) Specialized steel alloy backing plates
  • (3) Steel caliper mounting plates
  • (3) Caliper mounting plate shims
  • (2) Steel steering arms
  • (2) Extended trailing arms, only if SATV trailing arms are not already installed
  • Extended brake lines
  • All required hardware, including recessed castle nut socket

Can-Am Renegade Portal Gear Max Tire Sizes

  • 28" — Stock w/ stock footwells*
  • 30" — 1.5" forward offset A-arms w/ stock footwells
  • 31" — Stock w/ SuperATV footwells
  • 34" — 1.5" forward offset A-arms w/ SuperATV footwells
  • 37" — 5" lift kit w/ stock footwells
  • 46" — 5" lift kit w/ SuperATV footwells

Max tire sizes are measured at full compression and full turn. The listed tire sizes are the largest fit without rubbing. With minor trimming, modified/aftermarket footwells, or a small amount of rub, larger tire sizes can be used.

If you need help figuring out which gear reduction is right for you, check out our .

Fitment

  • Can Am Renegade 570 : 2019+
  • Can Am Renegade 650 XMR : 2022+
  • Can Am Renegade 850 : 2019+
  • Can Am Renegade 850 XXC : 2019+
  • Can Am Renegade 1000 XMR : 2019+
  • Can Am Renegade 1000 XXC : 2019+

Wheel Requirements:

  • 18" or larger wheel required
  • 18" wheels cannot exceed 4-1/2" backspacing
  • 20" wheels cannot exceed 5" backspacing
  • Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer

Patent # 11,299,042
