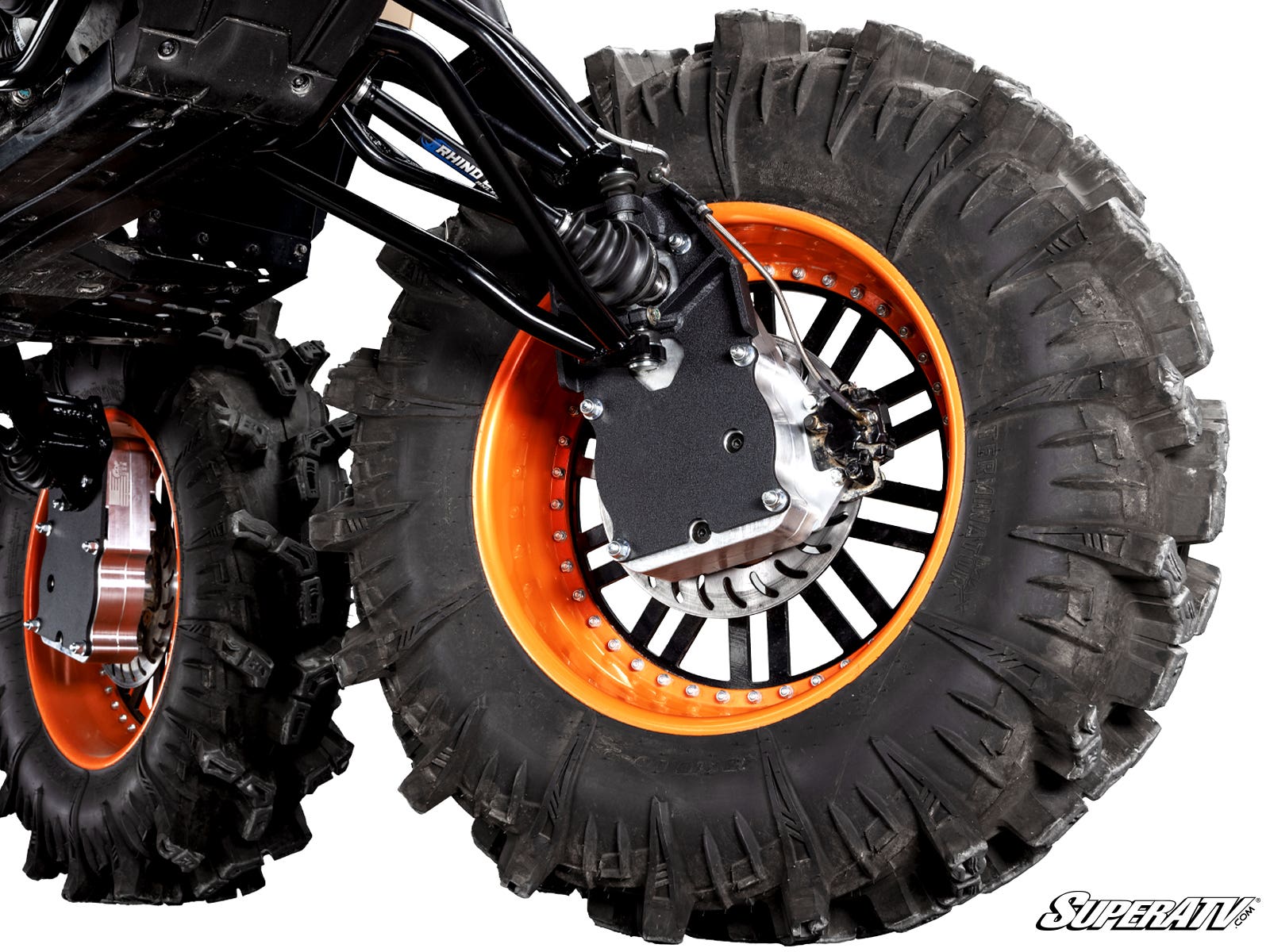

SuperATV Can-Am Renegade 8" Portal Gear Lift

SKU: PGH8-7-13-601

SELECT FITMENT

See If This Product Fits Your Vehicle

$4,499.95
$4,499.95
$4,981.95

Free Shipping

Free ground shipping on all orders over $99
Portal Housing Material: Cast
Would you like to add rear trailing arms?: No, I already have SATV trailing arms
Description

8" GDP Portals for the Can-Am Renegade

Transform your four-wheeler into an absolute monster with SuperATV’s Can-Am Renegade 8" Portal Gear Lift. You’ll be able to dominate mud, rocks, and other obstacles with strength and lift that seem almost impossible. The 60% gear reduction paired with your choice of cast or billet housing makes this a serious upgrade for your Renegade.

An Incredible Upgrade with a 60% Gear Reduction

When you’re diving into deep, thick mud, you can’t sacrifice power. The 60% gear reduction restores the low-end power that big tires typically take away. That means your Renegade will have the power to plow through deep mud even with huge, heavy tires.

Protects Your Drivetrain

With the gear reduction built into the wheel hub, GDP portals take the load off the rest of your drivetrain. They take on the tough work, helping protect parts like your axles, differential, driveshaft, and transmission from straining to move large tires.

GDP Portals are Unmatched

These 8" portals are built to handle abuse. Choose between cast or billet aluminum housings, both built for strength. Steel alloy backing plates add extra armor.

  • Housings are reinforced for gear retention and optimized for oil flow
  • Advanced steel alloy backing plates are stronger than chromoly
  • Enhance with — gear oil formulated for GDP Portals
  • There are no gimmicks and no vents because vents do more harm than good

Advanced Gaskets, Seals, and Bearings

  • Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
  • Sealed input gear and double-lipped output seal
  • 100% sealing coverage throughout to help prevent oil leaks
  • Double-angular contact output bearings to help prevent premature wear
  • Roller idler and drive bearings to maintain perfect gear meshing

Features

  • Available with billet or cast aluminum housings
  • Cool, quiet, precision-ground gears made from 9310 alloy billet steel
  • 1.5 in. forward and rear offset
  • 1.5 in. diameter 4340 hardened steel drive shaft
  • Housings use gaskets or O-rings that don’t let anything through
  • Universal hub fits all major bolt patterns
  • Gear reduction reduces stress on your drivetrain

Can-Am Renegade 8" Portal Gear Lift Includes:

  • (4) Assembled portal hubs complete with 9310 gears, seals, output shaft, advanced gaskets, and thrust bearings
  • (4) Universal hubs and stainless steel slotted rotors with lugs
  • (4) Specialized steel alloy backing plates
  • (4) Steel caliper mounting brackets
  • (16) Shims
  • (12) Rear A-arm bushings
  • (6) Steel sleeves
  • Extended brake lines
  • All required hardware, including recessed castle nut socket

Fitment

  • Can-Am Renegade 570 : 2019+
  • Can-Am Renegade 650 XMR : 2022+
  • Can-Am Renegade 850 : 2019+
  • Can-Am Renegade 850 XXC : 2019+
  • Can-Am Renegade 1000 XMR : 2019+
  • Can-Am Renegade 1000 XXC : 2019+

NOTE: This portal kit requires the use of SATV rear trailing arms.

Wheel Requirements:

  • 22" or larger wheel required
  • Wheels cannot exceed 4" backspacing
  • Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer

Max Tire Size

  • 32" — Stock suspension
  • 35" —
  • 39" —
  • 45" — Footwells + Lift Kit

If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator.

Max tire sizes are measured at full compression and full turn. The given tire sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.

Patent # 8,985,264, 11,015,681, 11,299,042, 11,554,662, 12,005,776
