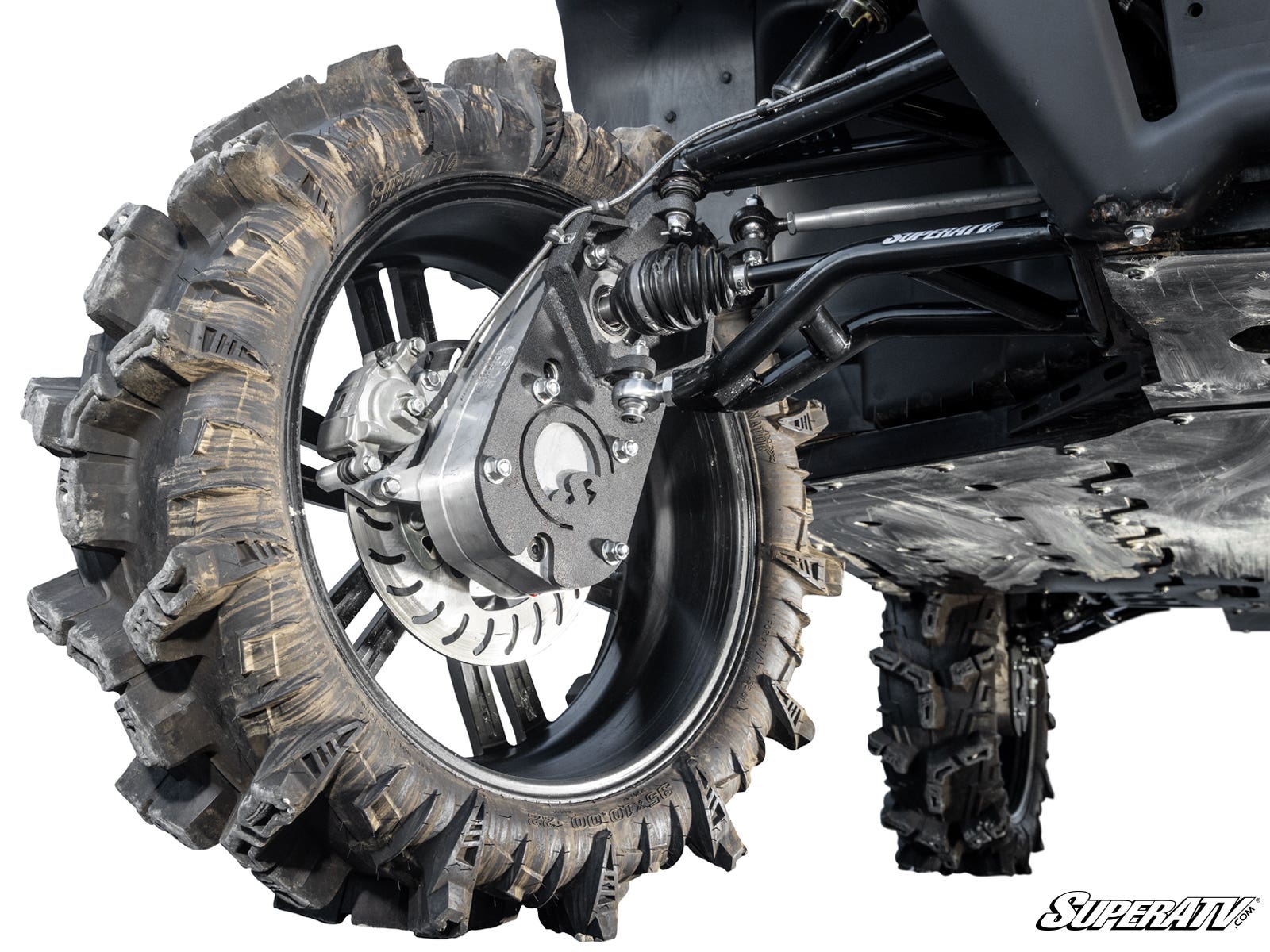

SuperATV CFMOTO UForce 1000 8" Portal Gear Lift
SKU:
PGH8-10-45-451
SELECT FITMENT
See If This Product Fits Your Vehicle
- $4,189.95
- $4,189.95
$4,653.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Make Your UForce a Mud MachineDominate the bog with SuperATV’s CFMOTO UForce 1000 8" Portal Gear Lift. Room for 33" tires and impressive torque from the gear reduction will make your UForce a swamp-ready rig. Choose a 45% or 60% gear reduction for serious power and mud performance.
When it’s time to tackle deep mud, gear reduction reclaims the lost torque needed to turn bigger tires. Our hub-based reduction helps protect your drivetrain by reducing stress on the differential, transmission, prop shaft, and axles.
GDP Portals are built for strength with reinforced housings, 5/16" backing plates made from an advanced steel alloy, and advanced sealing components for dependable performance. The housings are optimized for gear retention and oil flow, and the design uses no vents.
- Available with billet or cast aluminum housing
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use gaskets or O-rings
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Lighter than the competition
The portal system uses Advanced Thermo-Tork® gaskets and O-rings, a sealed input gear, a double-lipped output seal, double-angular contact output bearings, and roller idler and drive bearings to help maintain gear meshing and sealing coverage.
A frame stiffener is required because the extreme performance of 8" GDP Portals can put additional stress on the frame. Frame stiffener addition is only compatible with models with build dates prior to March 2022.
8" Portal Gear Lift Includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (4) Caliper adapter plates
- (2) Rear hub adapters
- (2) Steel steering arms
- Extended brake lines
- All required hardware, including recessed castle nut socket
CFMOTO UForce 1000 Max Tire Size Recommendations
- 33" tires: Stock suspension
- 36" tires: High Clearance 1.5" Forward Offset A-Arms
If you need help choosing the right gear reduction, use the portal gear reduction calculator. Max tire sizes are measured at full compression and full turn; larger tire sizes may fit with minor trimming or a small amount of rub.
Fitment:
- CFMOTO UForce 1000 : 2019+
- CFMOTO UForce 1000 XL : 2022+
Wheel Requirements:
- 22" or larger wheel required
- Wheels cannot exceed 5" backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
Patent # 11,299,042Patent # 11,318,787
Product Specs
SKU:
PGH8-10-45-451
Brand:
SuperATV
