SuperATV CFMOTO UForce U10 Pro 4" Portal Gear Lift
SKU:
PGH-10-116-151
SELECT FITMENT
See If This Product Fits Your Vehicle
- $2,649.95
- $2,649.95
$2,941.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99

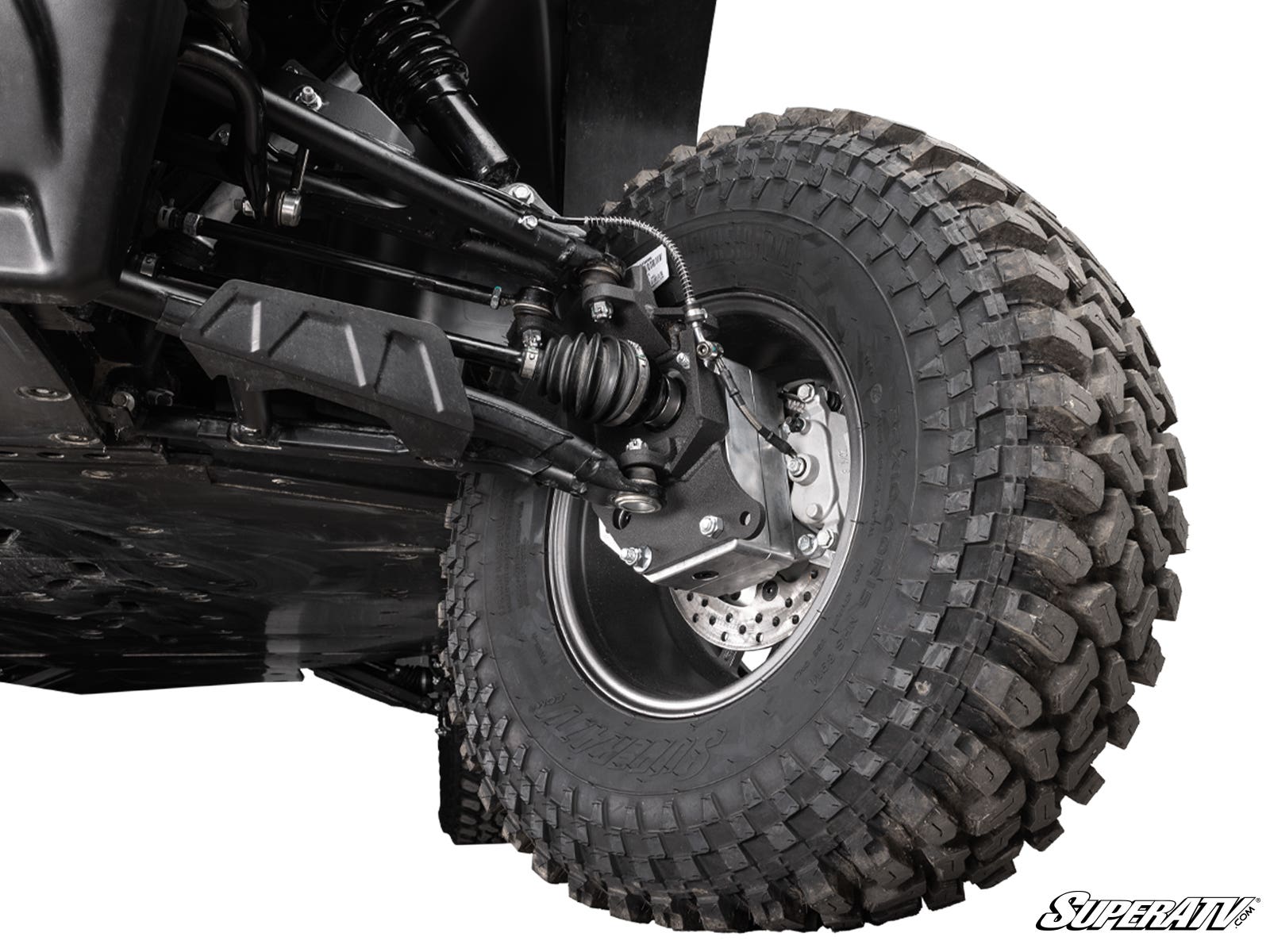

Turn your UForce U10 Pro into a true monster
If you ask any rock crawler or mud enthusiast how they dominate the terrain, chances are their answer will be GDP Portals. Turn your CFMOTO UForce U10 Pro into a true powerhouse with a SuperATV 4" Portal Gear Lift. This kit combines a lift and gear reduction in a single package, with your choice of 15% or 30% gear reduction and durable cast or billet housings for added strength.
Choose the 15% gear reduction for extra torque while maintaining speed for fast trails and dunes, or go with the 30% gear reduction to handle big tires, deep mud, and serious rock crawling with ease. By moving the gear reduction to the wheel hub, these portals take stress off your axles, differential, prop shaft, and transmission.
Built with cast or billet aluminum housings and steel alloy backing plates, these portals are made to handle tough riding. The housings are reinforced for gear retention and optimized for oil flow, and the advanced steel alloy backing plates are stronger than chromoly.
- Available with billet or cast aluminum housing
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- Increases width by 3.2" per side (6.4" total)
- 1.5" diameter 4340 hardened steel drive shaft
- No leak bearings and seals
- Universal hub fits all major bolt patterns
- Comes complete with all hardware, backing plates, brake lines, and instructions
Our portals also use advanced gaskets and O-rings with excellent oil resistance and low deterioration rates, a sealed input gear, a double-lipped output seal, and 100% sealing coverage to help prevent oil leaks. Double-angular contact output bearings help prevent premature wear, while roller idler and drive bearings help maintain perfect gear meshing.
For support choosing the right setup, our technical team is available to help.
CFMOTO UForce U10 Pro 4" Portal Gear Lift includes:
- (4) Assembled portal hubs complete with 9310 gears, seals, output shaft, advanced gaskets, and thrust bearings
- (4) Universal hubs and stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (2) Front caliper adapters
- (2) Rear caliper adapters
- (12) Shims
- (4) Drive gear spacers
- Upper and lower A-arm mount assemblies
- Extended brake lines
- All required hardware, including recessed castle nut socket
Max tire size and suspension:
- 28" max tire size with stock suspension
- 32" max tire size with
Max tire sizes are measured at full compression and full turn. The listed tire sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.
Fitment:
- CFMOTO U10 Pro : 2025+
- CFMOTO U10 Pro Highland : 2025+
- CFMOTO U10 Pro XL : 2025+
- CFMOTO U10 Pro XL Highland : 2025+
Wheel requirements:
- 14" or larger wheel required
- Wheels cannot exceed 5" backspacing
- Not compatible with dual beadlock wheels
Product Specs
SKU:
PGH-10-116-151
Brand:
SuperATV
