SuperATV CFMOTO UForce U10 Pro 6" Portal Gear Lift
SKU:
PGH6-10-116-301
SELECT FITMENT
See If This Product Fits Your Vehicle
- $3,099.95
- $3,099.95
$3,391.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99

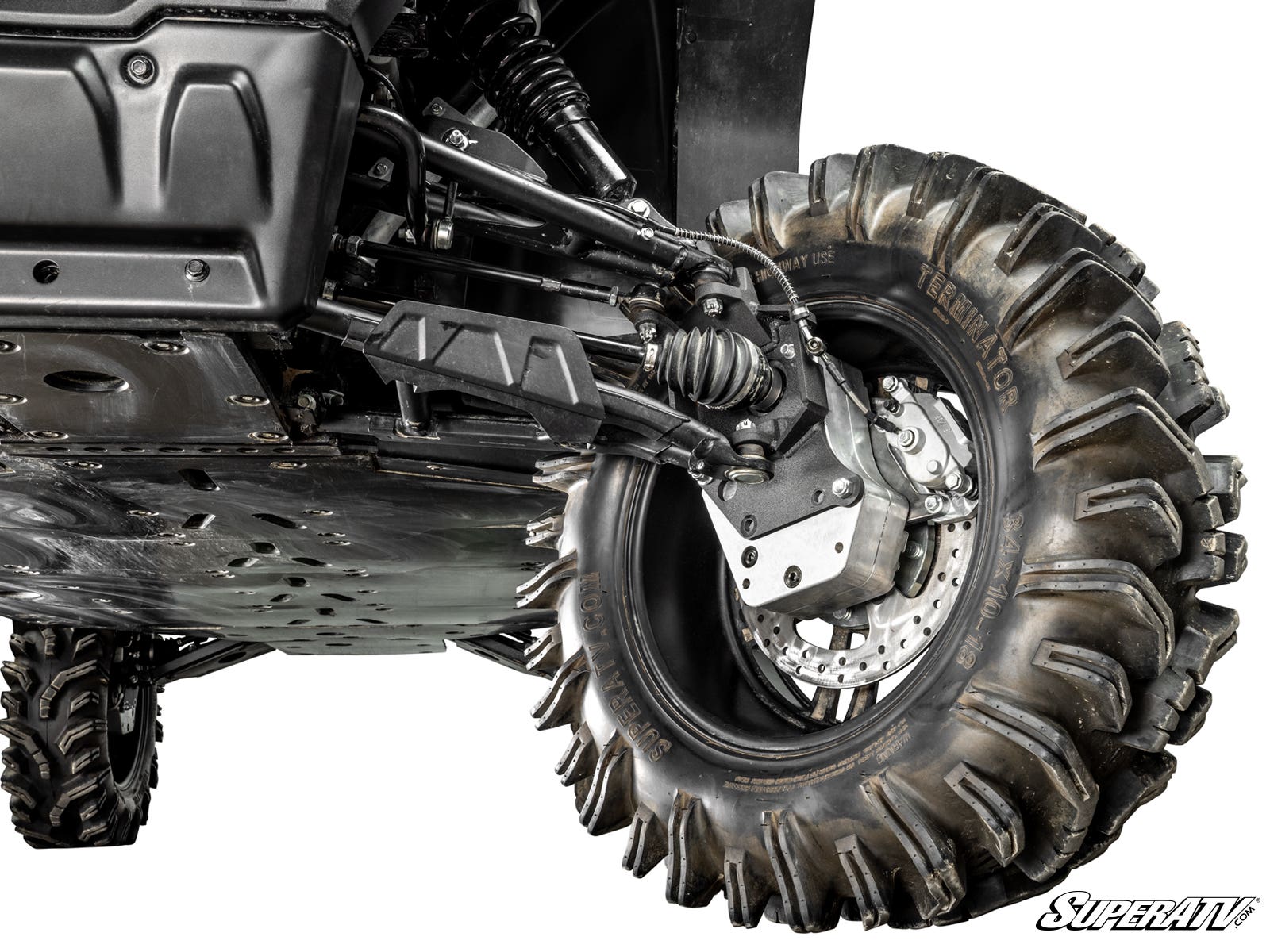

Beef Up Your UForce U10 Pro with GDP Portals
SuperATV’s 6" Portal Gear Lift gives your CFMOTO UForce U10 Pro a lift and gear reduction in one kit. Choose a 30% or 45% gear reduction for the torque and performance you need, with either cast or billet housings for added strength.
Choose the 30% reduction for extra torque while keeping speed on trails and dunes. If you need serious power for big tires, mud, or rocks, the 45% reduction is the better choice. Built to help protect your drivetrain, the gear reduction at the hub reduces strain on your axles, differential, prop shaft, and transmission.
Available with cast or billet aluminum housing, these portals are built for hard riding. They feature reinforced housings for gear retention and optimized oil flow, advanced steel alloy backing plates, and no vents. Advanced gaskets, O-rings, sealed input gear, double-lipped output seal, and double-angular contact output bearings help improve sealing and reduce wear.
- Cool, quiet, precision-ground 9310 alloy billet steel gears
- Increases width by 3.2" per side (6.4" total)
- 1.5" diameter 4340 hardened steel drive shaft
- No leak bearings and seals
- Universal hub fits all major bolt patterns
- Includes all required hardware, backing plates, brake lines, and instructions
CFMOTO UForce U10 Pro 6" Portal Gear Lift Includes:
- (4) Assembled portal hub complete with 9310 gears, seals, output shaft, advanced gaskets, and thrust bearings
- (4) Universal hubs and stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (2) Front caliper adapters
- (2) Rear caliper adapters
- (12) Shims
- (4) Drive gear spacers
- Upper and lower A-arm mount assemblies
- Extended brake lines
- All required hardware, including recessed castle nut socket
Fitment:
- CFMOTO U10 Pro: 2025+
- CFMOTO U10 Pro Highland: 2025+
- CFMOTO U10 Pro XL: 2025+
- CFMOTO U10 Pro XL Highland: 2025+
Wheel requirements:
- 18" or larger wheel required
- 18" wheels cannot exceed 4-1/2" backspacing
- 20" and larger wheels cannot exceed 5" backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
Max tire size is measured at full compression and full turn. The given tire sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.
Max tire size by suspension:
- 32" with stock suspension
- 34" with
If you need help figuring out which gear reduction is right for you, check out our .
Product Specs
SKU:
PGH6-10-116-301
Brand:
SuperATV
