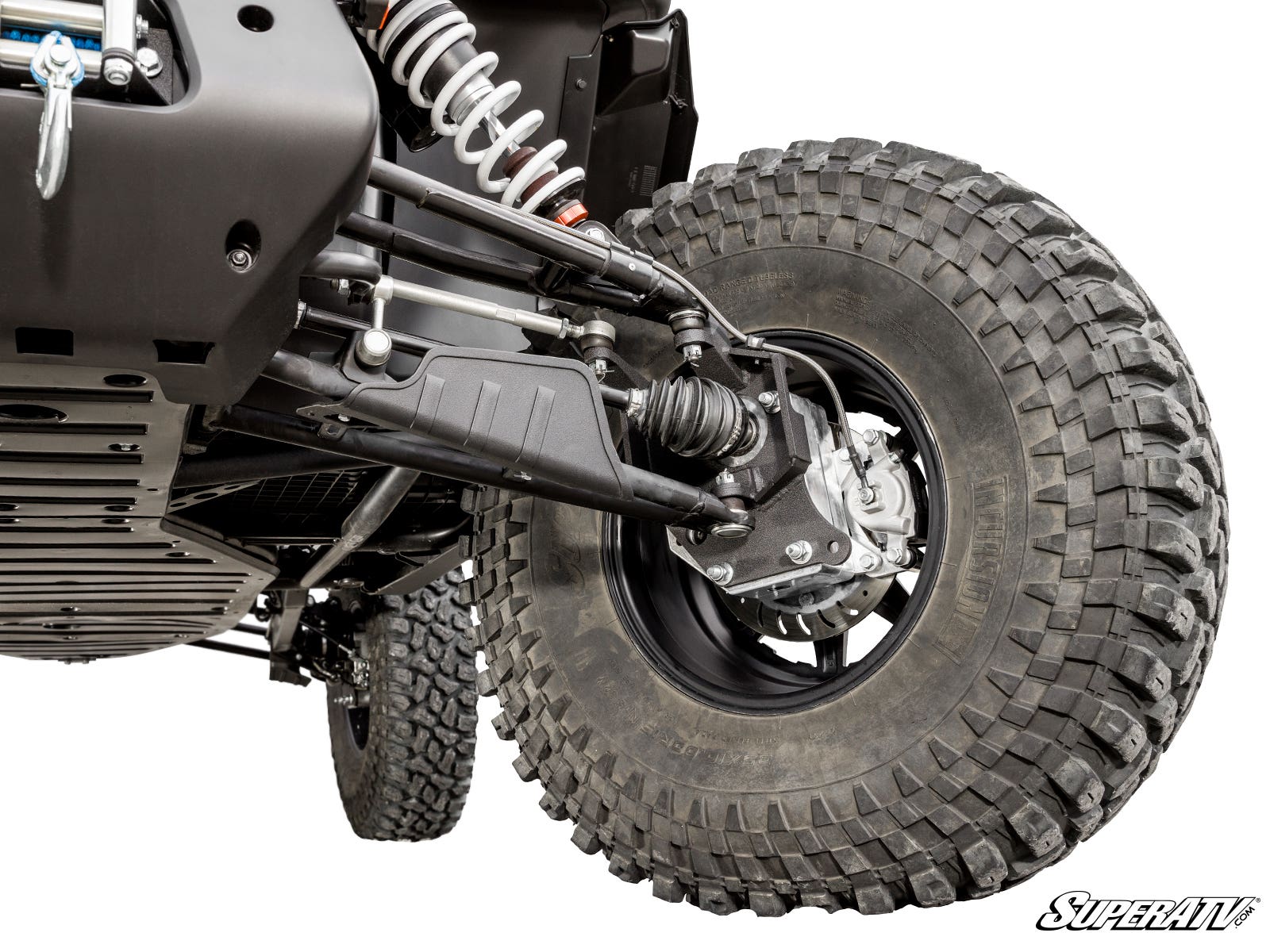

SuperATV CFMOTO ZForce 950 HO 4" Portal Gear Lift
SKU:
PGH-10-111-151
SELECT FITMENT
See If This Product Fits Your Vehicle
- $2,649.95
- $2,649.95
$2,994.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Get the power you need to dominate any terrain with this CFMOTO ZForce 950 HO 4" Portal Gear Lift. It combines a gear reduction and 4" lift to improve performance, with a choice of 15% or 30% gear reduction depending on your riding style. For maximum strength, billet aluminum is available as an upgrade from cast aluminum.
With the right reduction, you can improve acceleration and low-end torque without sacrificing performance. A 15% gear reduction is a good choice when you want stronger low-end pull and want to maintain top speed, while a 30% gear reduction is ideal for larger tires and muddy terrain. By moving the gear reduction into the wheel hub instead of the transmission, portals help reduce stress on the axles, prop shaft, differential, and transmission.
Built for durability, the portal housings are made from cast or 6061 billet aluminum and pair with 5/16" backing plates made from advanced steel alloy. Features include reinforced housings for gear retention and optimized oil flow, advanced gaskets and O-rings with strong oil resistance, a sealed input gear, double-lipped output seal, double-angular contact output bearings, and roller idler and drive bearings for proper gear meshing.
Features include:
- Available with billet or cast aluminum housing
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- Increases width by 4" per side (8" total)
- 1.5" diameter 4340 hardened steel drive shaft
- No leak bearings and seals
- Universal hub fits all major bolt patterns
- Comes complete with all hardware, backing plates, brake lines, and instructions
Includes:
- (4) Assembled portal hubs complete with 9310 gears, seals, output shaft, advanced gaskets, and thrust bearings
- (4) Universal hubs and stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (1) Front caliper adapter
- (1) Rear caliper adapter
- (6) Shims
- (1) Short left front brake line
- (1) Long right front brake line
- (2) Rear brake line extensions
- (1) Short left front parking brake
- (1) Long right front parking brake
- All required hardware, including recessed castle nut socket
Max tire size recommendations for 4" portal gear lift:
- 32" with stock suspension and OEM nerf bar
- 36" with stock suspension without OEM nerf bar
- 36" with SATV forward A-arms and OEM nerf bar
- 39" with SATV forward A-arms without OEM nerf bar
If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator.
Fitment:
- CFMOTO ZForce 950 HO EX: 2023+
Wheel requirements:
- 14" or larger wheel required
- Wheels cannot exceed 5" backspacing
- Not compatible with dual beadlock wheels
- Wheels need to have a center hole of at least 3.25" (82.55 mm) or require a 1" wheel spacer
Patent # 11,299,042Patent # 11,318,787
Product Specs
SKU:
PGH-10-111-151
Brand:
SuperATV
