SuperATV CFMOTO ZForce 950 Sport 4" Portal Gear Lift

SKU: PGH-10-118-151

SELECT FITMENT

See If This Product Fits Your Vehicle

$2,649.95
$2,649.95
$2,941.95

Free Shipping

Free ground shipping on all orders over $99
Model: Standard
Portal Housing Material: Cast
Portal Gear Reduction: 15%
Description

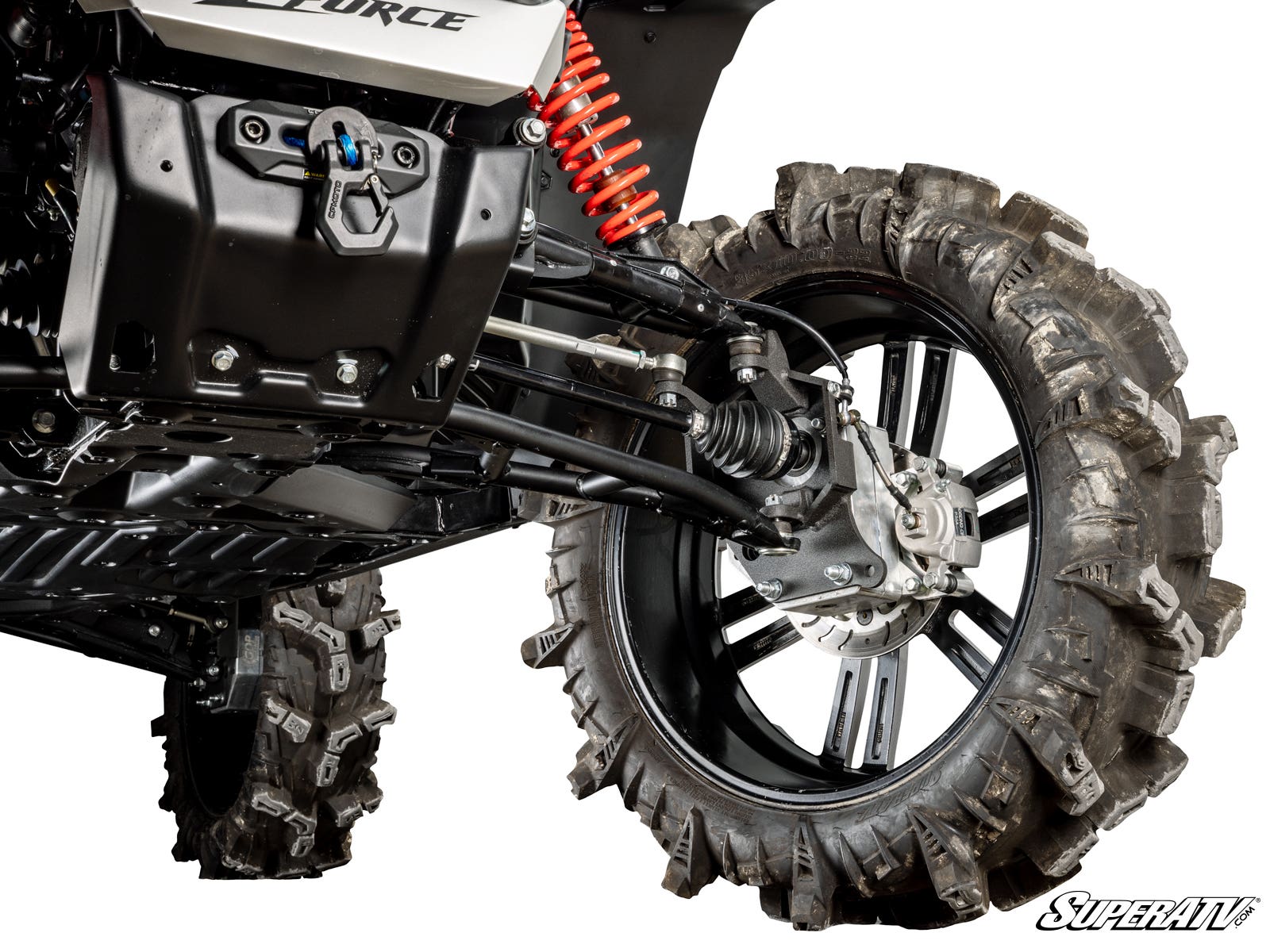

Redefine your CFMOTO ZForce with GDP Portals from SuperATV. This 4" Portal Gear Lift combines lift and gear reduction in one package for improved performance in mud, dunes, racing, trail riding, and more. Choose either a 15% or 30% gear reduction, along with cast or billet housings, to build your ZForce 950 Sport the way you want.

A 15% reduction adds torque while helping you keep speed for fast trails and dunes. The 30% reduction is better for big tires, deep mud, and serious rock crawling. GDP Portals are built for durability with reinforced housings for gear retention and optimized oil flow, plus 5/16" advanced steel alloy backing plates. There are no vents, since they can do more harm than good.

These portals use Advanced Thermo-Tork® gaskets and O-rings for oil resistance and low deterioration rates, a sealed input gear, a double-lipped output seal, 100% sealing coverage to help prevent leaks, double-angular contact output bearings to prevent premature wear, and roller idler and drive bearings to maintain proper gear meshing.

Features include cool, quiet, precision-ground 9310 alloy billet steel gears, a 1.5" diameter 4340 hardened steel drive shaft, no-leak bearings and seals, and a universal hub that fits all major bolt patterns. The kit increases width by 4" per side, 8" total, and comes complete with all hardware, backing plates, brake lines, and instructions.

Included:

  • (4) Assembled portal hubs complete with 9310 gears, seals, output shaft, advanced gaskets, and thrust bearings
  • (4) Universal hubs and stainless steel slotted rotors with lugs
  • (4) Specialized steel alloy backing plates
  • (4) Steel caliper mounting plates
  • (2) Front caliper adapters
  • (2) Rear caliper adapters
  • (8) Shims
  • Upper and lower A-arm mount assemblies
  • Extended brake lines
  • All required hardware, including recessed castle nut socket

Max tire size: 35" with stock suspension. Max tire sizes are measured at full compression and full turn; larger tires may fit with minor trimming or a small amount of rub.

If you need help choosing the right gear reduction, use the .

Fitment:

  • CFMOTO ZForce 950 Sport: 2023+
  • CFMOTO ZForce 950 Sport 4: 2023+

Wheel requirements:

  • 14" or larger wheel required
  • Wheels cannot exceed 5" backspacing
  • Not compatible with dual beadlock wheels
  • Wheels need a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer

For gear oil formulated for GDP Portals, use Portal Blood.
