SuperATV CFMOTO ZForce 950 Sport 6" Portal Gear Lift
SKU:
PGH6-10-118-301
SELECT FITMENT
See If This Product Fits Your Vehicle
- $3,099.95
- $3,099.95
$3,391.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99

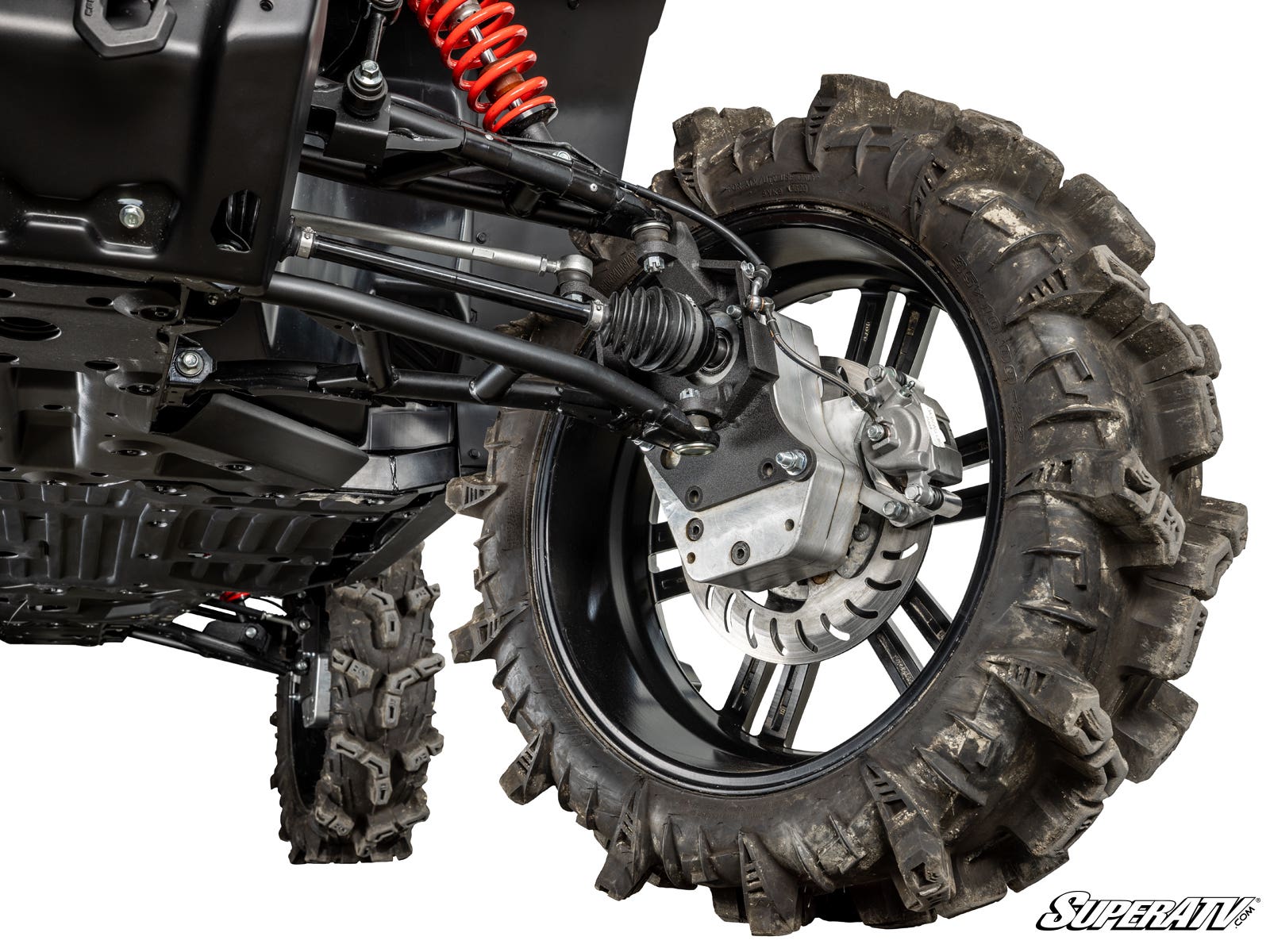

Turn your CFMOTO ZForce 950 Sport into a powerhouse with SuperATV’s 6" GDP Portal Gear Lift. These portals feature a built-in gear reduction and a full 6" lift for more torque, more clearance, and the ability to run massive tires. Choose a 30% or 45% gear reduction, and upgrade from cast to billet aluminum portal housings for maximum strength.
Whether you’re tackling mud pits, rock gardens, or steep trails, these portals deliver the performance you need. The 30% gear reduction boosts torque without sacrificing top speed, making it a balanced option. For oversized tires and maximum pulling power, the 45% gear reduction is ideal for mud and rocks.
By moving the reduction to the hub instead of the transmission, GDP Portals help take stress off your axles, prop shaft, differential, and transmission. That means less drivetrain strain, greater durability, and fewer costly repairs.
Built to handle the toughest rides, these portals are available with cast or 6061 billet aluminum housings paired with 5/16" advanced steel alloy backing plates. They also feature cool, quiet, precision-ground 9310 alloy billet steel gears, a 1.5" diameter 4340 hardened steel drive shaft, and no-leak bearings and seals.
- Available with billet or cast aluminum housing
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- Increases width by 3" per side (6" total)
- 1.5" diameter 4340 hardened steel drive shaft
- No leak bearings and seals
- Universal hub fits all major bolt patterns
- Comes complete with all hardware, backing plates, brake lines and instructions
The portals use advanced gaskets and O-rings with excellent oil resistance and low deterioration rates, plus a sealed input gear, double-lipped output seal, double-angular contact output bearings, and roller idler and drive bearings for lasting performance and smooth gear meshing. The housings are reinforced for gear retention and optimized for oil flow.
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- Sealed input gear and double-lipped output seal
- 100% sealing coverage throughout to help prevent oil leaks
- Double-angular contact output bearings to help prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
- Reinforced housings for gear retention and optimized oil flow
- Advanced steel alloy backing plates are stronger than chromoly
- Enhance with Portal Blood gear oil formulated for GDP Portals
Includes:
- (4) Assembled portal hubs complete with 9310 gears, seals, output shaft, advanced gaskets, and thrust bearings
- (4) Universal hubs and stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (2) Front caliper adapters
- (2) Rear caliper adapters
- (4) A-arm mounts
- (8) Shims
- Extended brake lines
- All required hardware, including recessed castle nut socket
Max tire size: 36" with stock suspension
Wheel requirements: 18" or larger wheel required. 18" wheels cannot exceed 5" backspacing. 20" and larger wheels cannot exceed 5" backspacing. Wheels need a center hole of at least 3.25" (82.55 mm) or require a 1" wheel spacer.
Fitment:
- CFMOTO ZForce 950 Sport: 2023+
- CFMOTO ZForce 950 Sport 4: 2023+
If you need help figuring out which gear reduction is right for you, check out our .
Product Specs
SKU:
PGH6-10-118-301
Brand:
SuperATV
