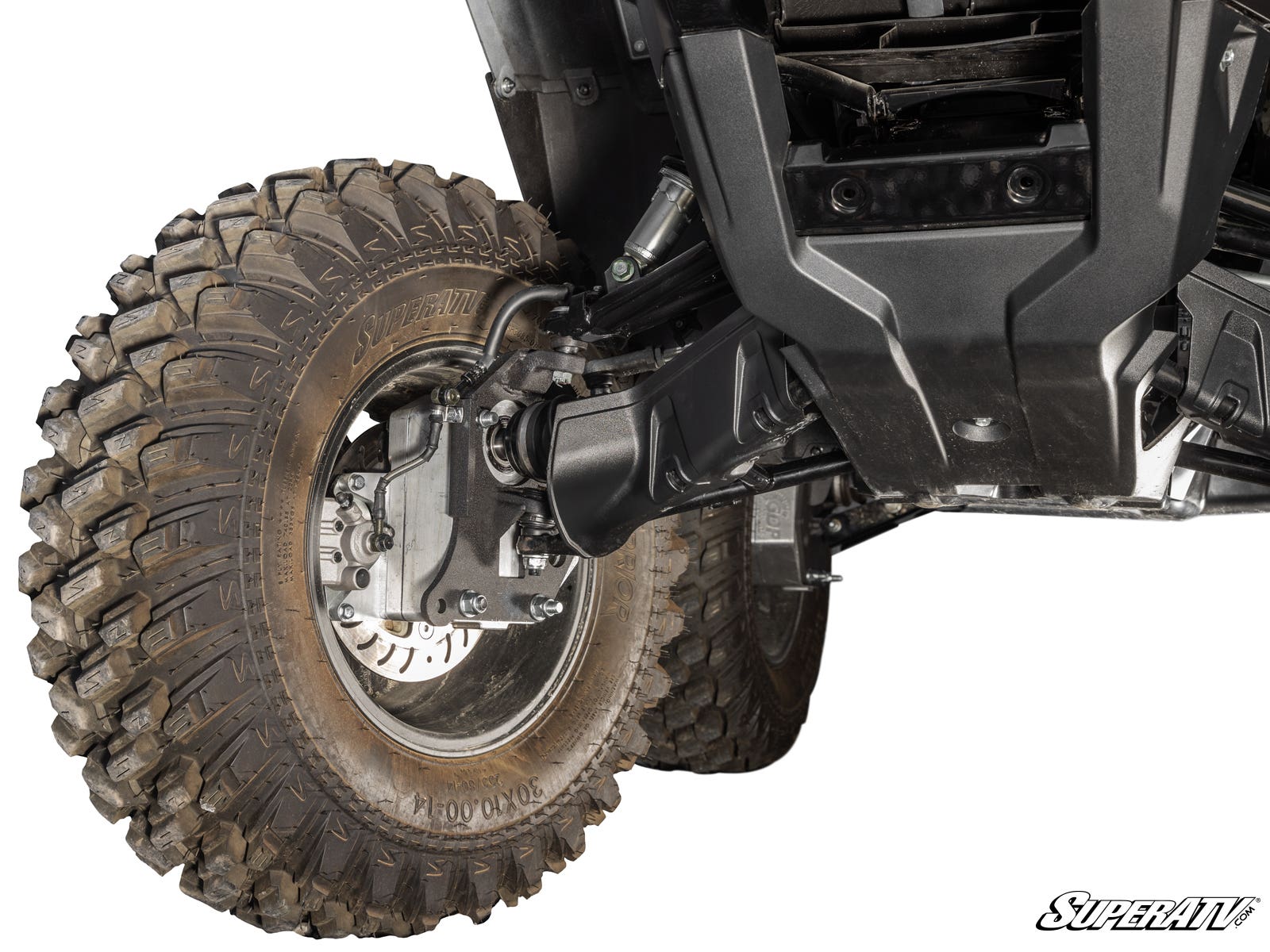

SuperATV Honda Foreman 4" Portal Gear Lift
SKU:
PGH-3-15-151
SELECT FITMENT
See If This Product Fits Your Vehicle
- $2,649.95
- $2,649.95
$2,941.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Maximize Your Honda Foreman’s Performance with GDP Portals
Your Honda Foreman has always been good to you. Take its performance over the top with SuperATV’s 4" Portal Gear Lift. Choose between a 15% or 30% gear reduction to boost torque. With these portals, you get more ground clearance and the ability to run larger tires.
Get the Torque You Need
You can customize your torque and acceleration with a choice between a 15% or 30% gear reduction. For maximum torque and larger tires, choose 30% reduction. It can help you take off from a dead stop or haul large loads. Choose 15% to maintain a higher top speed while still getting an increase in torque.
Protect Your Drivetrain
When you’re throwing extra weight around, you can cause damage to your drivetrain. GDP Portals put the gear reduction in the hub, helping protect your drivetrain from extra wear. This Honda Foreman portal gear lift also keeps your factory suspension to help maintain cooler-running axles.
The Toughest Portals You Can Get
These portals are designed for rough terrain and hard rides. They feature cast or 6061 billet aluminum housings, reinforced for gear retention and optimized for oil flow, along with advanced steel backing plates for added strength.
- Advanced steel alloy backing plates are stronger than chromoly
- Enhance with Portal Blood gear oil formulated for GDP Portals
- No vents, because vents do more harm than good
Advanced Gaskets, Seals, and Bearings
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- Sealed input gear and double-lipped output seal
- 100% sealing coverage throughout to help prevent oil leaks
- Double-angular contact output bearings to help prevent premature wear
- Roller idler and drive bearings to maintain gear meshing
Features
- Available with billet or cast aluminum housing
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use gaskets or O-rings
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Lighter than the competition
4" Portal Gear Lift Includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (2) Steel caliper mounting plates
- (2) Caliper mounting plate shims
- Extended brake lines
- All required hardware, including recessed castle nut socket
Max Tire Size Recommendations
- 26" tire: Stock suspension setup with 4" portals
Max tire sizes are measured at full compression and full turn. The listed tire sizes are the largest fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.
If you need help figuring out which gear reduction is right for you, check out our .
Fitment:
- Honda Foreman 500: 2015-2019
- Honda Foreman 520: 2020+
NOTE: Only compatible on machines with IRS (Independent Rear Suspension)
Wheel Requirements
- 14" or larger wheel required
- Cannot exceed 5" backspacing
- Not compatible with dual beadlock wheels
- Wheels need to have a center hole of at least 3.25" (82.55 mm) or require a 1" wheel spacer
Patent # 11,299,042Patent # 11,318,787
Product Specs
SKU:
PGH-3-15-151
Brand:
SuperATV
