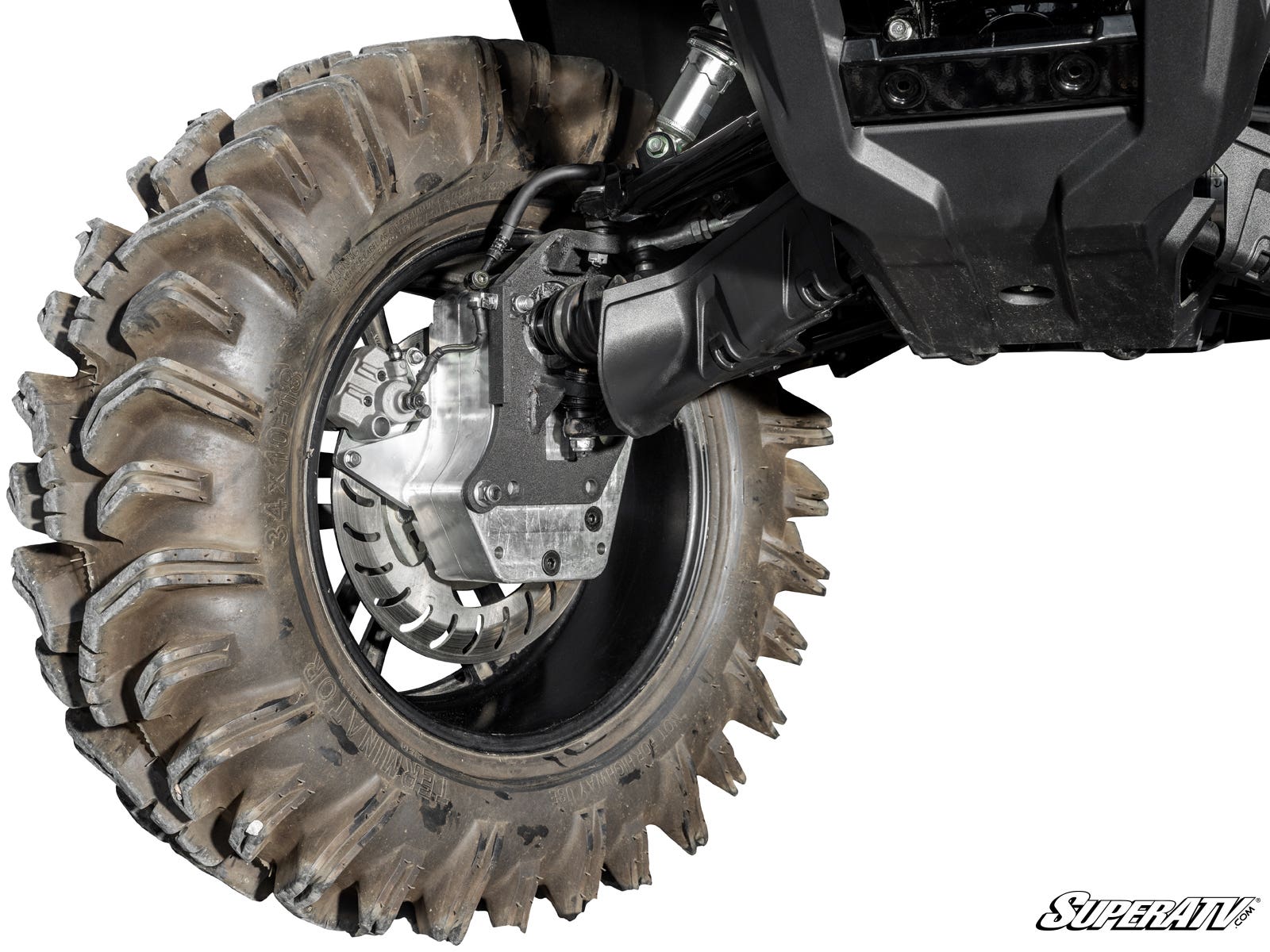

SuperATV Honda Foreman 6" Portal Gear Lift
SKU:
PGH6-3-15-301
SELECT FITMENT
See If This Product Fits Your Vehicle
- $3,099.95
- $3,099.95
$3,391.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Take your Honda Foreman’s performance over the top with SuperATV’s 6" Portal Gear Lift. Choose a 30% or 45% gear reduction to boost torque, improve ground clearance, and run larger tires. The 45% reduction delivers maximum torque for heavy loads and tough terrain, while the 30% reduction helps maintain top speed with added torque.
GDP Portals put the gear reduction in the hub to help protect your drivetrain from extra wear, while keeping your factory suspension for cooler-running axles. These portals are built with cast or 6061 billet aluminum housings and reinforced with advanced steel backing plates for strength on rough terrain. They also feature cool, quiet, precision-ground 9310 alloy billet steel gears, a 1.5 in. diameter 4340 hardened steel drive shaft, advanced gaskets and O-rings, a sealed input gear, double-lipped output seal, double-angular contact output bearings, and roller idler and drive bearings for proper gear meshing and reduced wear.
- Available with billet or cast aluminum housing
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use gaskets or O-rings that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Lighter than the competition
Includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (2) Steel caliper mounting plates
- (2) Caliper mounting plate shims
- Extended brake lines
- All required hardware, including recessed castle nut socket
Fitment:
- Honda Foreman 500: 2015-2019
- Honda Foreman 520: 2020+
NOTE: Only compatible on machines with IRS (Independent Rear Suspension).
Wheel Requirements:
- 18" or larger wheel required
- 20" and larger wheels cannot exceed 5" backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
Honda Foreman Max Tire Size Recommendations with 6" Portals:
- 28" tires: Stock suspension setup
Max tire sizes are measured at full compression and full turn. The given tire sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.
If you need help figuring out which gear reduction is right for you, check out our
Patent # 11,299,042Patent # 11,318,787
Product Specs
SKU:
PGH6-3-15-301
Brand:
SuperATV
