SuperATV Honda Pioneer 1000 6" Portal Gear Lift
SKU:
PGH6-3-64-303
SELECT FITMENT
See If This Product Fits Your Vehicle
- $3,099.95
- $3,099.95
$3,391.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Gen 3 Portals Are Geared for All

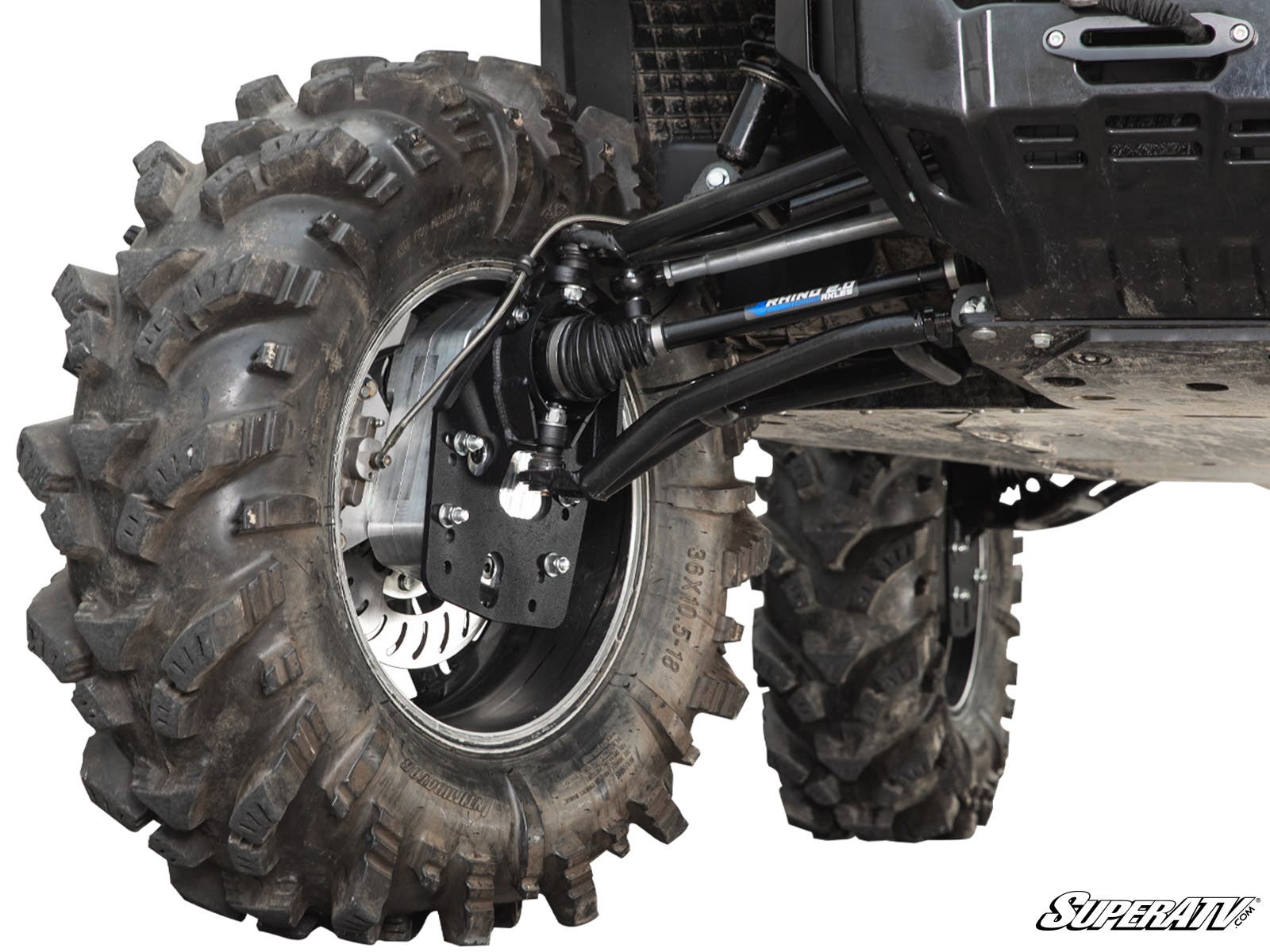

SuperATV’s GDP 6" Portal Gear Lift adds massive ground clearance, room for monster tires, and your choice of gear reduction—30%, 45%, or 60%—to transform your Honda Pioneer 1000. For even more strength and power, choose the dual idler gear configuration.
GDP Portals are designed for a wide range of riding styles and terrain, from the farm to the dunes and muddy, rocky trails in between. A 30% gear reduction is ideal for fast rides with plenty of torque, 45% helps when upgrading to bigger tires, and 60% is built for serious mud setups.
By placing the gear reduction in the hub, these portals reduce stress on your drivetrain and help protect your axles, differential, prop shaft, and transmission. That can help your key components last longer while you ride harder.
Choose cast or billet aluminum housings for strength, along with 5/16" backing plates made from an advanced steel alloy. The housings are reinforced for gear retention and optimized for oil flow, and there are no vents because SuperATV found they do more harm than good.
Advanced gaskets, seals, and bearings help keep everything running smoothly, including oil-resistant gaskets and O-rings, a sealed input gear, a double-lipped output seal, double-angular contact output bearings, and roller idler and drive bearings.
Dual idler gear portals use a second idler gear to spread the load over more surface area for better torque transfer and added strength. The gears are precision CNC ground and made from 9310 steel alloy for reliable performance.
SuperATV strongly recommends using a Frame Stiffener with 6" portals, especially with monster tires, to help reduce strain on your machine.
6" Portal Gear Lift Includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (2) Steel steering arms
- (8) Rear backing plate bushings with sleeves
- Extended brake lines
- All required hardware, including recessed castle nut socket
Honda Pioneer 1000 Portal Gear Reduction Recommendations
- Up to 28" tires: Stock suspension
- Up to 28" tires: 3" Lift Kit
- 29" to 31" tires: 1.5" Forward Front A-Arms
- 29" to 31" tires: 1.5" Forward Front A-Arms and 3" Lift Kit
- 32" to 37" tires: 6" Lift Kit
- If you need help figuring out which gear reduction is right for you, check out the portal gear reduction calculator
- Max tire sizes are measured at full compression and full turn. The listed sizes are the largest fitment without rubbing; with minor trimming or a small amount of rub, larger tires can be used.
Fitment:
- Honda Pioneer 1000: 2016+
- Honda Pioneer 1000 Deluxe: 2016+
- Honda Pioneer 1000 Limited Edition: 2022+
- Honda Pioneer 1000-5: 2016+
- Honda Pioneer 1000-5 Deluxe: 2016+
- Honda Pioneer 1000-5 Limited Edition: 2022+
- Honda Pioneer 1000-6: 2023+
NOTE:
- Not compatible with Keller Ball Joints
- Not compatible with ADR Axles
Wheel Requirements:
- 18" or larger wheel required
- Wheels cannot exceed 4-1/2" backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
Product Specs
SKU:
PGH6-3-64-303
Brand:
SuperATV
