SuperATV Honda Pioneer 1000 Atlas Pro 1.5" Forward Offset A-Arms

SKU: AA-H-PIO1KOHC-002-02

SELECT FITMENT

See If This Product Fits Your Vehicle

$667.95
$667.95

Free Shipping

Free ground shipping on all orders over $99
Color: Black
Year: 2022+
Need Preinstalled Ball Joints?: I will do the work myself and reuse existing
Description

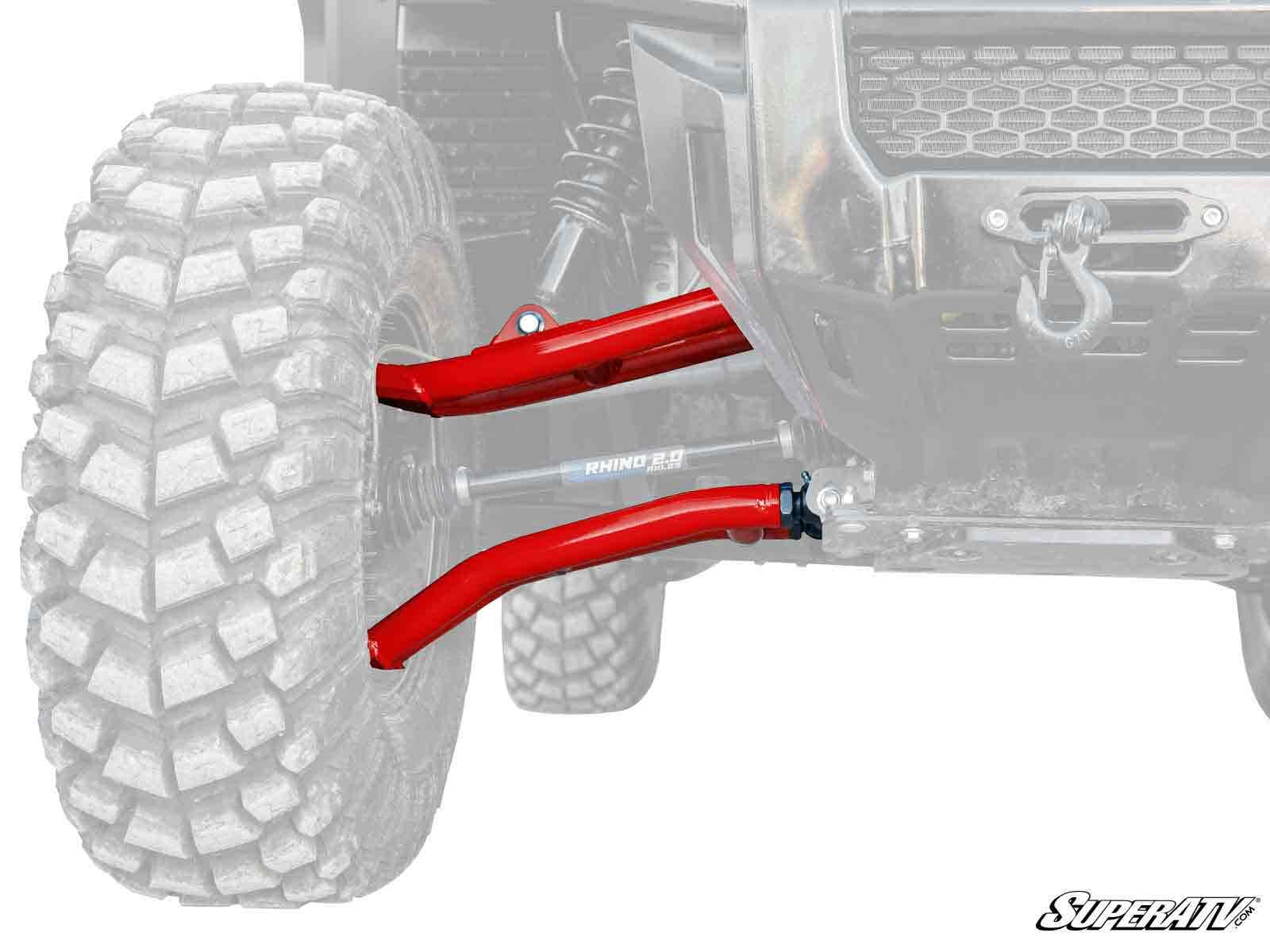

Dominate with Atlas Pro A-Arms Take on rough, rocky terrain with SuperATV’s Honda Pioneer 1000 Atlas Pro 1.5" Forward Offset A-Arms. These rugged A-arms add extra ground clearance, stability, and room for up to 31" tires on your Pioneer to help you clear boulders and obstacles that stock machines can’t handle.

Bigger and Stronger Than Stock Atlas Pro A-arms are 0.5" larger than stock and 0.25" larger than SuperATV’s standard high-clearance A-arms. A UV-resistant powder coat helps protect against rust, and the larger construction adds durability and a bold look.

No Hang-Ups with Higher Clearance These A-arms add 1.5" of ground clearance and extend the wheelbase for added stability. The forward offset lets you run 31" tires without a lift, helping you tackle obstacles with fewer hang-ups.

Correct Camber Saves Your Tires Fully adjustable pivot blocks are set to factory standards for faster installation. If you’ve modified your machine, you can adjust camber to help reduce unnecessary tire wear.

Preassembly Available Purchase SuperATV ball joints with your A-arms and they’ll be installed for you at no extra cost. NOTE: You must re-use your stock ball joints if you do not select a pre-installed ball joint at checkout.

Keller Ball Joints Keller Ball Joints use a two-piece design that eliminates the need for a snap ring. They thread onto your A-arms like a nut and bolt, making them virtually impossible to pull out. The chromoly steel stud and tool-steel body are built for bigger machines and bigger tires, and they are greaseable and rebuildable.

Heavy-Duty Ball Joints SuperATV heavy-duty ball joints are made with hardened 4340 VAR steel and zinc plating for durability. They include accessible grease zerks and an adjustable design. Lab and field testing shows they can withstand double the pressure of an OEM ball joint.

  • Adds a 1.5" forward offset
  • Fits up to 31" tires
  • Made with 1.5" diameter tubing
  • 0.5" larger than stock
  • 0.25" larger than SuperATV’s standard High-Clearance 1.5" Forward Offset A-Arms
  • Adjustable lower pivot blocks for full camber adjustability
  • Includes high-quality bushings at no extra cost
  • UV-resistant powder coat finish
  • Easy to install
  • Backed by a lifetime warranty

Fitment:

  • Honda Pioneer 1000: 2016+
  • Honda Pioneer 1000-5: 2016+
  • Honda Pioneer 1000 Deluxe: 2016+
  • Honda Pioneer 1000-5 Deluxe: 2016+
  • Honda Pioneer 1000 Limited Edition: 2017+
  • Honda Pioneer 1000-5 Limited Edition: 2017+
  • Honda Pioneer 1000-6: 2023+

NOTE:

  • Pioneer 1000 or Pioneer 1000-5 Limited Edition models will require Rhino 2.0 axles
  • You may need wheel spacers when running 12" wheels
  • If you want to run offset A-arms with the , you must have Rhino Brand Axles. Stock axles will bind.
  • Does not fit Trail models if using with a lift kit
  • A-arms with Keller Ball Joints will not work with Portal Gear Lifts
Fitment
Fitment

Product Specs

SKU:
AA-H-PIO1KOHC-002-02
Brand:
SuperATV
