SuperATV Honda Pioneer 500 8" Portal Gear Lift
SKU:
PGH8-3-37-451
SELECT FITMENT
See If This Product Fits Your Vehicle
- $4,189.95
- $4,189.95
$4,653.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99

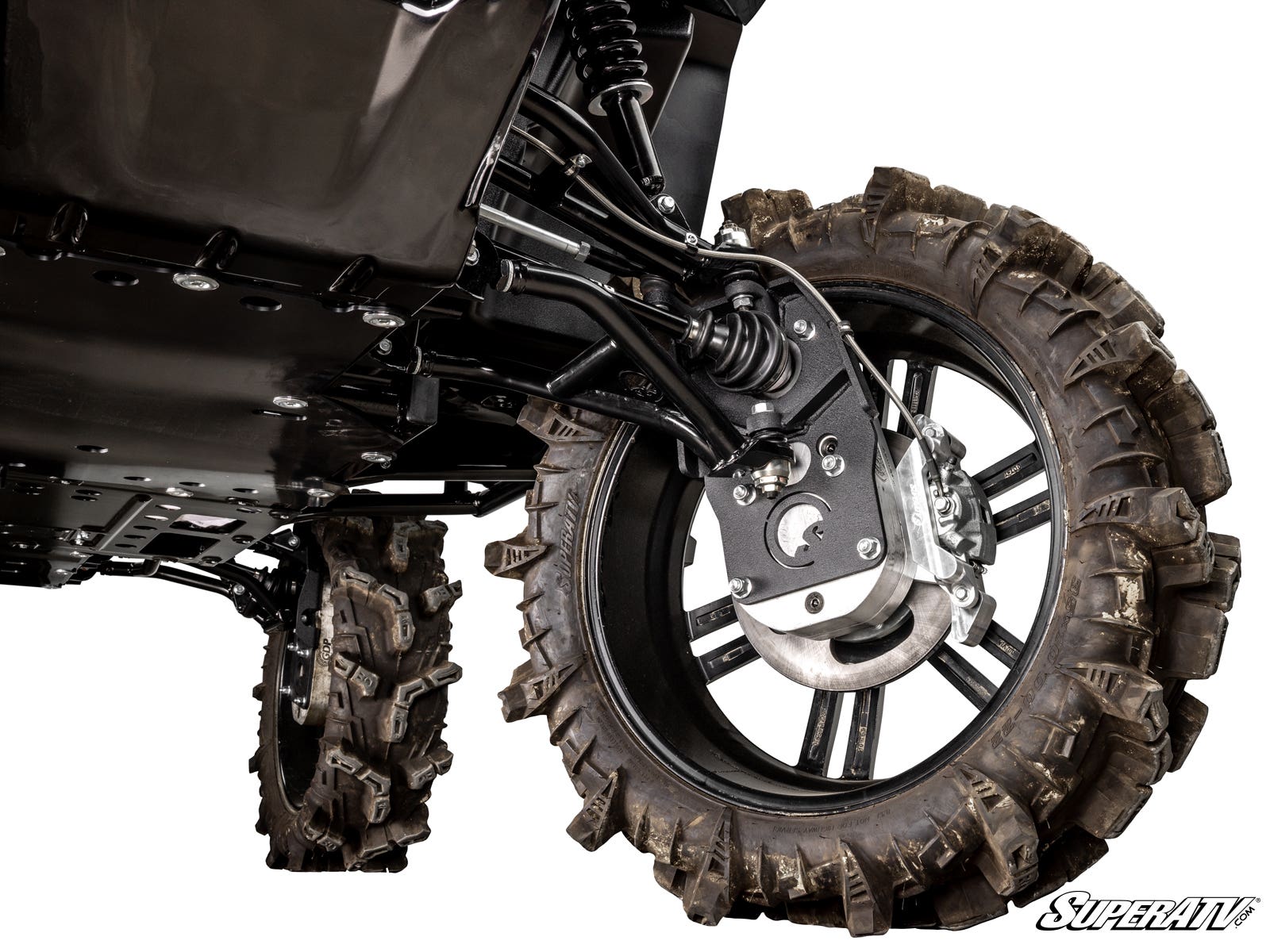

Upgrade Your Ride with Huge 8" Honda Pioneer 500 Portals
The Honda Pioneer 500 is an extremely capable machine, but that doesn’t mean it can do everything. Upgrade your rig with SuperATV’s Honda Pioneer 500 8" Portal Gear Lift. It gives you a gigantic lift kit and gear reduction in one powerful package. The gear reduction gives you the torque you need to take on mud, creeks, trails, and rocks.
- Gives you an 8" lift and a gear reduction in one package
- 45% or 60% gear reduction
- Maintains OEM suspension angles
- Requires aftermarket suspension to clear 22" wheels and matching tires
45% or 60% Gear Reduction
A 45% or 60% gear reduction is extremely powerful. It provides the torque you need for tricky rock crawls, the muscle to turn gigantic tires, and the strength to dominate the deepest mud pits.
GDP Portals Save Your Drivetrain
These Honda Pioneer 500 portals put the gear reduction directly in the hub. This helps protect your drivetrain, so your differential, prop shaft, and transmission won’t experience extra wear and tear. They also maintain stock suspension geometry, helping prevent overextension of your axles.
Honda Portals That Are Built Tough
GDP Portals are built to be tough with 5/16" advanced steel alloy backing plates and precision-engineered cast aluminum housings.
- Reinforced housings for gear retention and optimized oil flow
- Advanced steel alloy backing plates are stronger than chromoly
- Enhance with gear oil formulated for GDP Portals
- No gimmicks and no vents, because vents do more harm than good
Advanced Gaskets, Seals, and Bearings
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- Sealed input gear and double-lipped output seal
- 100% sealing coverage throughout to help prevent oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
REQUIRES Aftermarket Suspension
These Pioneer 500 portals require a 22" wheel and tires to match. They must be paired with offset A-arms or a suspension lift kit not offered by SuperATV.
Wheel Requirements:
- 22" or larger wheel required. Therefore, it is not compatible with stock suspension and requires aftermarket suspension
- Wheels cannot exceed 4.5" backspacing
- Wheels need to have a center hole of at least 3.25" (82.55 mm) or require a 1" wheel spacer
8" Portal Gear Lift Includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (2) Steel caliper mounting plates
- (4) Caliper adapter plates
- Steering stop kit
- Extended brake lines
- All required hardware, including recessed castle nut socket
- Cast aluminum housing
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use gaskets or O-rings that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Lighter than the competition
Fitment
- Honda Pioneer 500 : 2015+
Patent # 8,985,264, 11,015,681, 11,299,042, 11,554,662, 12,005,776
Product Specs
SKU:
PGH8-3-37-451
Brand:
SuperATV
