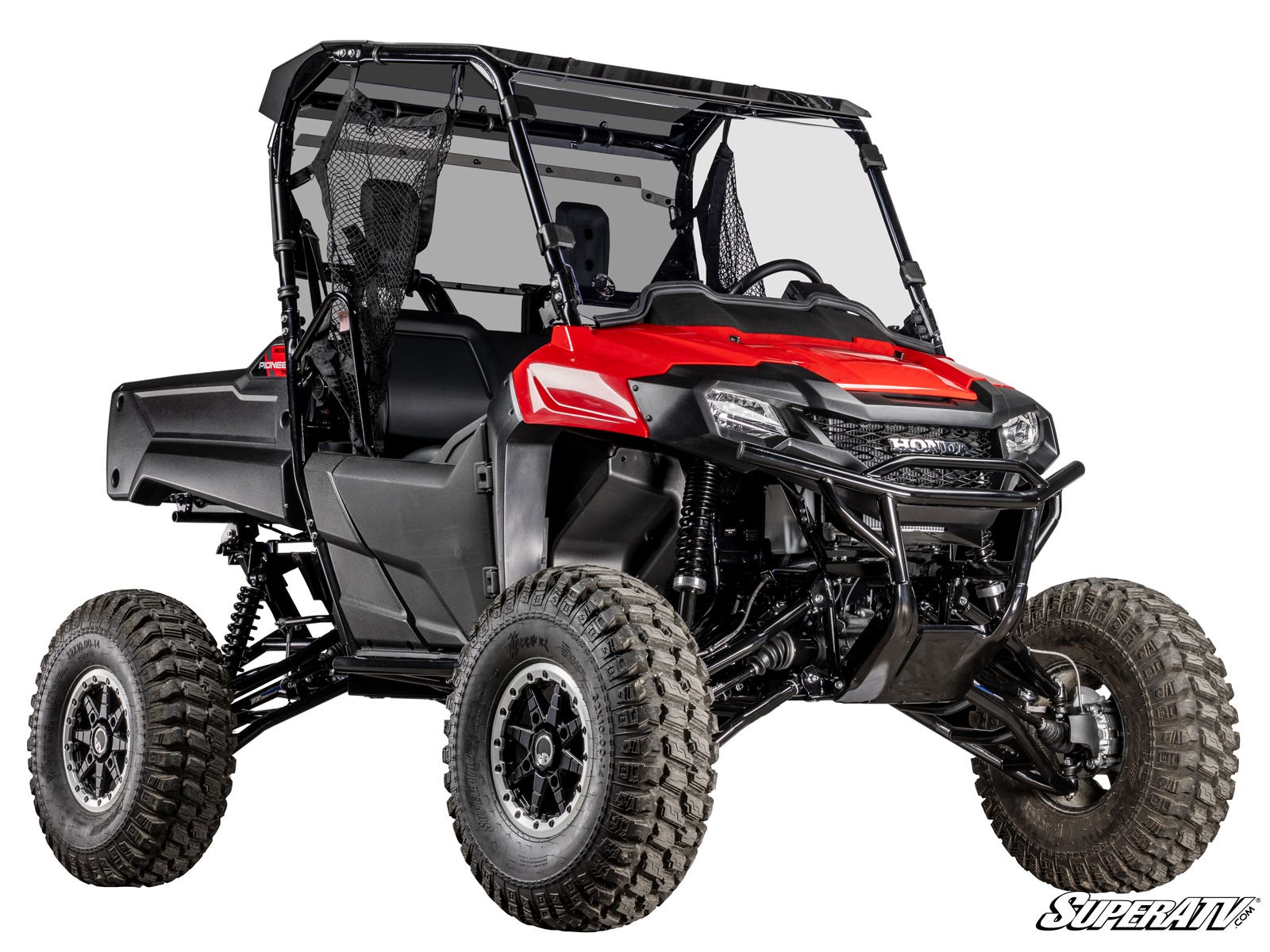

SuperATV Honda Pioneer 700 5" Lift Kit

SKU: LK-H-PIO700-5-02

SELECT FITMENT

See If This Product Fits Your Vehicle

$2,649.95
$2,649.95

Free Shipping

Free ground shipping on all orders over $99
Need Preinstalled Ball Joints?: I will do the work myself and reuse existing
Description

Your Pioneer 700 Will Be a True Powerhouse

Turn your Honda Pioneer 700 into a mud-monster with SuperATV’s 5" Lift Kit. You’ll get 15.5" of ground clearance for more stability and the ability to run up to 33" tires. This kit includes Atlas Pro A-Arms and Rhino 2.0 axles for the durability you need on rough terrain.

Atlas Pro A-Arms Take It to the Next Level

The included Atlas Pro A-Arms are built tough with steel DOM tubing—1.5" x .25" main tubes and 1.5" x .13" support tubes—making them significantly bigger and stronger than stock. They also feature self-lubricating UHMW bushings for a smooth, quiet, low-maintenance ride.

Maintains the Stock Feel

With precisely angled shocks and brackets, this suspension is designed to help maintain a comfortable ride and dialed-in handling. Turning radius is kept close to stock, so trail performance stays familiar.

Industry-Leading Rhino 2.0 Axles

Rhino 2.0 axles are built with hardened 4340 chromoly steel and oversized CV joints, making them twice as strong as stock. They’re engineered to handle extreme 40° suspension angles without overheating or wearing out, and there’s no break-in period needed.

Get Them Preassembled

Order this lift kit with Keller Ball Joints preinstalled to save time and money during installation.

NOTE: You must re-use your stock ball joints if you don’t select a pre-installed Keller Ball Joint at checkout.

Keller Ball Joints have a two-piece design that eliminates the need for a snap ring. They thread directly onto your A-arms and are built with a chromoly steel stud and tool-steel body. They’re greaseable and rebuildable for long-term use.

Kit Includes

  • Rear lift brackets
  • Front spring spacers
  • Front and rear Atlas Pro A-arms
  • (4) Rhino 2.0 Axles
  • Heavy-duty Z-bend tie rod kit
  • Extended brake lines
  • All hardware and installation instructions

Features

  • 15.5" of ground clearance
  • Run up to 33" tires (up from 25" stock)
  • Preadjusted pivot blocks give you perfect camber out of the box
  • Includes 4 Rhino 2.0 axles
  • 1.5" Atlas Pro A-Arms
  • Self-lubricating UHMW bushings
  • Ultra-tough Z-bend tie rods
  • Lifetime warranty on all A-arms and brackets
  • 5" of lift
  • 12" wider stance for increased stability (61" total width when installed)
  • Compatible with OEM and Keller ball joints
  • Powder coated for increased durability

Fitment

  • Honda Pioneer 700: 2017+
  • Honda Pioneer 700-4: 2017+

NOTE: Wheel spacer required if you’re running 12" stock wheels.

Fitment
Fitment

Product Specs

SKU:
LK-H-PIO700-5-02
Brand:
SuperATV
