SuperATV Honda Pioneer 700 8" Portal Gear Lift
SKU:
PGH8-3-37-451#AB
SELECT FITMENT
See If This Product Fits Your Vehicle
- $4,189.95
- $4,189.95
$4,653.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99

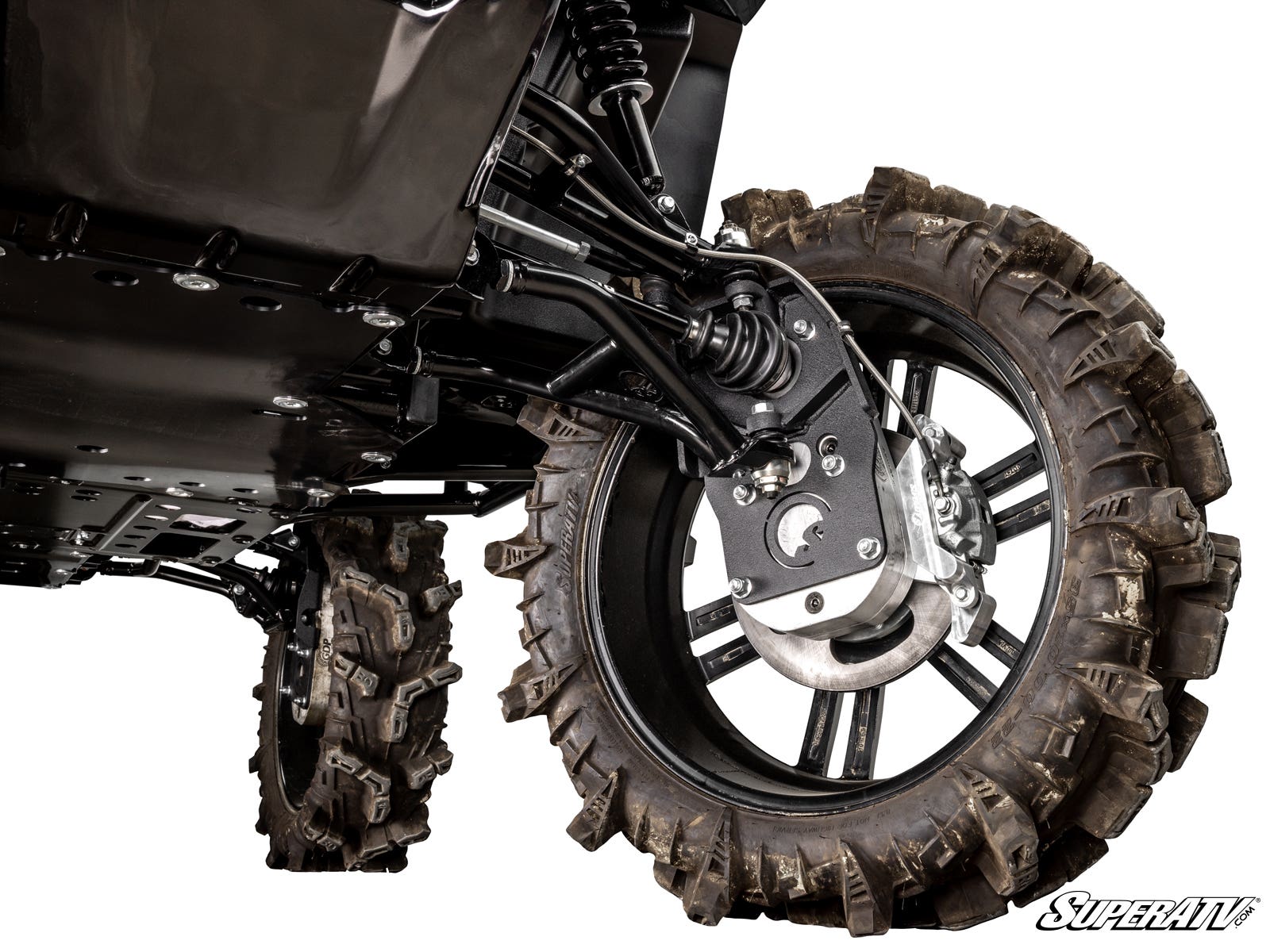

Upgrade your Honda Pioneer 700 with huge 8" portals. Get more out of your machine with SuperATV’s 8" Portal Gear Lift for the Honda Pioneer 700. These portals give you a huge lift and a gear reduction in one package, helping you tackle creeks, mud, trails, rocks, and more with added ground clearance and torque.
- Gives you an 8" lift and a gear reduction in one package
- 45% or 60% gear reduction
- Maintains OEM suspension angles
- Requires aftermarket suspension to clear 22" wheels and matching tires
45% or 60% gear reduction Transform your Pioneer into a torquey tank with a 45% or 60% gear reduction. A gear reduction takes your power back when you add huge tires or other heavy upgrades, making it a great choice for deep mud and tough trails.
GDP portals save your drivetrain GDP portals put the gear reduction directly in the hub, helping protect your axles, differential, prop shaft, and transmission from unnecessary wear and tear.
Built tough GDP portals use 5/16" advanced steel alloy backing plates and precision-engineered cast aluminum housings to stand up to hard riding. The housings are reinforced for gear retention and optimized for oil flow.
- Advanced steel alloy backing plates are stronger than chromoly
- Enhance with gear oil formulated for GDP Portals
- No vents, because vents do more harm than good
Advanced gaskets, seals, and bearings
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- Sealed input gear and double-lipped output seal
- 100% sealing coverage throughout to help prevent oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
Customer support Need help choosing the right setup? SuperATV’s portal support team can help you get the right set of portals.
8" Portal Gear Lift includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (2) Steel caliper mounting plates
- (4) Caliper adapter plates
- Steering stop kit
- Extended brake lines
- All required hardware, including recessed castle nut socket
Max tire size recommendations:
- 32" max tire size with stock suspension
- 35" max tire size with
- 42" max tire size with
If you need help figuring out which gear reduction is right for you, check out our . Max tire sizes are measured at full compression and full turn. The sizes listed are the largest we fit without rubbing; with minor trimming or a small amount of rub, larger tire sizes can be used.
Features:
- Cast aluminum housing
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use gaskets or O-rings that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Lighter than the competition
Fitment:
- Honda Pioneer 700: 2017+
- Honda Pioneer 700 4: 2017+
Wheel requirements:
- 22" or larger wheel required; not compatible with stock suspension and requires aftermarket suspension
- Wheels cannot exceed 4.5" backspacing
- Wheels need a center hole of at least 3.25" (82.55 mm) or require a 1" wheel spacer
Patent # 8,985,264, 11,015,681, 11,299,042, 11,554,662, 12,005,776
Product Specs
SKU:
PGH8-3-37-451#AB
Brand:
SuperATV
