SuperATV Honda Rancher 4" Portal Gear Lift

SKU: PGH-3-15-151#AA

SELECT FITMENT

See If This Product Fits Your Vehicle

$2,649.95
$2,649.95
$2,941.95

Free Shipping

Free ground shipping on all orders over $99
Portal Housing Material: Cast
Portal Gear Reduction: 15%
Description

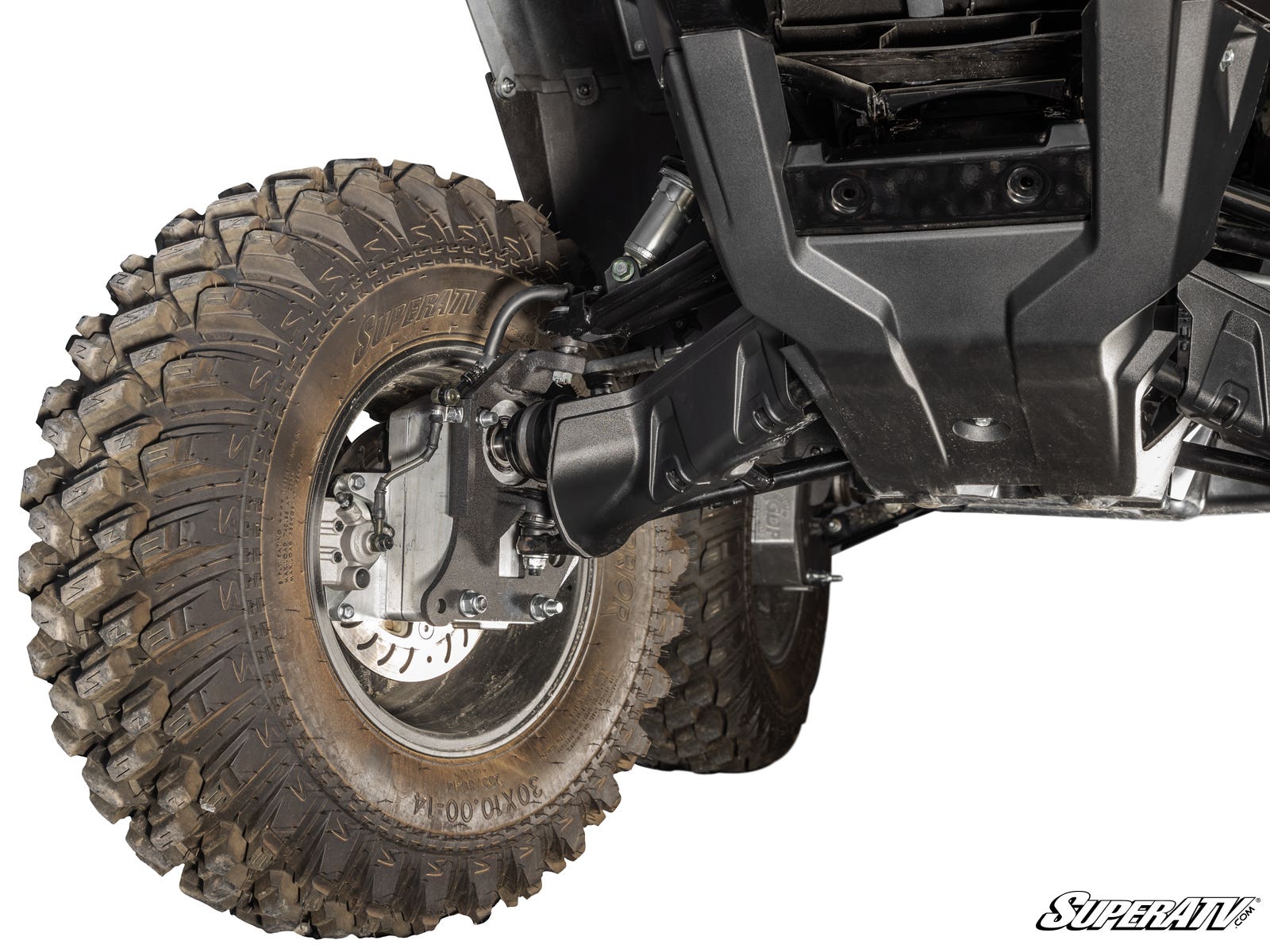

Take Your Honda Rancher to the Next Level with GDP Portals Upgrade your Honda Rancher with SuperATV’s 4" GDP Portal Gear Lift to take on bigger challenges and tougher trails. It combines a lift and gear reduction in one package, with a choice of 15% or 30% gear reduction for added torque and room to run larger tires.

Pick the gear reduction that fits your style—15% for more torque without losing top speed, or 30% for maximum power. A 30% reduction helps with towing heavy loads, crawling over obstacles and through mud, and turning bigger tires.

GDP Portals place the gear reduction in the hub to help protect your drivetrain from excess wear, while keeping factory suspension geometry so your axles run cooler and last longer.

The housings are made to handle tough use with cast and 6061 billet aluminum construction, reinforced for gear retention and optimized for oil flow. Advanced steel alloy backing plates are stronger than chromoly.

  • Available with billet or cast aluminum housing
  • Cool, quiet, precision-ground gears made from 9310 alloy billet steel
  • 1.5 in. diameter 4340 hardened steel drive shaft
  • Housings use gaskets or O-rings that don’t let anything through
  • Universal hub fits all major bolt patterns
  • Gear reduction reduces stress on your drivetrain
  • Lighter than the competition

Advanced gaskets, O-rings, seals, and bearings help resist oil leaks and premature wear. Features include a sealed input gear, double-lipped output seal, double-angular contact output bearings, and roller idler and drive bearings to maintain perfect gear meshing.

  • Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
  • Sealed input gear and double-lipped output seal
  • 100% sealing coverage throughout
  • Double-angular contact output bearings to prevent premature wear
  • Roller idler and drive bearings to maintain perfect gear meshing

4" Portal Gear Lift Includes:

  • (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
  • (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
  • (4) Specialized steel alloy backing plates
  • (2) Steel caliper mounting plates
  • (2) Caliper mounting plate shims
  • Extended brake lines
  • All required hardware, including recessed castle nut socket

Honda Rancher Max Tire Size Recommendations

  • 26" tire: stock suspension

If you need help figuring out which gear reduction is right for you, check out our . Max tire sizes are measured at full compression and full turn. The given tire sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.

Patent # 11,299,042Patent # 11,318,787

Fitment:

  • Honda Rancher 420: 2014+

NOTE: Only compatible on machines with IRS (Independent Rear Suspension).

Wheel Requirements

  • 14" or larger wheel required
  • Cannot exceed 5" backspacing
  • Not compatible with dual beadlock wheels
  • Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
