SuperATV Honda Rancher 6" Portal Gear Lift
SKU:
PGH6-3-15-301#AA
SELECT FITMENT
See If This Product Fits Your Vehicle
- $3,099.95
- $3,099.95
$3,391.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Maximize power and performance with GDP Portals

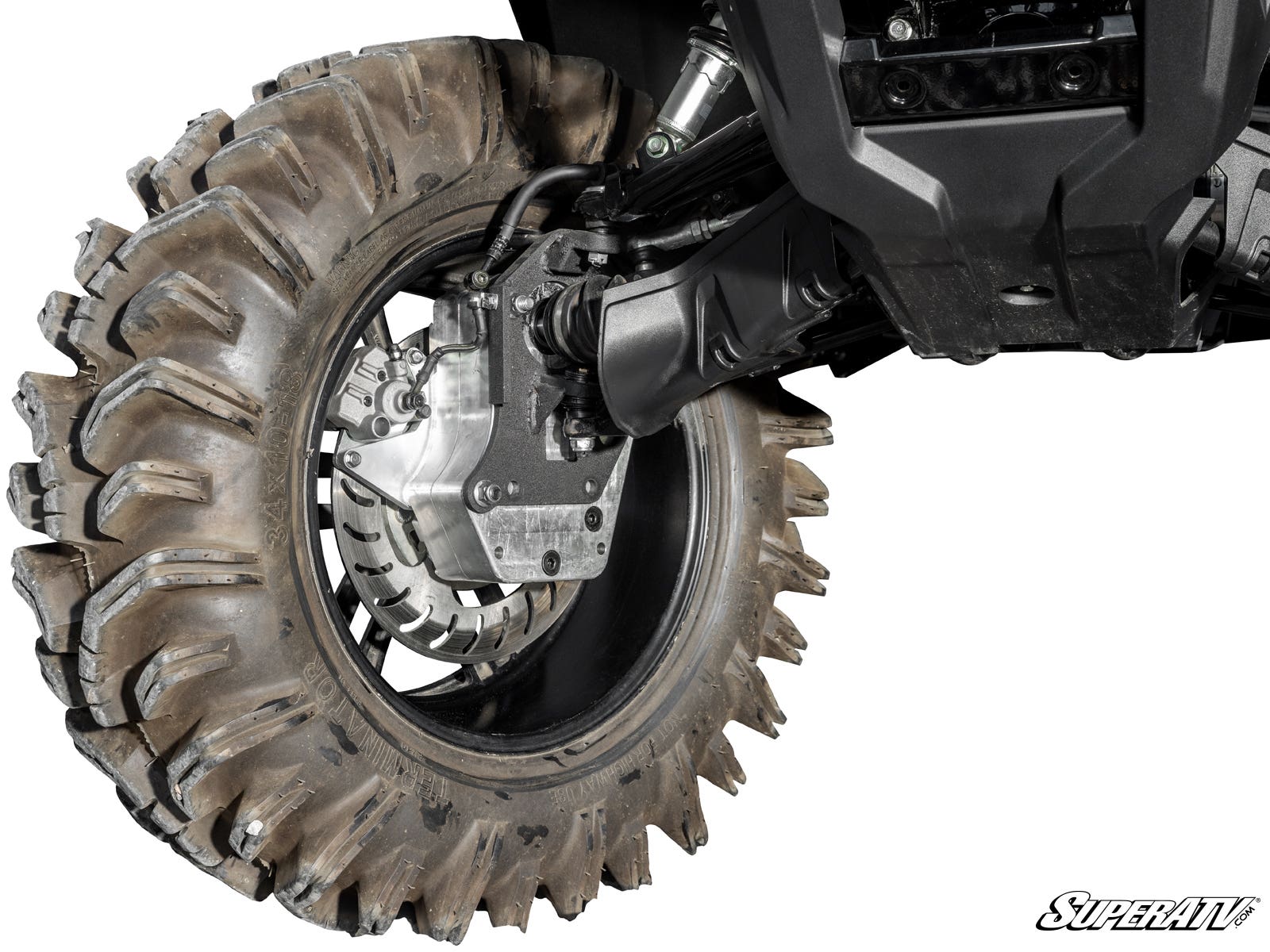

Take your Honda Rancher to the next level with SuperATV’s 6" Portal Gear Lift. You get a lift and a gear reduction in one package, with a choice of 30% or 45% gear reduction to boost torque for the way you ride. You’ll also get extra ground clearance and room to run massive tires.
With a 30% or 45% gear reduction, you’ll get more torque and better acceleration. A 45% reduction gives you maximum power to handle deep mud, big hills, and massive tires. If you want a balance between speed and torque, the 30% reduction is the perfect choice.
All that extra power can wear down your drivetrain, but GDP Portals help protect it. The gear reduction is built into the hub, which means your axles, differential, and transmission wear less. These portals also keep your stock suspension geometry, so your axles run cooler and last longer.
Built for hard rides, these portals use cast or 6061 billet aluminum housings and are reinforced with advanced steel backing plates for strength. They feature advanced gaskets and O-rings for oil resistance, a sealed input gear, a double-lipped output seal, double-angular contact output bearings, and roller idler and drive bearings to maintain perfect gear meshing.
- Available with billet or cast aluminum housing
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use gaskets or O-rings that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Lighter than the competition
- Our housings are reinforced for gear retention and optimized for oil flow
- Advanced steel alloy backing plates are stronger than chromoly
- Enhance with Portal Blood—gear oil formulated for GDP Portals
- There are no gimmicks and no vents because vents do more harm than good
The 6" Portal Gear Lift includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (2) Steel caliper mounting plates
- (2) Caliper mounting plate shims
- Extended brake lines
- All required hardware, including recessed castle nut socket
Honda Rancher Max Tire Size Recommendations
- 28" tire size: Stock suspension setup with 6" portals
If you need help figuring out which gear reduction is right for you, check out our . Max tire sizes are measured at full compression and full turn. The given tire sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.
Fitment
- Honda Rancher 420: 2014+
Note: Only compatible on machines with IRS (Independent Rear Suspension).
Wheel requirements
- 18" or larger wheel required
- 20" and larger wheels cannot exceed 5" backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
Patent # 11,299,042Patent # 11,318,787
Product Specs
SKU:
PGH6-3-15-301#AA
Brand:
SuperATV
