SuperATV Honda Talon 1000X 4" Portal Gear Lift
SKU:
PGH-3-109-151
SELECT FITMENT
See If This Product Fits Your Vehicle
- $2,649.95
- $2,649.95
$2,941.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
GDP Portals Are Changing the Game
Get SuperATV’s 4" Portal Gear Lift for your Honda Talon 1000X and choose the housing style and gear reduction that fits your riding style. Available with cast or billet aluminum housings, this portal lift is designed for riders who want more torque, more tire clearance, and less stress on critical drivetrain components.
Choose a 30% gear reduction for maximum torque and mud performance, or go with a 15% gear reduction for a smoother, more precise ride and higher top speed. For ultimate strength, dual idlers spread the load over twice as much surface area for more reliable torque transfer.
Why a Portal Gear Lift?
By placing the gear reduction in the hub, these portals reduce stress on your axles, differential, prop shaft, and transmission so you can ride harder with more confidence.

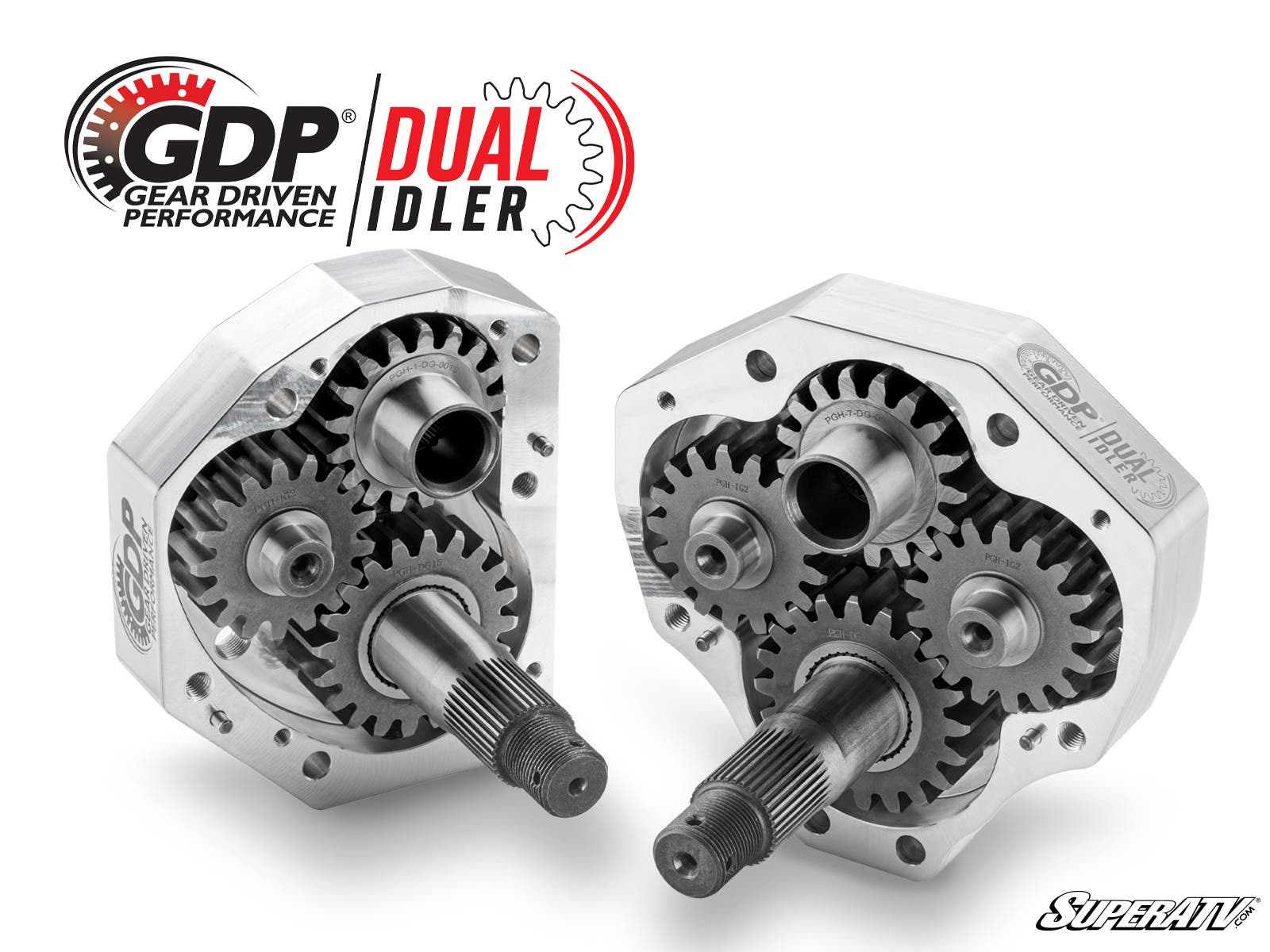

Built for Strength and Reliability
- Available with billet or cast aluminum housing
- Dual idler gear configuration maximizes strength
- Cool, quiet, precision-ground gears made from 9310 alloy steel
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use advanced gaskets or O-rings for excellent sealing
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Dual idler gear configuration adds a 3/4" front and rear offset, 1.5" total extension
- Lighter than the competition
Advanced Seals and Bearings
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- Sealed input gear and double-lipped output seal
- 100% sealing coverage throughout to help prevent oil leaks
- Double-angular contact output bearings to help prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
Recommended for Your Talon
For added support, SuperATV recommends installing a frame stiffener with your 4" portal gear lift.
Included Components
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (8) Caliper mounting plate shims
- (2) Steel steering arms
- (2) Rear adapter plates
- (2) Preinstalled lower ball joints
- Extended brake lines
- All required hardware, including recessed castle nut socket
- Frame stiffener (optional)
Portal Gear Reduction Recommendations for Honda Talon 1000X
- 32" max tire size with stock suspension and 4" portals
- 32" max tire size with a 2" lift kit and 4" portals
- 34" max tire size with 1.5" forward offset A-arms and 4" portals
- 34" max tire size with 1.5" forward offset A-arms and a 2" lift kit with 4" portals
- Max tire sizes are measured at full compression and full turn. The listed sizes are the largest fit without rubbing; with minor trimming or a small amount of rub, larger tires may be used.
If you need help figuring out which gear reduction is right for you, check out our .
Fitment
- Honda Talon 1000X : 2018+
- Honda Talon 1000X-4 : 2020+
Wheel Requirements
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
- 14" or larger wheel required
- Cannot exceed 5" backspacing
- Not compatible with dual beadlock wheels
Patent # 11,299,042Patent # 11,318,787
Product Specs
SKU:
PGH-3-109-151
Brand:
SuperATV
