SuperATV Honda Talon 1000X 6" Portal Gear Lift
SKU:
PGH6-3-109-301
SELECT FITMENT
See If This Product Fits Your Vehicle
- $3,099.95
- $3,099.95
$3,391.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
GDP Portals Are Unbeatable Everyone knows there’s no such thing as a “one size fits all” off-road experience. It all comes down to where, when, and how you like to ride. That’s why SuperATV’s Gen 3 portals are all about giving you options. When you buy this 6" Portal Gear Lift for your Honda Talon 1000X, you get a say in what kind of housings are used (cast or billet aluminum), how much gear reduction you get, and whether or not you want the strength of dual idler gears. Available with 30%, 45%, or 60% gear reduction.

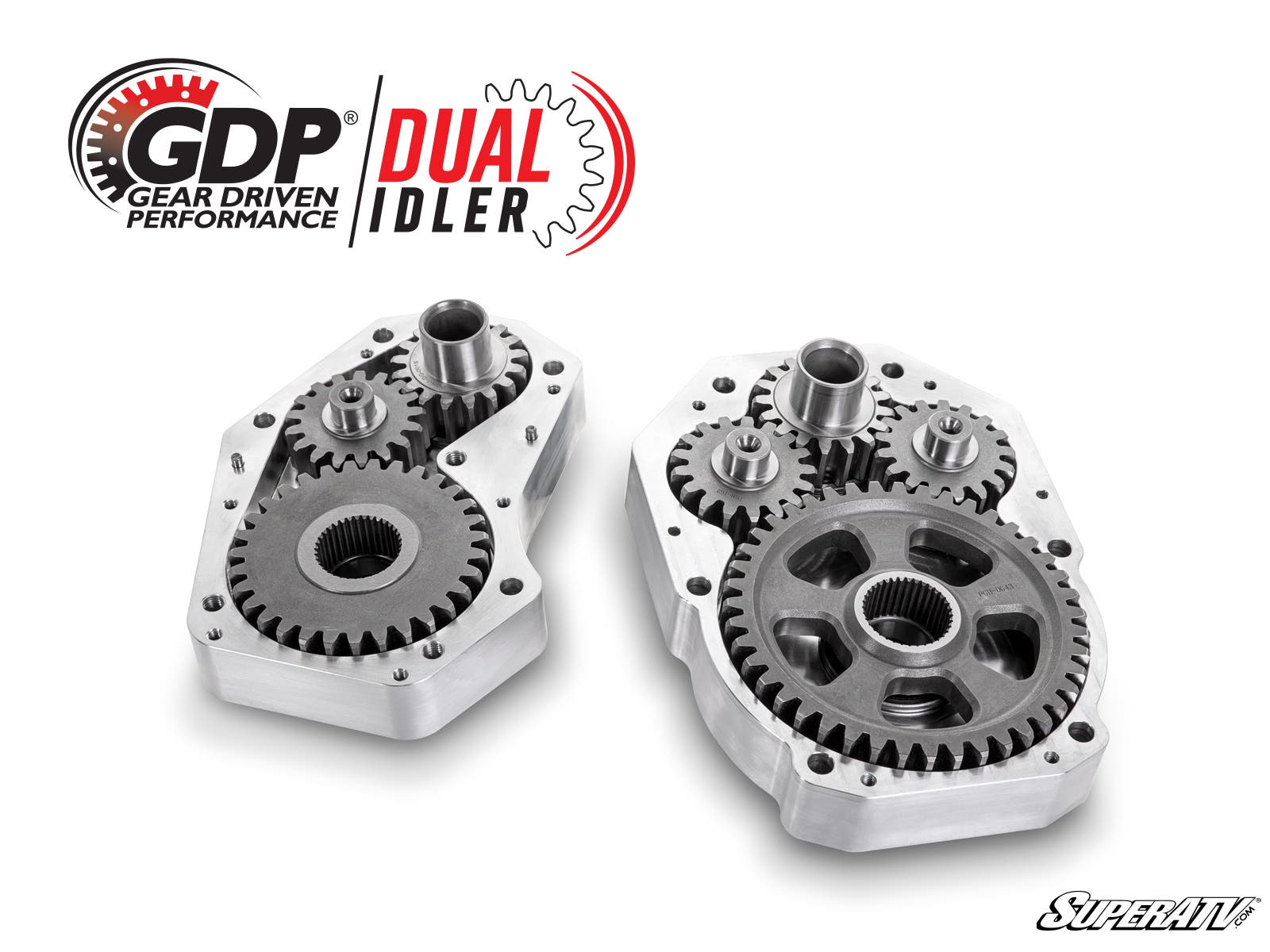

What is a Dual Idler®? After years of research and development, these dual idler gear portals are designed to spread the load over twice as much surface area for more reliable torque transfer and a stronger gear set. Precision CNC grinding ensures the gears are properly mated, and they’re made from 9310 steel alloy.
Great for Any Terrain Depending on your tire size and terrain, a 45% or 60% gear reduction is great for mud, while a 30% gear reduction delivers serious torque while maintaining a higher top speed.
A Gear Reduction That Protects Your Drivetrain By putting the gear reduction in the hub, these portals don’t add extra stress to your drivetrain, helping protect your axles, differential, prop shaft, and transmission from premature wear and tear.
Built with Superior Strength Choose cast or billet aluminum housings, along with 5/16" backing plates made from an advanced steel alloy. Features include:
- Reinforced housings optimized for gear retention and oil flow
- Advanced steel alloy backing plates stronger than chromoly
- gear oil is available for GDP Portals
- No vents, which have been tested and found to do more harm than good
Advanced Gaskets, Seals, and Bearings
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout
- Double-angular contact output bearings to help prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
Add Some Extra Frame Support After installing these 6" GDP portals, a frame stiffener is recommended to add stability and reinforcement for rough terrain.
Top-Rated Customer Service If you need help choosing the right set, contact the dedicated portal support team.
6" Portal Gear Lift Includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates with spacers
- (8) Caliper mounting plate shims
- (2) Steel steering arms
- (2) Rear adapter plates
- (2) Preinstalled lower ball joints
- Extended brake lines
- All required hardware, including recessed castle nut socket
- Frame stiffener (must select at checkout)
Honda Talon 1000X Portal Gear Reduction Recommendations
- 33" max tire size with stock suspension
- 33" max tire size with a 2" lift kit
- 36" max tire size with 1.5" forward offset A-arms
- 36" max tire size with 1.5" forward offset A-arms and a 2" lift kit
- If you need help figuring out which gear reduction is right for you, use the portal gear reduction calculator
- Max tire sizes are measured at full compression and full turn. The given tire sizes are the largest fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.
Patent # 11,299,042Patent # 11,318,787
Features:
- Available with billet or cast aluminum housings
- Dual idler gear configuration maximizes strength
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- 1.5 in. diameter 4340 hardened steel driveshaft
- Thermo-Tork® gaskets or O-rings that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Dual idler gear configuration adds a 1" front and rear offset—2" total extension
- Lighter than the competition
Fitment:
- Honda Talon 1000X : 2018+
- Honda Talon 1000X-4 : 2020+
Wheel Requirements:
- 18" or larger wheel required
- 18" wheels cannot exceed 4-1/2" backspacing
- 20" and larger wheels cannot exceed 5" backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
