SuperATV Kawasaki Mule Pro 1000 High-Clearance 1" Forward Offset A-Arms

SKU: AA-K-MULEFXT-OHC-02

SELECT FITMENT

See If This Product Fits Your Vehicle

$651.95
$651.95

Free Shipping

Free ground shipping on all orders over $99
Need Preinstalled Ball Joints?: I will do the work myself and reuse existing
Description

Fit Bigger Tires on your Mule Pro

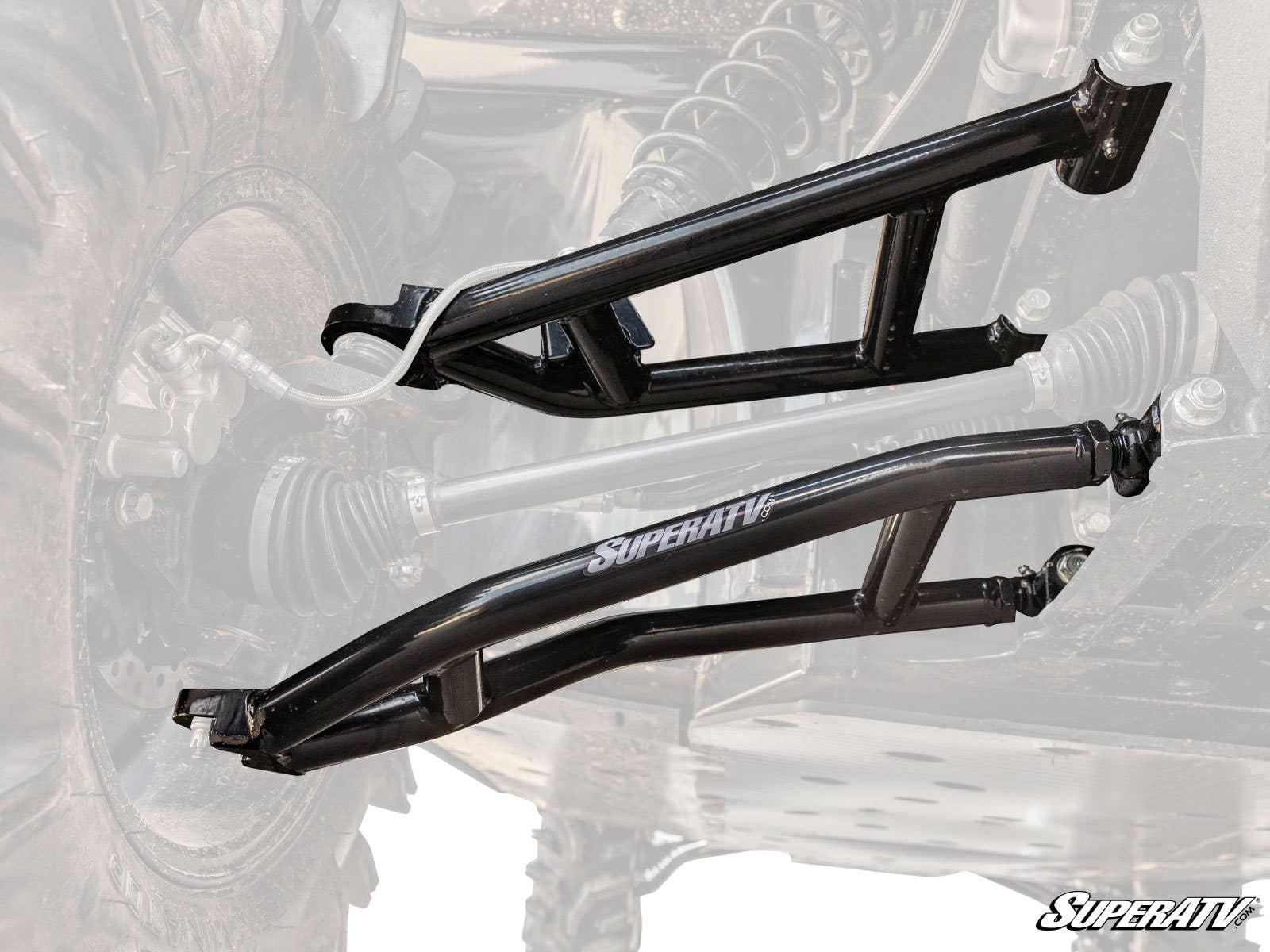

Your stock A-arms are holding you back. Get a longer wheelbase, more durable suspension, and room for bigger tires with SuperATV’s Kawasaki Mule Pro 1000 High-Clearance 1" Forward Offset A-Arms. They’re built for the roughest trails with more stability and 25% larger tubing than stock. It’s the ultimate suspension upgrade.

A 1" Forward Offset Lets You Run 28" Tires

If you want better performance, a 1" forward offset is the way to go. It increases your wheelbase for extra stability on tough terrain. Plus, that offset gives you room for 28" tires.

Mule Pro 1000 A-Arms Built to Last

The tubes on these Mule Pro 1000 offset A-arms are 1.25 inches in diameter—25% larger than stock. They’ll stand up to all kinds of abuse so you can ride hard. Plus, they come with UHMW bushings that are self-lubricating and keep your ride smooth for years.

We’re so confident in these A-arms that we back them with a lifetime warranty.

Includes Heavy-Duty Z-Bend Tie Rods

You get heavy-duty Z-bend tie rods and chromoly steel inner ball and sockets in this kit. The rods are made with 3/4" solid steel for extreme strength. You need longer tie rods to bridge the gap caused by the extra 1" offset.

Industry-Leading Adjustable Pivot Blocks

These high-clearance A-arms also come with adjustable pivot blocks, letting you adjust your alignment and maintain camber as needed. They’re pre-adjusted to stock specs right out of the box, so no adjustment is needed unless you want to make changes.

Preinstalled Ball Joints Available

Get heavy-duty chromoly steel ball joints preinstalled to save time and money. These 4340 VAR steel ball joints are zinc-plated and incredibly strong. They come with an easily accessible grease fitting and adjustable stud. They can handle double the abuse of an OEM ball joint.

NOTE: You must re-use your stock ball joints if you don’t select preassembly.

Kit Includes:

  • (4) 1" forward offset A-arms
  • (2) Z-bend tie rods
  • (2) Chromoly steel ball and sockets
  • (2) Tie rod boots with zip ties
  • Steering stop kit
  • Brake line clips
  • All hardware and instructions

Max Tire Size by Setup:

  • 1" Forward Offset A-Arms only: 28"
  • 1" Forward Offset A-Arms and 1" Rear Offset A-Arms: 30"
  • Front and Rear Offset w/ OE Bumper: 29"
  • Front and Rear Offset w/ SATV Bumper: 26"
  • Front and Rear Offset w/ 2" Lift: 33"
  • Front and Rear Offset w/ 2" Lift and OE bumper: 33"
  • Front and Rear Offset w/ 2" Lift and SATV Bumper: 30"

Fitment:

  • Kawasaki Mule Pro FX 1000 : 2024+
  • Kawasaki Mule Pro FXT 1000 : 2024+
  • Kawasaki Mule Pro FXR 1000 : 2024+

NOTE: 1" wheel spacer required if running stock wheels

Fitment
Fitment

Product Specs

SKU:
AA-K-MULEFXT-OHC-02
Brand:
SuperATV
