SuperATV Kawasaki Ridge 4" Portal Gear Lift
SuperATV Kawasaki Ridge 4" Portal Gear Lift
SuperATV Kawasaki Ridge 4" Portal Gear Lift
SuperATV Kawasaki Ridge 4" Portal Gear Lift
SuperATV Kawasaki Ridge 4" Portal Gear Lift
SuperATV Kawasaki Ridge 4" Portal Gear Lift
SuperATV Kawasaki Ridge 4" Portal Gear Lift
SuperATV Kawasaki Ridge 4" Portal Gear Lift
SuperATV

SuperATV Kawasaki Ridge 4" Portal Gear Lift

SKU: PGH-4-112-151

SELECT FITMENT

See If This Product Fits Your Vehicle

$2,649.95
$2,649.95
$2,941.95

Free Shipping

Free ground shipping on all orders over $99
Portal Housing Material: Cast
Portal Gear Reduction: 15%
Description

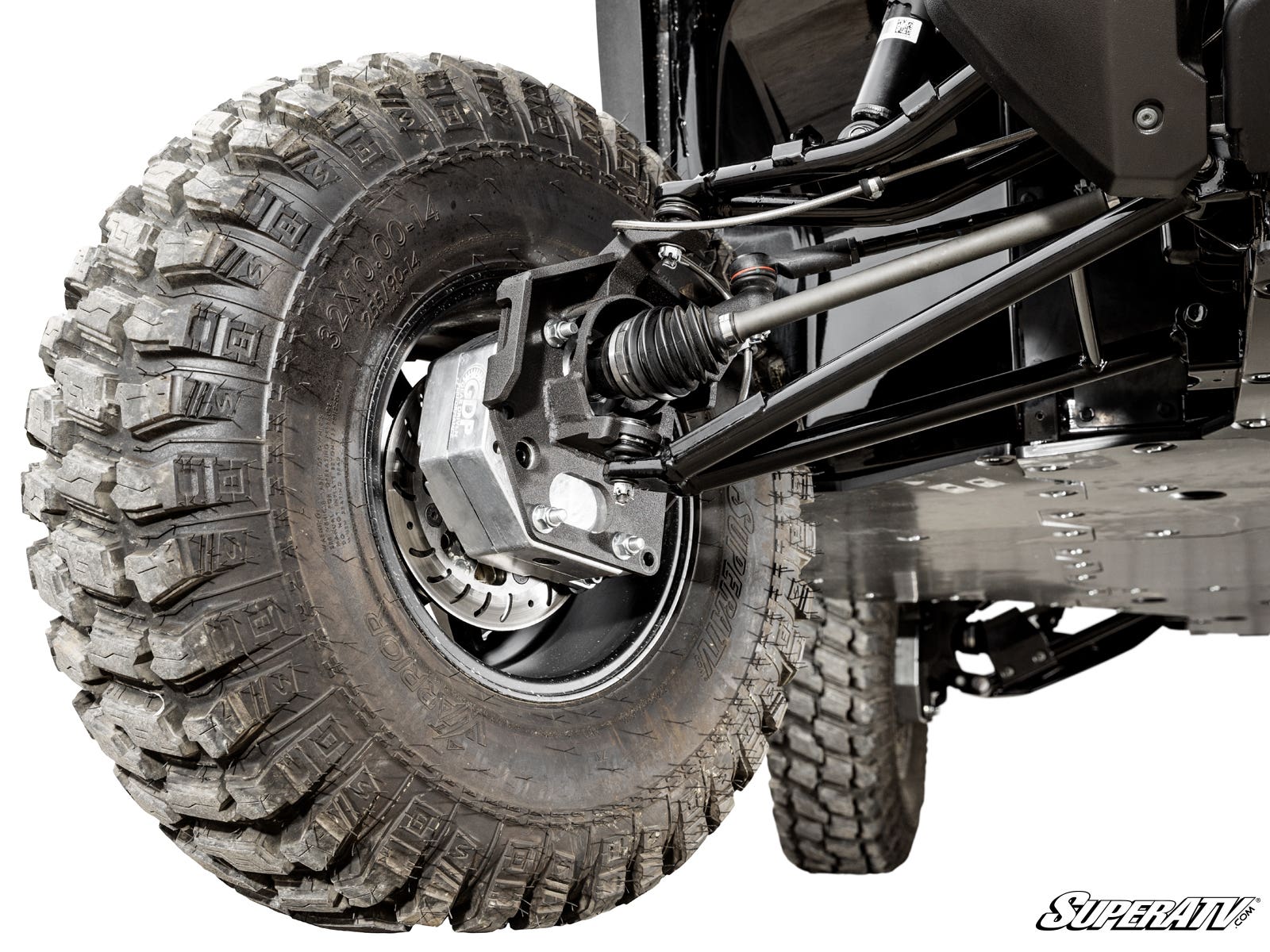

Take Your Ridge to the Next Level with GDP PortalsTurn your Kawasaki Ridge into a true powerhouse machine with SuperATV’s 4" GDP Portal Gear Lift. You get a lift and gear reduction all in one package, with a choice of 15% or 30% gear reduction and cast or billet housing. It can also help you run up to 31" tires.

Tackle Any TerrainA 15% gear reduction is a good choice for faster speeds and solid torque. If you’re running larger tires and hitting rough trails, the 30% gear reduction is the better option.

Protect Your Kawasaki Ridge’s DrivetrainGDP Portals put the gear reduction in the wheel hub instead of the transmission, helping reduce strain on your axles, prop shaft, differential, and transmission so you can get ultimate power with less worry about damage.

Ultimate StrengthThese portal boxes are available with cast or billet aluminum housings, and they use advanced steel alloy backing plates for added strength.

  • Housings are reinforced for gear retention and optimized for oil flow
  • Advanced steel alloy backing plates are stronger than chromoly
  • Enhance with Portal Blood gear oil formulated for GDP Portals
  • No gimmicks and no vents

Advanced Gaskets, Seals, and Bearings

  • Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
  • Sealed input gear and double-lipped output seal
  • 100% sealing coverage throughout to help prevent oil leaks
  • Double-angular contact output bearings to help prevent premature wear
  • Roller idler and drive bearings to maintain proper gear meshing

4" Portal Gear Lift Includes:

  • (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
  • (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
  • (4) Specialized steel alloy backing plates
  • (4) Steel caliper mounting plates
  • (4) Shims
  • (8) A-arm bushings
  • (4) Steel sleeves
  • (2) Parking brake brackets
  • (2) Drive gear spacers
  • Extended brake lines with parking brake and brake cable brackets
  • All required hardware including recessed castle nut socket

Max Tire Size Recommendations for 4" Portals

  • Up to 31" with stock suspension

If you need help figuring out which gear reduction is right for you, check out the portal gear reduction calculator. Max tire sizes are measured at full compression and full turn. The listed tire sizes are the largest we fit without rubbing; with minor trimming or a small amount of rub, larger tire sizes can be used.

Fitment:

  • Kawasaki Ridge HVAC : 2024+
  • Kawasaki Ridge HVAC Camo : 2025+
  • Kawasaki Ridge Limited : 2024+
  • Kawasaki Ridge Limited HVAC : 2024+
  • Kawasaki Ridge Ranch Edition : 2024+
  • Kawasaki Ridge XR HVAC : 2024+
  • Kawasaki Ridge XR Deluxe HVAC : 2025+
  • Kawasaki Ridge Crew HVAC : 2025+
  • Kawasaki Ridge Crew HVAC Camo : 2025+
  • Kawasaki Ridge Crew XR : 2025+
  • Kawasaki Ridge Crew XR HVAC : 2025+
  • Kawasaki Ridge Crew XR Limited HVAC : 2025+

Wheel Requirements:

  • 14" or larger wheel required
  • Cannot exceed 5" backspacing
  • Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
  • Not compatible with dual beadlock wheels

Features:

  • Available with billet or cast aluminum housing
  • Cool, quiet, precision-ground gears made from 9310 alloy billet steel
  • 1.5 in. diameter 4340 hardened steel drive shaft
  • Housings use advanced gaskets or O-rings that don’t let anything through
  • Universal hub fits all major bolt patterns
  • Gear reduction reduces stress on your drivetrain
  • Lighter than the competition
Fitment
Fitment

Product Specs

SKU:
PGH-4-112-151
Brand:
SuperATV
