SuperATV Kawasaki Ridge 6" Portal Gear Lift
SKU:
PGH6-4-112-301
SELECT FITMENT
See If This Product Fits Your Vehicle
- $3,099.95
- $3,099.95
$3,391.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
GDP Portals Turn Your Ridge into a Powerhouse

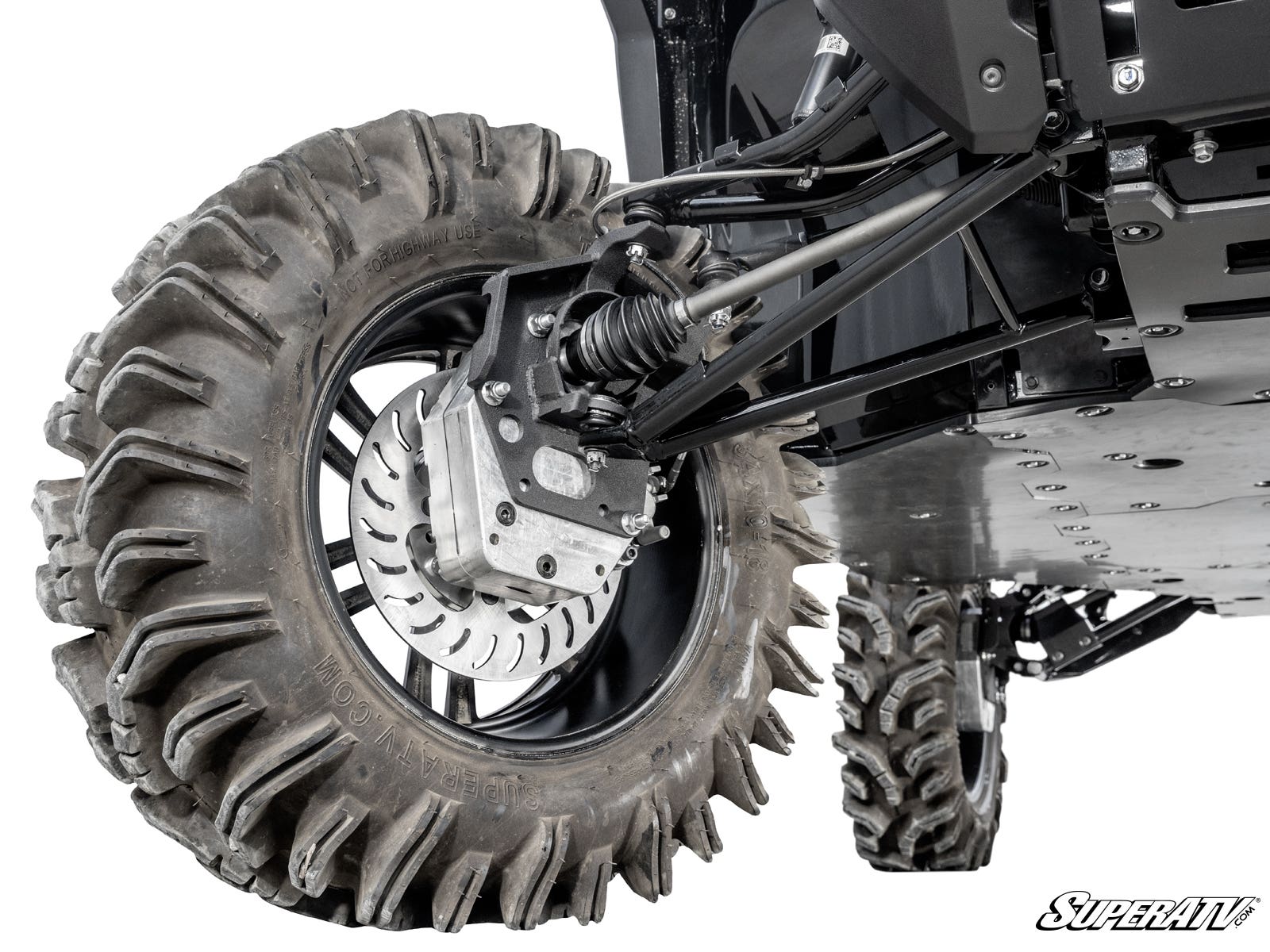

Your Kawasaki Ridge hasn’t reached its full potential—until you’ve installed GDP Portals. SuperATV’s 6" Portal Gear Lift gives you a lift and gear reduction in one package. Available with a cast or billet aluminum housing and a choice of 30% or 45% gear reduction, it lets you fit up to 33" tires while conquering tough terrain.
GDP Portals give your Kawasaki Ridge the power it needs to tackle mud, rock crawling, and larger tires. Choose a 45% gear reduction for maximum torque, or go with 30% if you want to keep your top speed while still boosting torque.
Adding more power is great—until it puts stress on your drivetrain. This 6" Portal Gear Lift places the gear reduction in the wheel hub instead of the transmission, helping protect your axles, prop shaft, differential, and transmission by reducing strain on them.
Built to take a beating, GDP Portals feature billet aluminum housings and heavy-duty 5/16" steel alloy backing plates. The housings are reinforced for gear retention and optimized for oil flow, and the advanced steel alloy backing plates are stronger than chromoly. You can also enhance performance with Portal Blood gear oil formulated for GDP Portals. There are no gimmicks and no vents because vents do more harm than good.
The portals use advanced gaskets and O-rings with excellent oil resistance and low deterioration rates, a sealed input gear and double-lipped output seal, 100% sealing coverage throughout, double-angular contact output bearings to prevent premature wear, and roller idler and drive bearings to maintain perfect gear meshing.
Features:
- Available with billet or cast aluminum housing
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- 1.5" diameter 4340 hardened steel drive shaft
- Housings use advanced gaskets or O-rings that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Lighter than the competition
6" Portal Gear Lift Includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (2) Parking break cable brackets
- (8) Shims
- (8) Steel sleeves
- (8) A-arm bushings
- (4) Drive gear spacers
- Extended brake lines
- All required hardware, including recessed castle nut socket
Kawasaki Ridge Max Tire Size Recommendations:
- Up to 33" tire size with stock suspension
If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator.
Max tire sizes are measured at full compression and full turn. The listed tire sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.
Fitment:
- Kawasaki Ridge HVAC : 2024+
- Kawasaki Ridge HVAC Camo : 2025+
- Kawasaki Ridge Limited : 2024+
- Kawasaki Ridge Limited HVAC : 2024+
- Kawasaki Ridge Ranch Edition : 2024+
- Kawasaki Ridge XR HVAC : 2024+
- Kawasaki Ridge XR Deluxe HVAC : 2025+
- Kawasaki Ridge Crew HVAC : 2025+
- Kawasaki Ridge Crew HVAC Camo : 2025+
- Kawasaki Ridge Crew XR : 2025+
- Kawasaki Ridge Crew XR HVAC : 2025+
- Kawasaki Ridge Crew XR Limited HVAC : 2025+
Wheel Requirements:
- 18" or larger wheel required
- 20" and larger wheels cannot exceed 5" backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
Product Specs
SKU:
PGH6-4-112-301
Brand:
SuperATV
