SuperATV Kawasaki Teryx KRX 1000 3" Long Travel Kit

SKU: LTK-K-KRX-3-001-02

SELECT FITMENT

See If This Product Fits Your Vehicle

$2,838.95
$2,838.95

Free Shipping

Free ground shipping on all orders over $99
Need Preinstalled Ball Joints?: I will do the work myself and reuse existing
Description

Overhaul Your KRX 1000

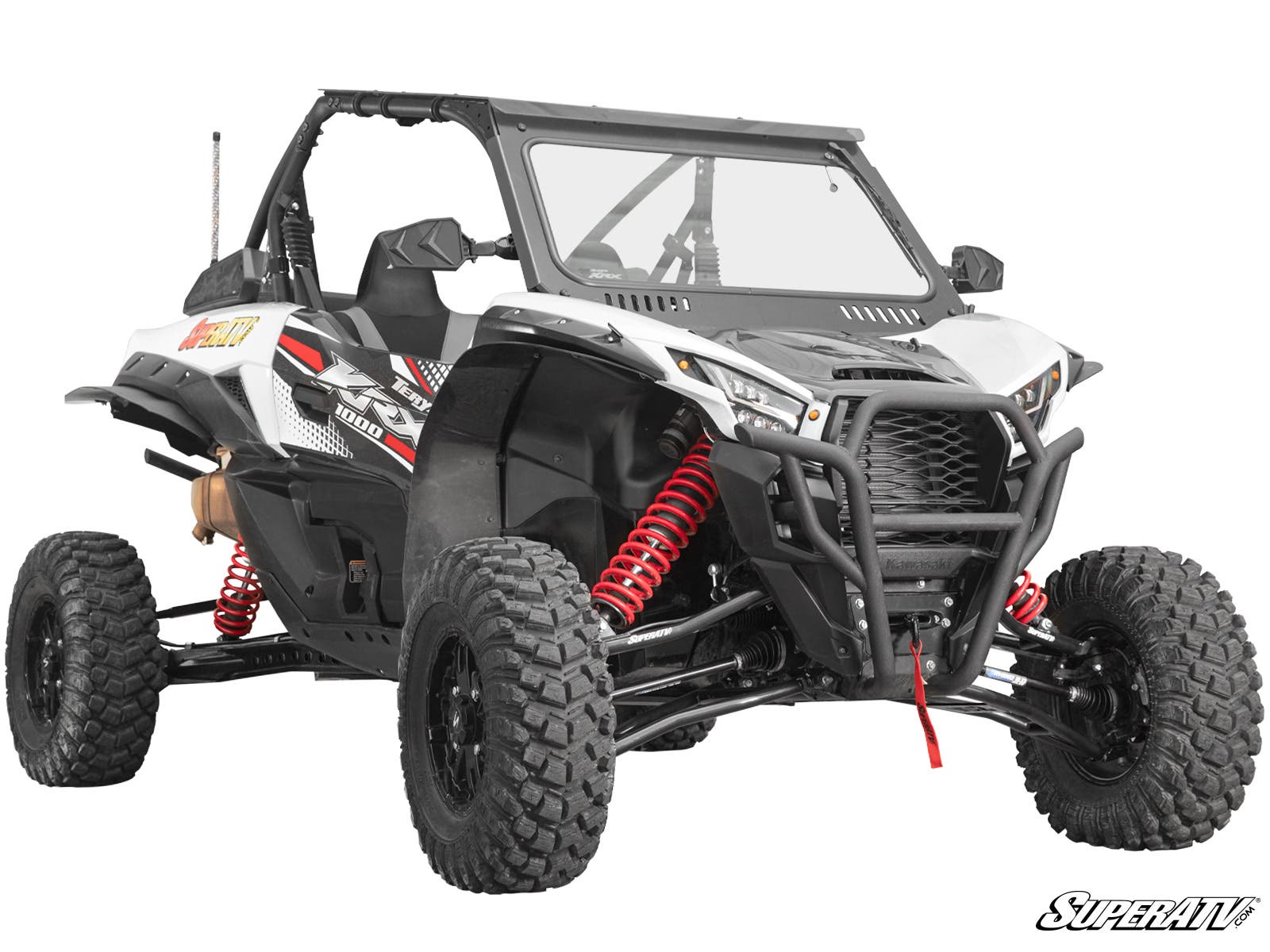

SuperATV’s 3" Long Travel Kit is a total suspension replacement that makes your Kawasaki Teryx KRX 1000 wider and more capable. It adds 3" to each side of your KRX, increasing your width by 6" overall, and makes room for tires as large as 34". You’re left with a reinforced and gusseted suspension that’s built to handle hard trail abuse.

This kit comes complete with high-strength A-arms, high-clearance steel trailing arms, and boxed high-clearance radius arms. The tubed A-arms feature fully adjustable pivot blocks so you can dial in camber, and the boxed radius arms are also adjustable with hefty 5/8" heim joints. Both are preadjusted to stock specs right out of the box. The trailing arms are made with 1/8" steel plating and internal gussets for long-lasting durability, and all suspension components have a bend for additional ground clearance.

It works with your stock ball joints, and you can also choose Heavy-Duty 4340 or Super-Duty 300M Ball Joints at checkout. If you order the ball joints, they’ll be installed in the arms at no extra cost.

The kit also includes Rhino 2.0 Axles with maximized CV joints and 4340 chromoly steel, plus a heavy-duty tie rod kit with 6061-T6 billet aluminum shafts and a hex design for added strength and style.

Note: Limit straps and track bars are not included. Kit utilizes stock ball joints.

  • Adds 3" to each side (6" overall)
  • Fits up to a 34" tire
  • Comes with everything you need to install and go
  • Preadjusted A-arms and radius arms for proper camber

Kit Includes:

  • (4) High-clearance tubed A-arms
  • (2) High-clearance rear trailing arms
  • (2) High-clearance boxed radius arms
  • (4) Rhino 2.0 Axles
  • (2) Heavy-duty tie rods and tie rod ends
  • All required bushings and sleeves
  • Extended brake lines
  • All required hardware
  • Kawasaki Teryx KRX 1000: 2020-2025
  • Kawasaki Teryx KRX 4 1000: 2023-2025
Fitment
Fitment

Product Specs

SKU:
LTK-K-KRX-3-001-02
Brand:
SuperATV
