SuperATV Kawasaki Teryx KRX 1000 8" Portal Gear Lift
SKU:
PGH8-4-88-451
SELECT FITMENT
See If This Product Fits Your Vehicle
- $4,189.95
- $4,189.95
$4,653.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99

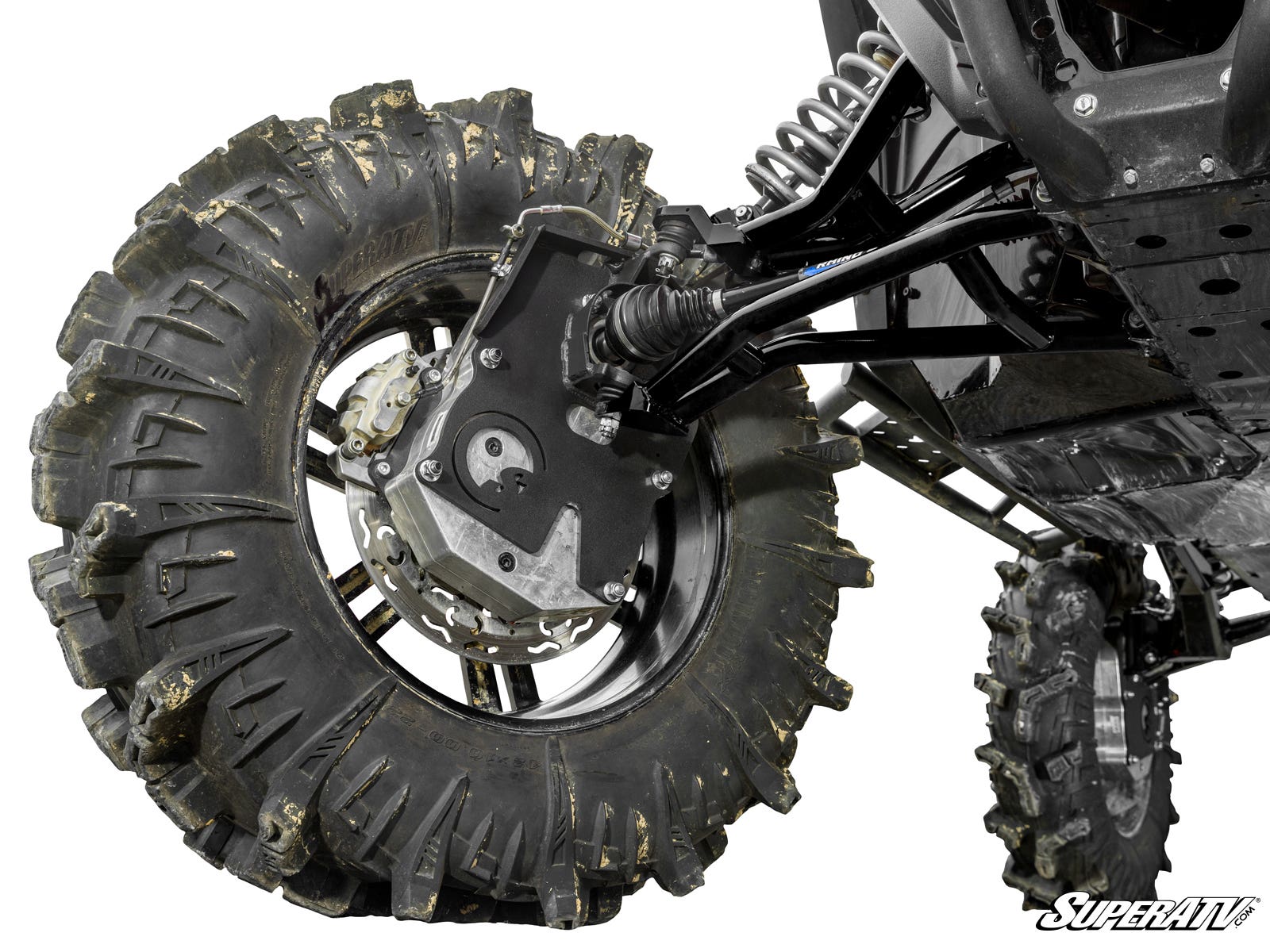

A Big Lift with Big Power
Your Kawasaki Teryx KRX 1000 isn’t supposed to be an average UTV. Install an 8" GDP Portal Gear Lift and it will be anything but. It gives you awesome ground clearance, boosts power with a 45%, 60%, or 70% gear reduction, and helps you dominate monster mud holes and rocky terrain.
What Is a Dual Idler?
After extensive testing and refinement, these dual idler gear portals feature two precision CNC-ground idler gears for a flawless fit, enhanced torque transfer, and superior performance. The idler gears are made from durable 9210 steel alloy for long-lasting strength.
Use a 45%, 60%, or 70% Gear Reduction to Master the Mud
With 8 inches of extra ground clearance and your choice of 45%, 60%, or 70% gear reduction built into the hubs, you get the torque needed to turn big tires through deep mud and tough trails.
A Gear Reduction Protects Your Drivetrain
Because the gear reduction is in the hub instead of the transmission, your axles, differential, prop shafts, and transmission face less wear and tear.
Stronger Housings by Design
Choose cast or billet aluminum housings built for strength in the areas that take the most force. The design is reinforced for gear retention and optimized for oil flow, and the system uses advanced steel alloy backing plates.
- Advanced steel alloy backing plates are stronger than chromoly
- Enhance with gear oil formulated for GDP Portals
- There are no gimmicks and no vents because vents do more harm than good
Advanced Gaskets and Seals
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout to help prevent oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
Reinforce Your UTV with a Frame Stiffener
These 8" portals are hardcore, so a heavy-duty frame stiffener is recommended to help your Kawasaki survive aggressive rides.
Top-Rated Customer Service
If you need help getting exactly what you need, there’s a dedicated team for portal support.
Kawasaki Teryx 8" Portal Gear Suspension Recommendations
- 41" max tire size: Stock suspension
- 45" max tire size: 1.5" Forward Offset A-Arms
Max tire sizes are measured at full compression and full turn. The listed sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tires may be used.
8" Portal Gear Lift Includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (8) Caliper mounting plate shims
- Left and right parking brake brackets
- Left and right brake cable brackets
- Steering stop kit
- Extended brake lines
- Ball joint press tool
- All required hardware, including recessed castle nut socket
- Frame stiffener (optional)
Features:
- Available with billet or cast aluminum housings
- Dual idler gear configuration maximizes strength
- Cool, quiet, precision ground gears made from 9310 alloy billet steel
- 1.5 in. forward and rear offset
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use advanced gaskets and rubber O-rings that help keep contaminants out
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Lighter than the competition
Fitment:
- Kawasaki Teryx KRX 1000: 2020-2025
- Kawasaki Teryx KRX 4 1000: 2023-2025
Wheel Requirements:
- 22" or larger wheel required
- Wheels cannot exceed 5" backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
Product Specs
SKU:
PGH8-4-88-451
Brand:
SuperATV
