SuperATV Kawasaki Teryx KRX High Clearance 1.5" Forward Offset A-Arms

SKU: AA-K-KRX-1.5-HC-02

SELECT FITMENT

See If This Product Fits Your Vehicle

$528.95
$528.95

Free Shipping

Free ground shipping on all orders over $99
Need Preinstalled Ball Joints?: I will do the work myself and reuse existing
Description

More Stability and Better Rides

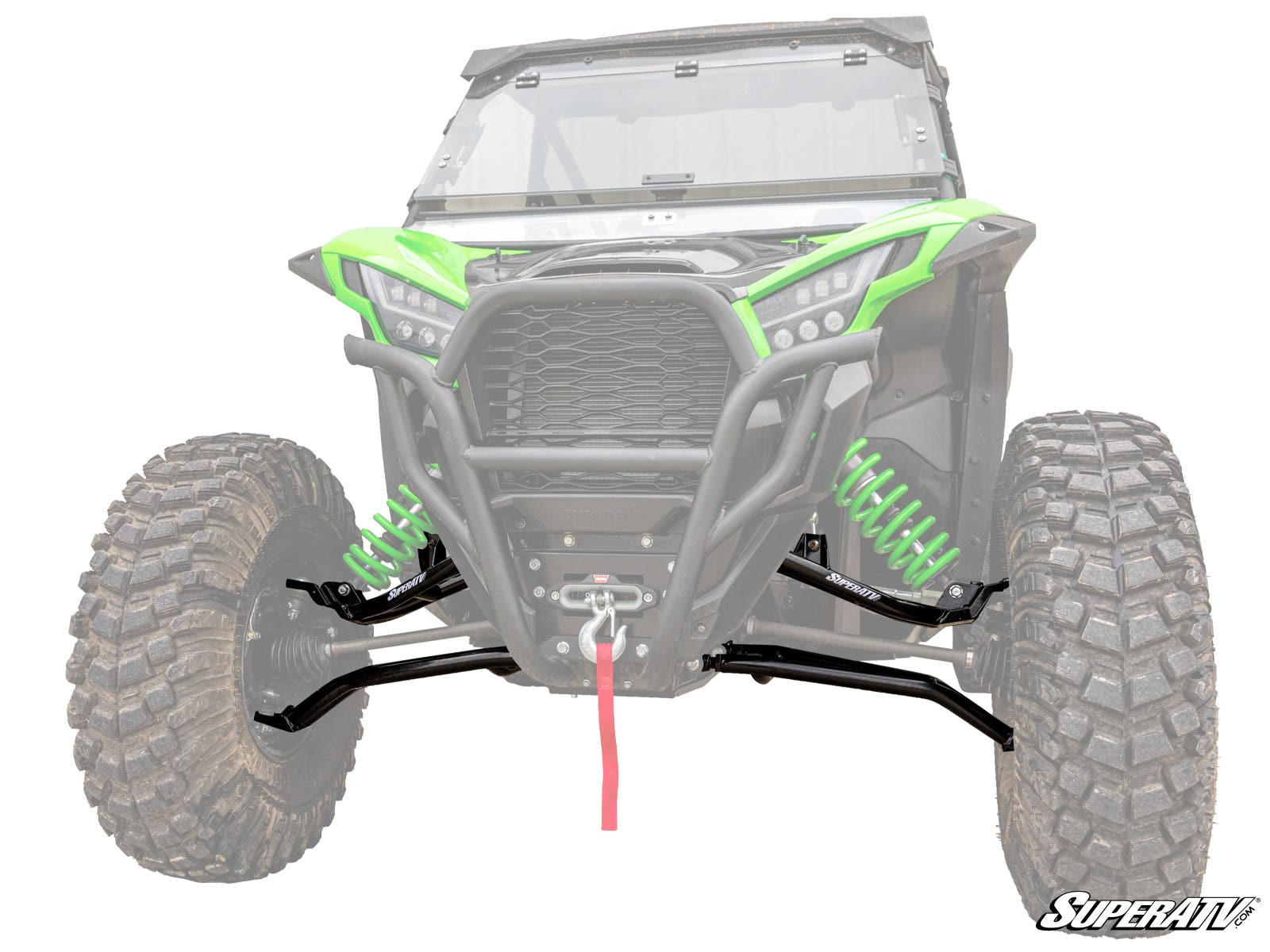

Upgrade your Kawasaki Teryx KRX 1000 with SuperATV’s High-Clearance 1.5" Forward Offset A-Arms for stronger suspension, more stability, and room for up to 34" tires. The 1.5" forward offset increases your wheelbase for a more stable ride over hills and large obstacles, while the high-clearance design helps keep you from getting hung up on rocks and trail obstacles.

Built with beefed-up 1.25" diameter steel tubing, these A-arms are 25% larger than stock for added strength. Adjustable pivot blocks let you dial in camber for your setup, and they come set to stock specifications out of the box. Built-in steering stops, a UV-resistant powder coat finish, and a lifetime warranty round out the package.

Features:

  • 1.5" forward offset
  • Fits up to a 34" tire
  • Made with 1.25" diameter steel tubing
  • High-clearance bends give you extra ground clearance without a lift
  • Adjustable pivot blocks for full camber adjustability
  • Built-in steering stops
  • UV-resistant powder coat finish
  • Backed by a lifetime warranty

Notes:

  • Bushings and sleeves are not provided in this kit.
  • You must re-use your stock ball joints if you do not select pre-installed ball joints at checkout.
  • Not compatible with SuperATV or OEM winch and winch mount installed.

Fitment:

  • Kawasaki Teryx KRX 1000: 2020-2024
  • Kawasaki Teryx KRX 4 1000: 2023-2024

Ball joint options:

  • Super Duty 300M Ball Joints: 300M grade steel, adjustable steel-on-steel design, grease zerk, and 2.25x stronger than stock.
  • Heavy Duty Ball Joints: Hardened 4340 VAR steel with zinc plating, grease zerks, adjustable design, and double the pressure capacity of an OEM ball joint.
  • Keller Ball Joints: Two-piece greaseable, rebuildable design with chromoly steel stud and tool-steel body.
