SuperATV Kawasaki Teryx S 4" Portal Gear Lift

SKU: PGH-4-34-152#TRX

SELECT FITMENT

See If This Product Fits Your Vehicle

$2,649.95
$2,649.95
$2,941.95

Free Shipping

Free ground shipping on all orders over $99
Portal Housing Material: Cast
Portal Gear Reduction: 15%
Description

Gen 3 Portals Are Geared for All

Get a 4" Portal Gear Lift for your Kawasaki Teryx S and choose the setup that matches your riding style. Available with either 15% or 30% gear reduction and your choice of cast or billet aluminum housings, these portals are built to fit your machine and your needs.

GDP—The Most Trusted Name in Portals

SuperATV’s GDP Portals are engineered with industry-leading technology and tested extensively in the field and lab to deliver dependable performance and durability.

Perfect for Mud

The extra 4" of lift helps you clear deep mud and makes room for larger tires, while the 15% or 30% gear reduction adds torque to help you power through tough terrain.

A Gear Reduction That Protects Your Drivetrain

By placing the gear reduction directly in the hub instead of the drivetrain, these portals reduce stress on your axles, prop shaft, transmission, and driveshaft.

Learn more about how tire size and gear reduction can unleash your machine’s potential.

Top-Notch Gear Material

These portals use precision-ground 9310 alloy steel gears for quiet operation and smooth performance.

Stronger Housing by Design

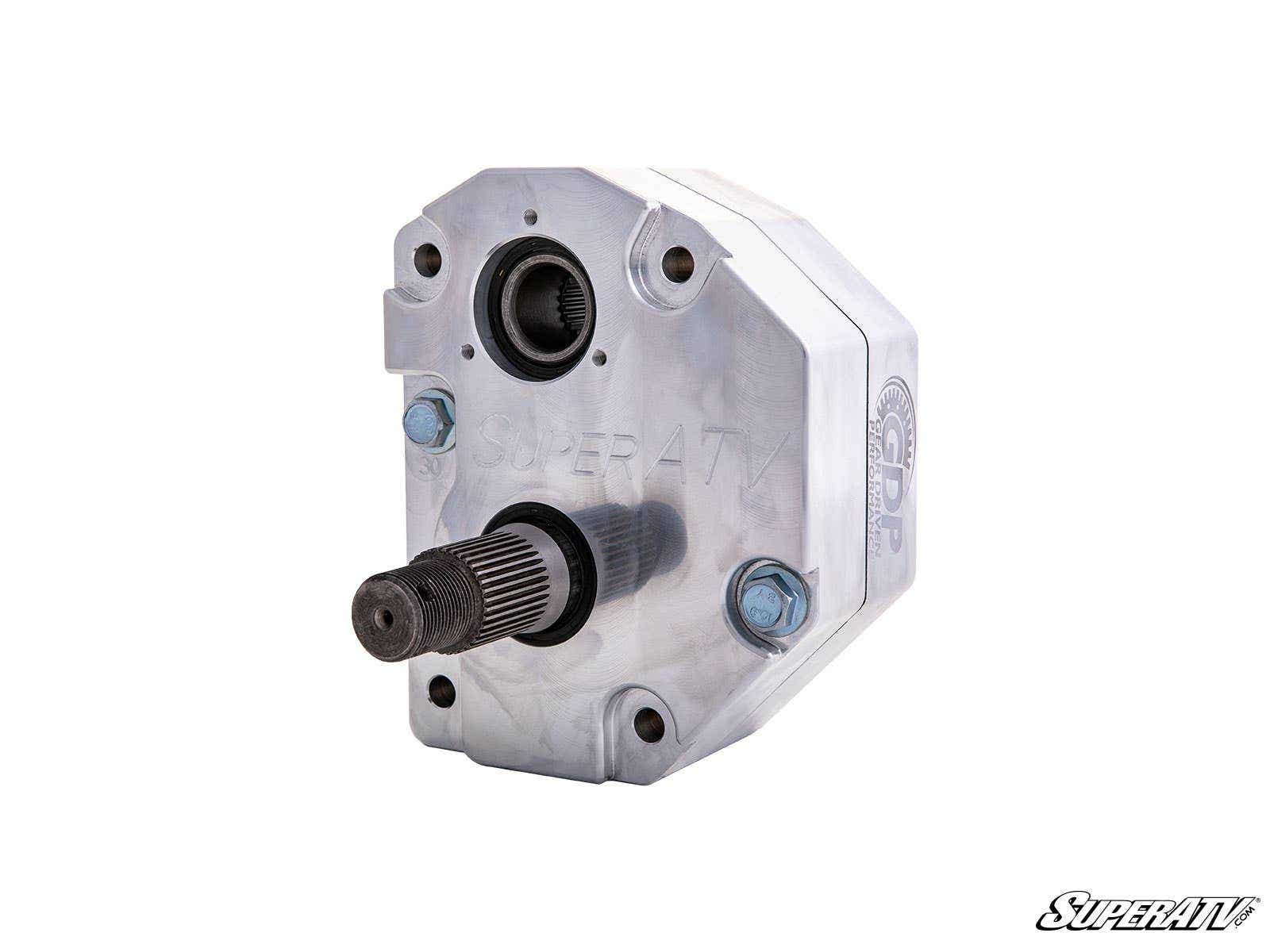

Choose from reinforced cast aluminum or USA-made billet aluminum housings with a CNC-machined finish. Both options are designed for strength and reliable oil flow, with no vents.

  • Reinforced in all the right places
  • Designed with better oil flow and gearing forces in mind
  • No vents, because testing showed they do more harm than good

Unbeatable Portal Backing Plates

The 5/16" backing plates are made from a specialized steel alloy for high-force applications.

Advanced Gaskets and Seals

  • Advanced gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
  • Sealed input gear and double-lipped output seal
  • 100% sealing coverage throughout to help prevent oil leaks

Nothing But the Best Bearings

Premium bearings keep the portal gear lift running smoothly in all conditions, including a strong roller bearing for the idler gear and a double-angular contact bearing for the output.

Universal Hubs and Slotted Rotors

Precision-ground stainless steel slotted rotors help keep braking consistent and cool. Universal hubs fit 4/156, 4/137, 4/115, and 4/110 bolt patterns, and the tapered output shaft provides a secure lock.

Top-Rated Customer Service

If you need help choosing the right setup, SuperATV’s portal support team is available to help.

  • Available with billet or cast aluminum housings
  • Cool, quiet, precision-ground gears made from 9310 alloy billet steel
  • Increases width by 4 in. per side (8 in. total)
  • 1.5 in. diameter 4340 hardened steel driveshaft
  • Housings use advanced gaskets that don’t let anything through
  • Universal hub fits all major bolt patterns
  • Gear reduction reduces stress on your drivetrain
  • Weighs 194 lb. total, which is 50+ lb. lighter than the competition

4" Portal Gear Lift Includes:

  • (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
  • (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
  • (4) Specialized steel alloy backing plates
  • (4) Steel caliper mounting plates with spacers
  • (2) Steel steering arms
  • Extended brake lines with parking brake and brake cable brackets
  • All required hardware, including recessed castle nut socket

Max Tire Size Recommendations for 4" Portal Gear Lift

  • Up to 29" with stock suspension

If you need help figuring out which gear reduction is right for you, check out our .

Max tire sizes are measured at full compression and full turn. The given tire sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.

Fitment

  • Kawasaki Teryx S : 2021+
  • Kawasaki Teryx 4S : 2021+

Wheel Requirements:

  • 14" or larger wheel required
  • 14" wheels cannot exceed 4-1/2" backspacing
  • 15" and larger wheels cannot exceed 5" backspacing
  • Not compatible with dual beadlock wheels
  • Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer

NOTE: Factory Teryx wheels are hub-centric. When using these portal gear lifts, you must run aftermarket lug-centric wheels. Almost all aftermarket wheels are lug-centric.

Patent # 11,299,042
