SuperATV Kawasaki Teryx S 6" Portal Gear Lift

SKU: PGH6-4-34-302#TRX

SELECT FITMENT

See If This Product Fits Your Vehicle

$3,099.95
$3,099.95
$3,391.95

Free Shipping

Free ground shipping on all orders over $99
Portal Housing Material: Cast
Portal Gear Reduction: 30%
Description

Gen 3 Portals Are Built for All

Customize your Kawasaki Teryx S with SuperATV’s GDP 6" Portal Gear Lift for added ground clearance, room for bigger tires, and your choice of a 30% or 45% gear reduction. You can also choose between cast or USA-made billet aluminum housings for exceptional strength.

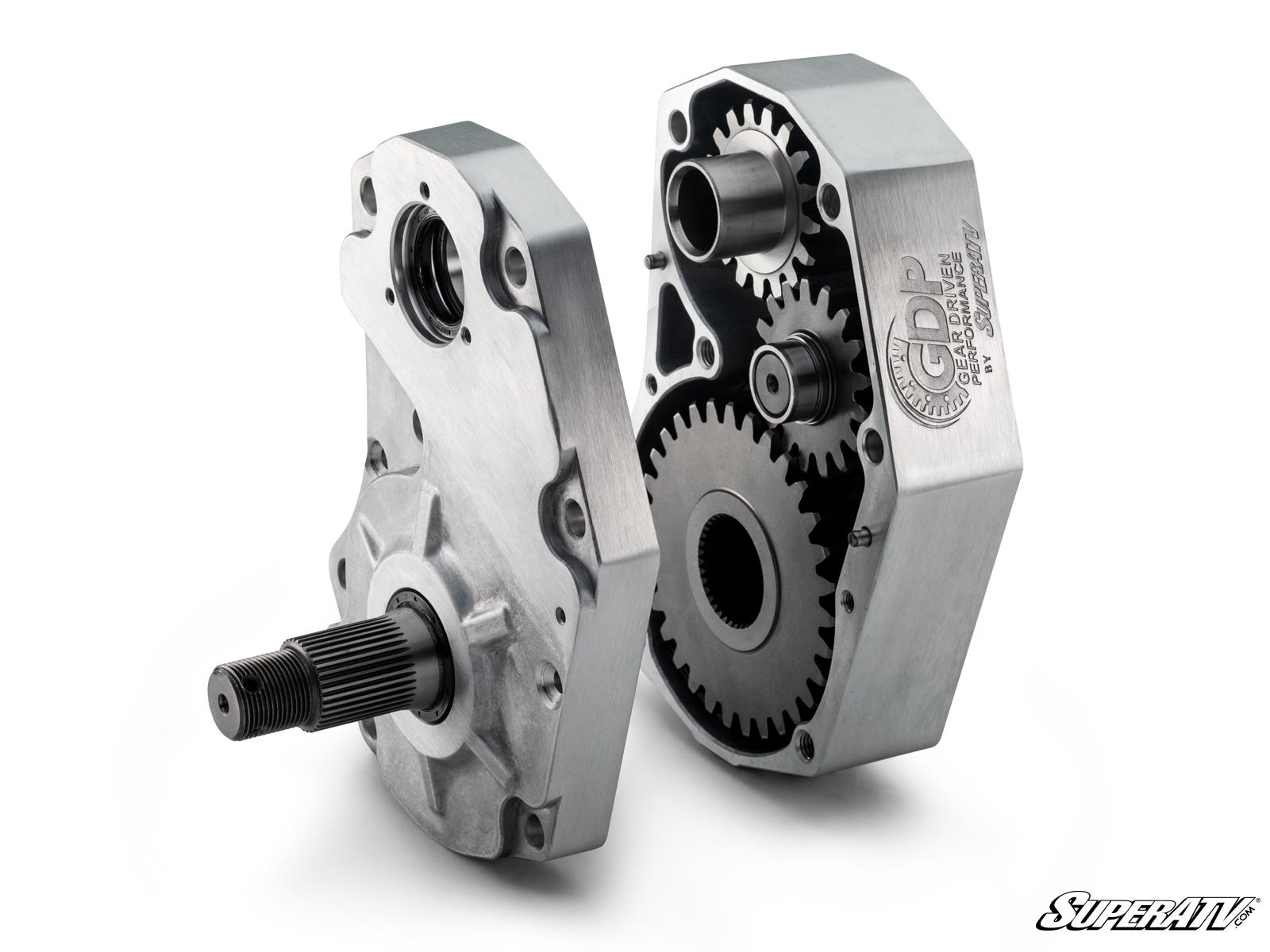

GDP portals place the gear reduction in the hub to reduce strain on your axles, prop shaft, and transmission while helping your drivetrain last longer. They’re built with premium 9310 alloy steel gears that are precision ground for quiet, smooth operation.

The portal housings are reinforced and designed for better oil flow and gearing forces. Both cast and billet housings use advanced gaskets, a sealed input gear, and a double-lipped output seal for strong sealing coverage. The backing plates are made from a 5/16"-thick advanced steel alloy for added durability.

These portals also feature roller bearings for the idler gear and a double-angular contact output bearing built to handle heavy loads. Precision-ground stainless steel slotted rotors, universal hubs with multiple bolt patterns, and a tapered output shaft help deliver secure fitment and reliable braking performance.

  • Available with billet or cast aluminum housing
  • Cool, quiet, precision-ground gears made from 9310 alloy steel
  • Increases width by 4 in. per side (8 in. total)
  • 1.5 in. diameter 4340 hardened steel driveshaft
  • Advanced gaskets help keep contaminants out
  • Universal hub fits all major bolt patterns
  • Gear reduction reduces stress on your drivetrain
  • Weighs 224 lb. total, 25+ lb. lighter than the competition

Max Tire Size Recommendations for 6" Portal Gear Lift

  • Up to 32" tire size with stock suspension setup

If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator. Max tire sizes are measured at full compression and full turn. The given tire sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.

Wheel Requirements:

  • 18" or larger wheel required
  • 18" wheels cannot exceed 4-1/2" backspacing
  • 20" and larger wheels cannot exceed 5" backspacing
  • Wheels need a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer

Fits:

  • Kawasaki Teryx S : 2021+
  • Kawasaki Teryx 4S : 2021+

Portal Gear Lift Includes:

  • (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
  • (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
  • (4) Specialized steel alloy backing plates
  • (4) Steel caliper mounting plates with spacers
  • (2) Steel steering arms
  • Extended brake lines with parking brake and brake cable brackets
  • All required hardware, including recessed castle nut socket

Patent # 11,299,042
