SuperATV Polaris General 8" Portal Gear Lift
SKU:
PGH8-1-44-451
SELECT FITMENT
See If This Product Fits Your Vehicle
- $4,189.95
- $4,189.95
$4,653.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99

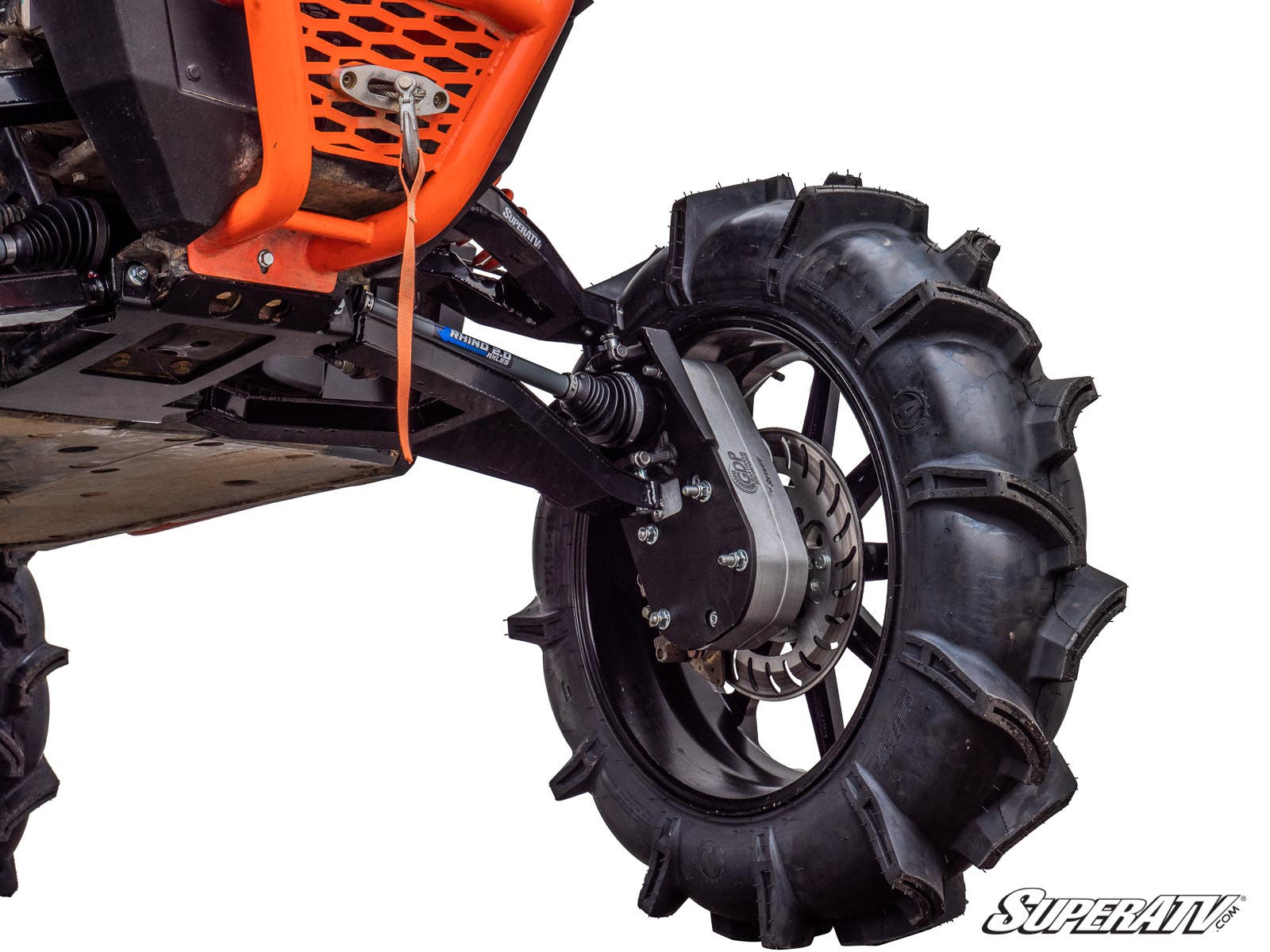

Gear Down and Go Big Your Polaris General can get work done when it needs to, but if you want more ground clearance and the torque to run bigger tires in mud, SuperATV’s 8" GDP Portal Gear Lift takes it to another level. With 45% or 60% gear reduction, you can clear bigger rocks and power through thick mud with less strain on your machine.
GDP is a proven portal system trusted by riders with hundreds of thousands of ride hours on the trail and in the mud. The gear reduction is placed in the portal hub, which helps reduce stress on your axles, differential, prop shaft, and transmission so you can ride harder than stock with less wear.
Available with billet or cast aluminum housings, this kit features precision-ground 9310 alloy steel gears for quiet operation, a 1.5" forward and rear offset, and an increase in width of 4" per side (8" total). It also includes a 1.5" diameter 4340 hardened steel driveshaft, advanced gaskets and rubber O-rings, universal hubs, and slotted stainless steel rotors.
- Available with billet or cast aluminum housing
- Cool, quiet, precision-ground gears made from 9310 alloy steel
- 1.5" forward and rear offset
- Increases width by 4" per side (8" total)
- 1.5" diameter 4340 hardened steel driveshaft
- Advanced gaskets and rubber O-rings for a better seal
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
Kit includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- Extended brake lines
- All required hardware, including recessed castle nut socket
Notes: A frame stiffener is highly recommended for this 8" portal kit. Patent #11,299,042.
Fitment: Polaris General 2016+, Polaris General 4 2017+Does not fit: 2020+ Polaris General XP 1000 or XP 4 1000
Wheel Requirements: 22" or larger wheel required Wheels cannot exceed 5" backspacing Wheels need a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
Polaris General Portal Gear Suspension Recommendations:
- 34" tires: Stock
- 35" tires: 3" Lift Kit
- 37" tires: 1.5" Forward Front A-Arms
- 38" tires: 1.5" Forward Front A-Arms and 3" Lift Kit
- 48" tires: 7-10" Lift Kit
If you need help figuring out which gear reduction is right for you, check out the portal gear reduction calculator.
Product Specs
SKU:
PGH8-1-44-451
Brand:
SuperATV
