SuperATV Polaris Ranger 1000 6" Portal Gear Lift
SKU:
PGH6-1-34-303#1K
SELECT FITMENT
See If This Product Fits Your Vehicle
- $3,099.95
- $3,099.95
$3,391.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Gen 3 Portals Break the Rules
SuperATV’s GDP 6" Portal Gear Lift for the Polaris Ranger 1000 is built for riders who want more capability, more strength, and more options. Choose a 30%, 45%, or 60% gear reduction, and add dual idler gears for maximum durability. Whether you ride mud, trails, dunes, or around the property, these portals are designed to deliver better performance and put your torque back where you need it.

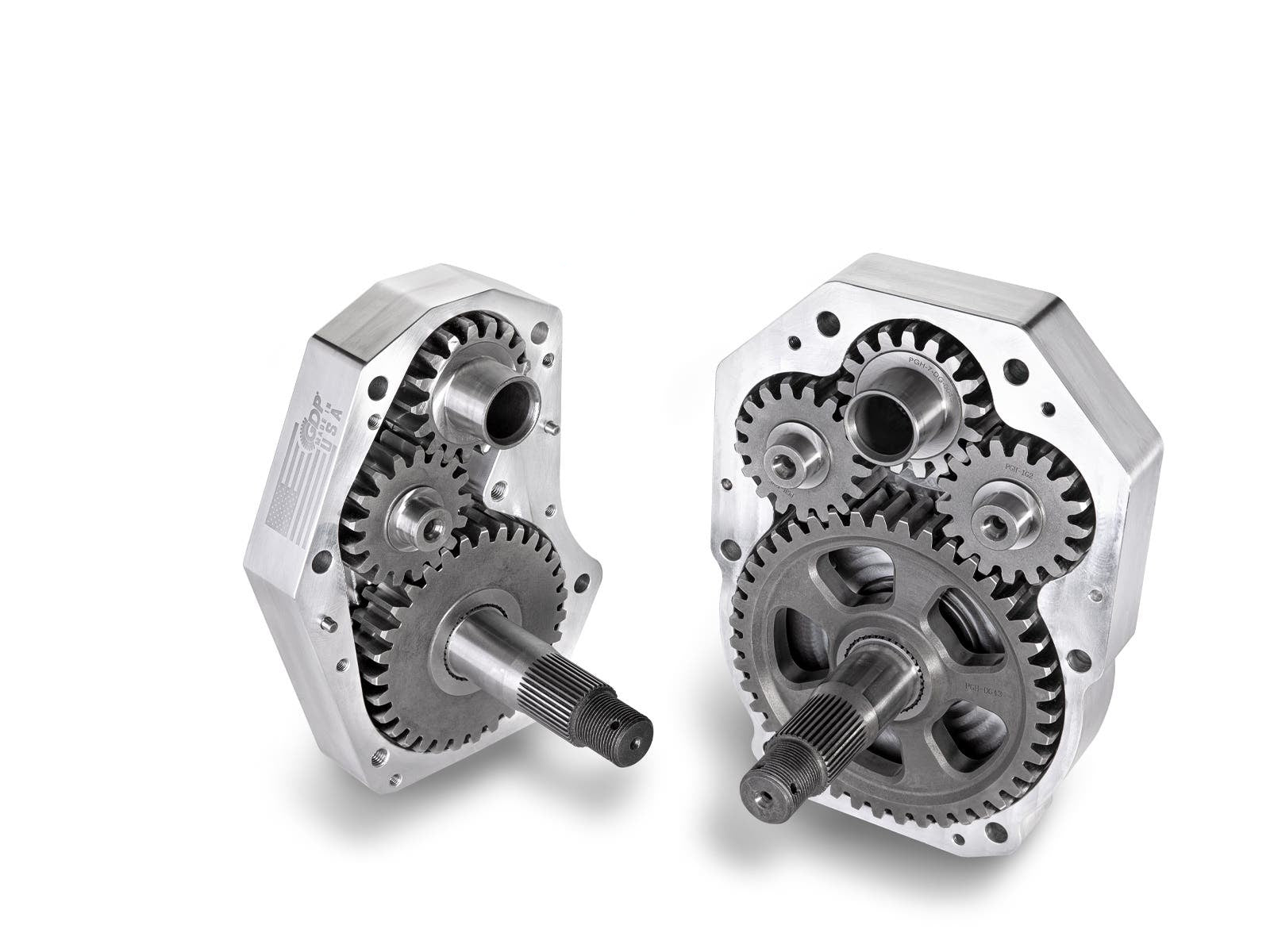

What is a Dual Idler?
Dual idler gear portals use a second idler gear in the portal box to spread load over more surface area for stronger torque transfer. SuperATV’s gears are precision CNC ground and made from 9310 steel alloy for reliable performance and strength.
Why Portals?
Portals help reduce stress on your drivetrain by placing gear reduction in the hub. That means less strain on your axles, prop shaft, differential, and transmission, which can help extend component life.
Features
- Available with billet or cast aluminum housings
- Dual idler gear configuration maximizes strength
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- 1.5 in. diameter 4340 hardened steel drive shaft
- Advanced gaskets or O-rings help keep contaminants out
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Dual idler gear configuration adds a 1" front and rear offset—2" total extension
- Lighter than the competition
What’s Included
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets or O-rings, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (2) Steel steering arms
- Extended brake lines
- All required hardware, including recessed castle nut socket
- Frame stiffener must be selected at checkout
Max Tire Size Recommendations for 6" Portal Gear Lift
- Up to 30": Stock suspension
- 32" to 33": 1.5" Forward Front A-Arms
- 34": 1.5" Forward front A-Arms and 3" Lift Kit
- 35" to 38": 6" Lift Kit
Max tire sizes are measured at full compression and full turn. The given tire sizes are the largest fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.
If you need help choosing the right gear reduction, use the portal gear reduction calculator.
Fitment
- Polaris Ranger 1000 : 2020+
- Polaris Ranger 1000 Crew : 2020+
NOTE: If you plan on installing this portal kit with a preexisting RIDE System Rear Steering Kit or plan on adding one in the future, call us at 855-743-3427. We’ll make sure you get the correct compatible parts.
Wheel Requirements:
- 18" or larger wheel required
- 18" wheels cannot exceed 4-1/2" backspacing
- 20" and larger wheels cannot exceed 5" backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
Product Specs
SKU:
PGH6-1-34-303#1K
Brand:
SuperATV
