SuperATV Polaris Ranger Full-Size 800 4" Portal Gear Lift

SKU: PGH-1-2-151

SELECT FITMENT

See If This Product Fits Your Vehicle

$2,649.95
$2,649.95
$2,941.95

Free Shipping

Free ground shipping on all orders over $99
Model: 2 Seat
Do you have a lift kit?: Without 6 inch Lift Kit
Portal Setup: Cast Housing, 15% Gear Reduction
Description

Gen 3 Portals are Geared for All

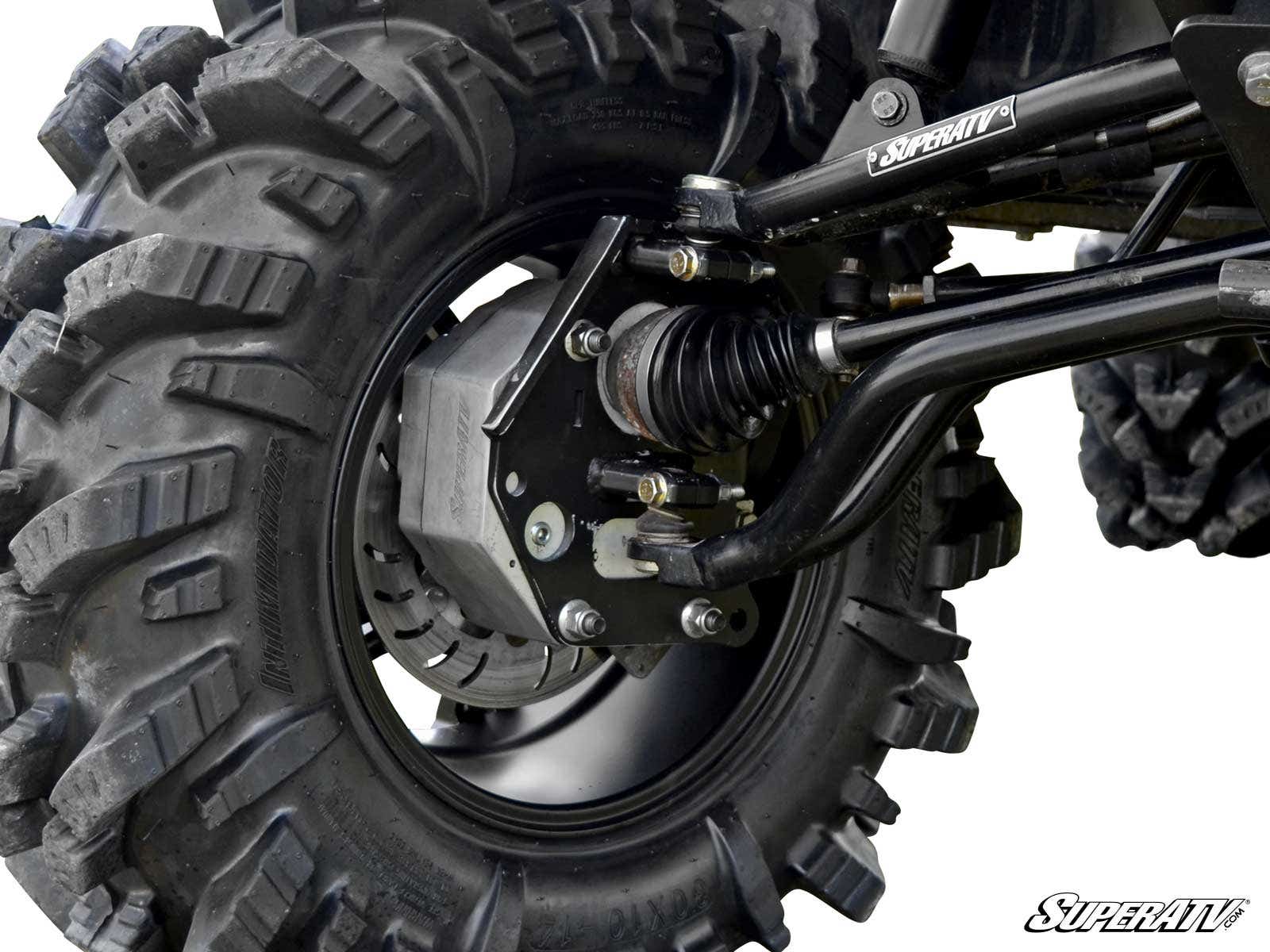

SuperATV’s GDP 4" Portal Gear Lift for the Polaris Ranger Full-Size 800 is designed to give you the gear reduction that fits how you ride. Available with 15% or 30% gear reductions and billet or aluminum housings, you can choose the setup that works best for mud, rocks, farming, or trails.

Perfect for Mud — Choose a 30% gear reduction for more torque to turn bigger tires and power through thick mud while still maintaining usable road and trail performance.

Perfect for Rocks — With 4" portals and a 30% gear reduction, you get the torque and clearance needed to crawl over rocks and run bigger tires with less risk of damaging your skid plate.

Perfect for Farming — A 15% gear reduction gives your Ranger the clearance to get over brush, sticks, and debris, plus the torque to push through ruts and ditches while towing and cruising between fields.

Perfect for Trails — Pair 4" portals with a 15% gear reduction for extra lift, more torque, and easier handling of hills, ruts, creeks, and larger tires.

about how tire size and gear reduction can unleash your machine’s potential.

Better Gears — Precision-ground 9310 billet steel alloy gears deliver strength, high-speed performance, and cool, quiet operation.

Stronger Housings by Design — Choose cast aluminum or USA-made, CNC-machined 6061 billet aluminum housings engineered for strength and reliability.

  • Reinforced in all the right places
  • Designed with oil flow and gearing forces in mind
  • No vents, which SuperATV says can do more harm than good

Advanced Gaskets and Seals

  • Advanced gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
  • Sealed input gear and double-lipped output seal
  • 100% sealing coverage to help prevent oil leaks

Features

  • Available with billet or cast aluminum housing
  • Cool, quiet, precision ground gears made from 9310 alloy billet steel
  • Increases width by 4 in. per side (8 in. total)
  • 1.5 in. diameter 4340 hardened steel drive shaft
  • No leak bearings and seals
  • Universal hub fits all major bolt patterns
  • Comes complete with all hardware, backing plates, brake lines, and instructions

Polaris Ranger Full Size 800 Portal Gear Reduction Recommendations

  • Up to 27" tires: stock or 2" lift kit with 15% reduction
  • 28"-29" tires: 1" forward front A-arms with 15% reduction
  • 28"-29" tires: 1" forward front A-arms and 2" lift kit with 15% reduction
  • 30"-34" tires: 6" lift kit with 30% reduction

Gear reductions listed are general guidelines to maintain factory top speed. Installing a larger than recommended gear reduction will result in extra torque and lower top speed. Give us a call for more information.

Fitment

  • Polaris Ranger Full-Size 800: 2009-2014
  • Polaris Ranger Full-Size 800 Crew: 2009-2014

Wheel Requirements:

  • 14" or larger wheel required
  • Cannot exceed 5" backspacing
  • Not compatible with dual beadlock wheels
  • Wheels need to have a center hole of at least 3.25" (82.55 mm) or require a 1" wheel spacer

Patent # 11,299,042
