SuperATV Polaris Ranger XD 1500 4" Portal Gear Lift

SKU: PGH-1-107-151

SELECT FITMENT

See If This Product Fits Your Vehicle

$2,649.95
$2,649.95
$2,941.95

Free Shipping

Free ground shipping on all orders over $99
Do you need a frame stiffener?: No, I already have a frame stiffener.
Portal Setup: Cast Housing, 15% Gear Reduction, Single Idler
Description

Get more done with GDP Portals

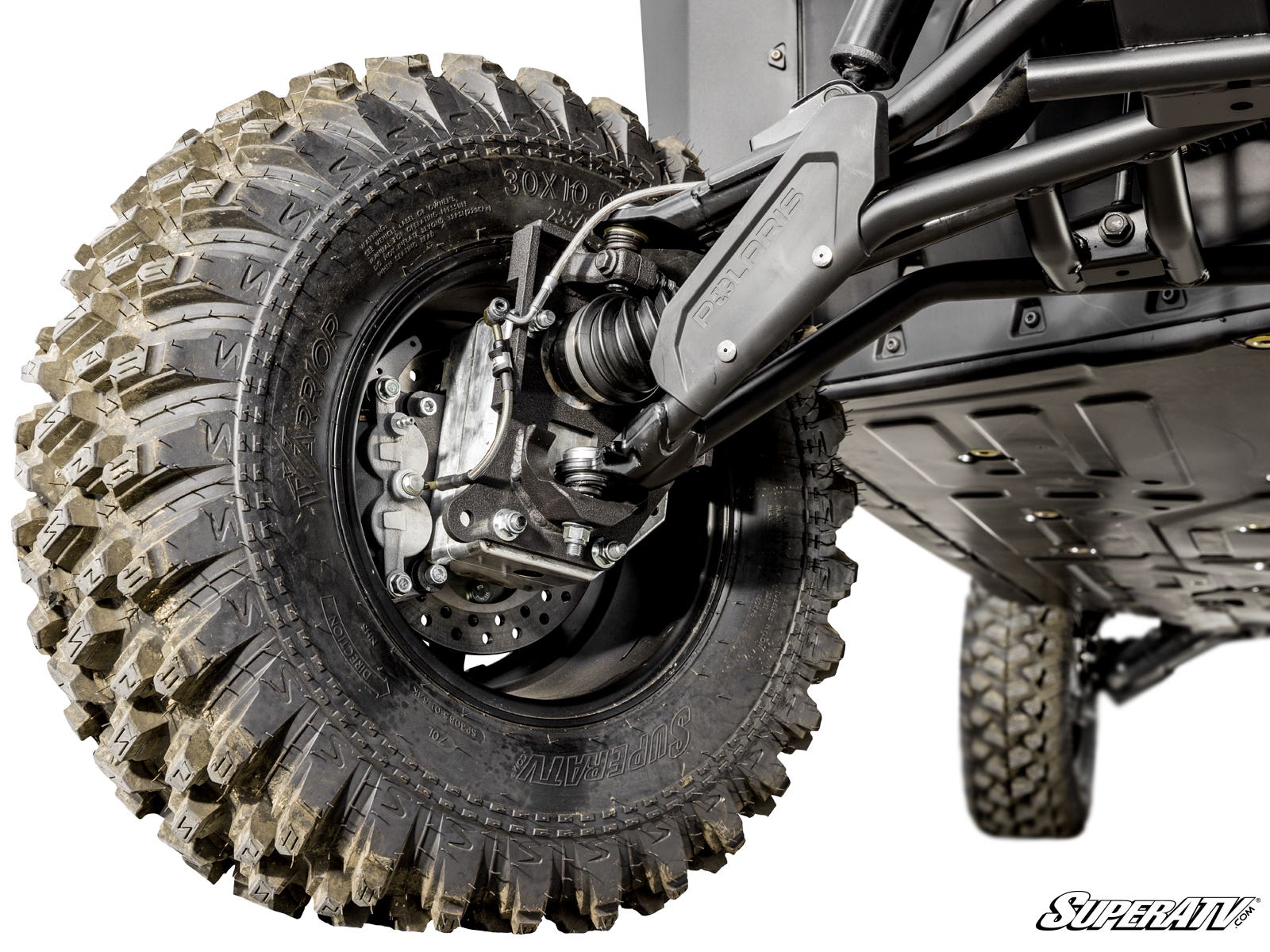

Give your Polaris Ranger XD 1500 more power and performance with SuperATV’s 4" GDP Portal Gear Lift. Choose a 15% or 30% gear reduction to boost torque, make towing easier, and improve acceleration. The 4" lift adds ground clearance for bigger obstacles and larger tires while maintaining OEM suspension angles.

  • Gives you a 4" lift and gear reduction in one package
  • Choose a 15% or 30% gear reduction
  • Maintains OEM suspension angles

What is a dual idler?

By placing a second idler gear in the portal box, the load is spread over twice as much surface area for more reliable torque transfer and a stronger gear set. Precision CNC grinding ensures the gears mate perfectly, and the gears are made from 9310 steel alloy.

Get the exact performance you need

Choose a 15% gear reduction to maintain a high top speed while still getting more torque. Choose a 30% gear reduction for maximum torque, easier hauling, and stronger takeoff from a dead stop. It’s also a great choice for bigger tires.

Portals protect your drivetrain

Putting the lift and gear reduction right in the wheel hub helps your entire drivetrain benefit from the reduction while keeping your axles at factory angles. That means less wear and tear across your components.

The toughest Ranger XD 1500 portals you can get

The cast and 6061 billet aluminum housings are designed for hard work and hard rides, and they’re backed by advanced steel backing plates for strength. The housings are reinforced for gear retention and optimized for oil flow.

  • Advanced steel alloy backing plates are stronger than chromoly
  • Enhance with Portal Blood gear oil formulated for GDP Portals
  • No vents, because vents do more harm than good

Advanced gaskets, seals, and bearings

  • Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
  • Sealed input gear and double-lipped output seal
  • 100% sealing coverage throughout to help prevent oil leaks
  • Double-angular contact output bearings to prevent premature wear
  • Roller idler and drive bearings to maintain perfect gear meshing

Complete it with a frame stiffener

A 4" portal gear lift and larger tires add extra stress to the frame, so SuperATV recommends installing a frame stiffener to help keep your machine strong and reliable under heavy use.

4" Portal Gear Lift includes

  • (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
  • (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
  • (4) Specialized steel alloy backing plates
  • (4) Steel caliper mounting plates with spacers
  • (2) Steel steering arms
  • Extended brake lines with parking brake
  • All required hardware including recessed castle nut socket
  • Frame stiffener optional

Max tire size recommendations for 4" Portal Gear Lift

  • 30" max tire size with stock suspension
  • Max tire sizes are measured at full compression and full turn
  • The listed tire sizes are the largest that fit without rubbing; larger tires may fit with minor trimming or a small amount of rub
  • If you need help figuring out which gear reduction is right for you, check out our

Features

  • Available with billet or cast aluminum housing
  • Dual idler gear configuration maximizes strength
  • Cool, quiet, precision-ground gears made from 9310 alloy billet steel
  • 1.5 in. diameter 4340 hardened steel drive shaft
  • Housings use gaskets or O-rings that don’t let anything through
  • Universal hub fits all major bolt patterns
  • Gear reduction reduces stress on your drivetrain
  • Dual idler gear configuration adds a 3/4" front and rear offset, 1.5" total extension
  • Lighter than the competition

Fitment

  • Ranger XD 1500 Premium: 2024+
  • Ranger XD 1500 Northstar Premium: 2024+
  • Ranger XD 1500 Northstar Ultimate: 2024+
  • Ranger Crew XD 1500 Premium: 2024+
  • Ranger Crew XD 1500 Northstar Premium: 2024+
  • Ranger Crew XD 1500 Northstar Ultimate: 2024+

Wheel requirements

  • 14" or larger wheel required
  • Cannot exceed 5" backspacing
  • Not compatible with dual beadlock wheels
  • 1" wheel spacers required on stock wheels

Patent # 11,299,042
