SuperATV Polaris Ranger XD 1500 6" Lift Kit

SKU: LK-P-RANXD-6-02

SELECT FITMENT

See If This Product Fits Your Vehicle

$3,499.95
$3,499.95

Free Shipping

Free ground shipping on all orders over $99
Need Preinstalled Ball Joints?: I will do the work myself and reuse existing

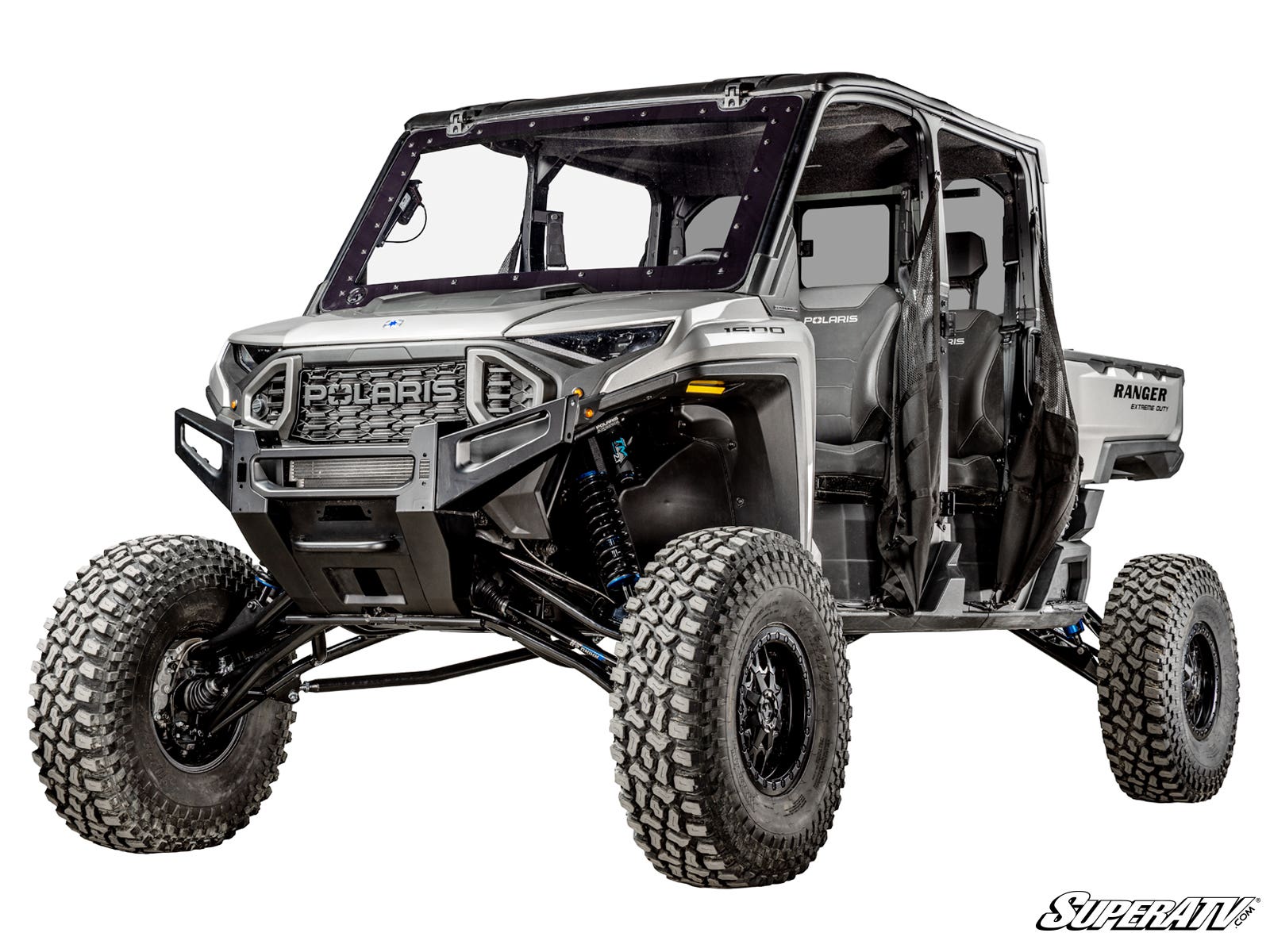

Turn your Ranger XD 1500 into the ultimate powerhouse

Your Polaris Ranger XD 1500 isn’t a true mud monster until it has SuperATV’s 6" Lift Kit installed. It gives you 22" of ground clearance, widens your stance by 9", and lets you run up to 39" tires. Built tough with Atlas Pro 1.5" Forward Offset A-Arms, it’s made to handle serious abuse while giving you more clearance, more width, and more capability on every ride.

Atlas Pro A-Arms for the win

The Atlas Pro A-Arms are built with ultra-strong DOM tubing. The main tubes are 1.5" x .25" while the support tubes are 1.5" x .13", making them much bigger than stock. These arms use a 1.5" diameter with a .25" wall steel, and they’re designed to take a serious beating without bending or breaking. Self-lubricating UHMW bushings help deliver a smooth, quiet ride.

Feels like stock

The shocks and brackets are set up at the right angles to help maintain a smooth ride. Turning radius remains close to stock, so the machine still feels easy and natural to handle.

Industry-leading Rhino 2.0 axles

This lift kit includes Rhino 2.0 Axles built with hardened 4340 chromoly steel and beefed-up CV joints. They are twice as strong as stock and designed to handle extreme 40° suspension angles without overheating. There is no break-in period needed, and they are backed by an 18-month warranty.

Ball joint options

Choose preassembled ball joints to save time and money during installation. If you do not select pre-installed ball joints at checkout, you must re-use your stock ball joints.

Heavy-duty ball joints are made from 4340 VAR steel, are zinc-plated for wear resistance, and feature an adjustable design with easy-access grease zerks. Super Duty 300M ball joints use 300M grade steel with an adjustable steel-on-steel design and easy-to-reach grease zerk. They are rated at 2.25 times stronger than stock.

Features

  • 6" of lift
  • 22" of ground clearance
  • 9" wider stance for increased stability (74" total width when installed)
  • Run up to 39" tires (up from 29" stock)
  • Preadjusted pivot blocks give you camber settings out of the box
  • Includes 4 Rhino 2.0 Axles
  • Atlas Pro 1.5" A-Arms
  • Self-lubricating UHMW bushings
  • Ultra-tough Z-bend tie rods
  • Lifetime warranty on all A-arms and brackets
  • Powder coated for increased durability

Kit includes

  • Front shock mount brackets
  • Rear shock mount brackets
  • Front shock mount cross brace
  • Rear sway bar relocation bracket
  • Limit straps
  • Front and rear Atlas Pro A-arms
  • (4) Rhino 2.0 Axles
  • Heavy-duty Z-bend tie rod kit
  • Extended brake lines
  • All hardware and installation instructions

Fitment

  • Polaris Ranger XD 1500 Premium: 2024+
  • Polaris Ranger XD 1500 NorthStar Premium: 2024+
  • Polaris Ranger XD 1500 NorthStar Ultimate: 2024+
  • Polaris Ranger Crew XD 1500 Premium: 2024+
  • Polaris Ranger Crew XD 1500 NorthStar Premium: 2024+
  • Polaris Ranger Crew XD 1500 NorthStar Ultimate: 2024+

Note

  • 1" wheel spacer required if you’re running stock wheels
  • Modification of stock skid plate required for track bar kit

Product Specs

SKU:
LK-P-RANXD-6-02
Brand:
SuperATV
