SuperATV Polaris Ranger XD 1500 6" Portal Gear Lift
SKU:
PGH6-1-107-301
SELECT FITMENT
See If This Product Fits Your Vehicle
- $3,099.95
- $3,099.95
$3,391.95- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99

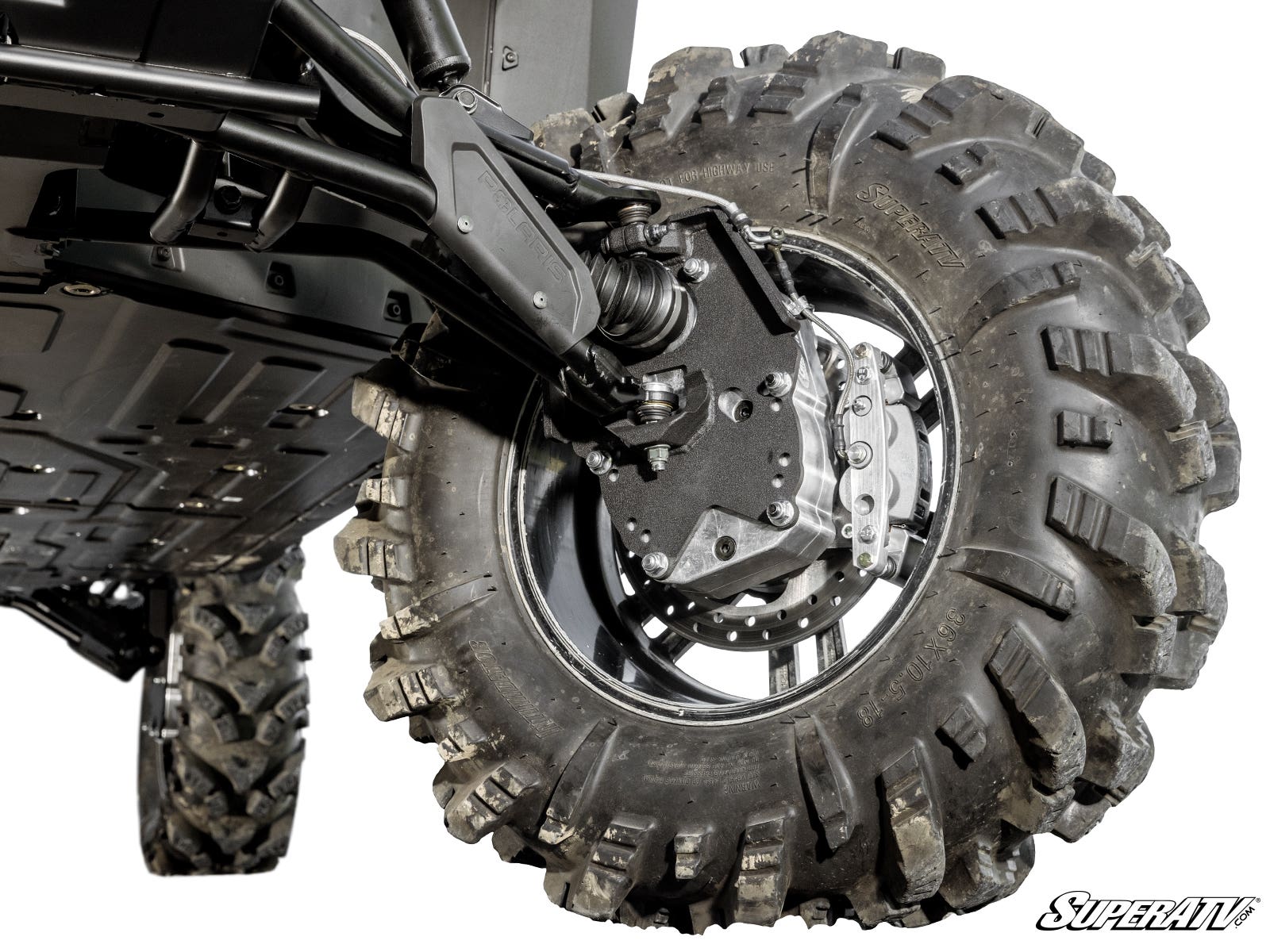

Polaris Ranger XD 1500 6" Portal Gear Lift
Your Ranger XD 1500 works hard and plays harder. SuperATV’s 6" Portal Gear Lift gives you massive ground clearance, room for huge tires, and the torque to tackle muddy creeks, rocky climbs, and everything in between. Choose a 30%, 45%, or 60% gear reduction to match your riding style, and upgrade to dual idlers for maximum strength.
Perfection takes time. After years of research and development, SuperATV’s dual idler gear portals spread the load over twice as much surface area for more reliable torque transfer and a stronger gear set. Precision CNC grinding ensures the gears mesh perfectly, and the gears are made from 9310 steel alloy.
A gear reduction in the hub helps protect your drivetrain from extra wear, while maintaining your factory suspension for cooler-running axles.
These portals are built tough with 5/16" advanced steel alloy backing plates and durable aluminum housings. Features include reinforced housings optimized for oil flow, advanced steel alloy backing plates, and no vents.
- Available with billet or cast aluminum housings
- Dual idler gear configuration maximizes strength
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use gaskets or O-rings for excellent sealing
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Dual idler gear configuration adds a 1" front and rear offset, 2" total extension
- Lighter than the competition
The portal system uses advanced gaskets and O-rings with excellent oil resistance, a sealed input gear, a double-lipped output seal, double-angular contact output bearings, and roller idler and drive bearings to maintain perfect gear meshing.
SuperATV recommends adding a Frame Stiffener with this 6" portal lift and oversized tires to help keep the frame from deforming under heavy use.
Kit Includes:
- (4) Assembled portal hubs complete with 9310 gears, seals, output shaft, advanced gaskets, and thrust bearings
- (4) Universal hubs and stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (8) Caliper mounting plate shims
- (2) Front caliper adapter plates
- (2) Front caliper slide pin adapters
- (4) Brake pad retaining clips
- (2) Steel steering arms
- Extended brake lines
- All required hardware, including recessed castle nut socket
- Frame stiffener (optional)
Max Tire Size Recommendations for 6" Portal Gear Lift:
- 34" tire size with stock suspension
Max tire sizes are measured at full compression and full turn. The given tire sizes are the largest fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.
If you need help figuring out which gear reduction is right for you, check out the portal gear reduction calculator.
Fitment:
- Polaris Ranger XD 1500 Premium : 2024+
- Polaris Ranger XD 1500 NorthStar Premium : 2024+
- Polaris Ranger XD 1500 NorthStar Ultimate : 2024+
- Polaris Ranger Crew XD 1500 Premium : 2024+
- Polaris Ranger Crew XD 1500 NorthStar Premium : 2024+
- Polaris Ranger Crew XD 1500 NorthStar Ultimate : 2024+
Wheel Requirements:
- 18" or larger wheel required
- 20" and larger wheels cannot exceed 5" backspacing
Patent # 11,299,042Patent # 11,318,787
Product Specs
SKU:
PGH6-1-107-301
Brand:
SuperATV
