SuperATV Polaris Ranger XP 1000 4" Portal Gear Lift - Cast Housing, 30% Gear Reduction, Single Idler

SKU: PGH-1-34-301#KQ

SELECT FITMENT

See If This Product Fits Your Vehicle

$2,649.95
$2,649.95
$2,941.95

Free Shipping

Free ground shipping on all orders over $99
Year and Model: 2017-2018 High Lifter Edition
Frame Stiffener: No, I already have a frame stiffener.
Portal Setup: Cast Housing, 30% Gear Reduction, Single Idler
Description

GDP Portals Transform Your Ride

Get a GDP Portal Gear Lift for the best power and performance on four wheels. With 4" GDP Portals, you can choose either a 15% or 30% gear reduction to get the right amount of torque for your tire size and how you ride. For riders who want extra strength, dual idlers are available for unmatched durability.

GDP Portal Gear Lifts are built for versatility, whether you ride wide open in the desert or crawl through mud. A 15% gear reduction gives you faster rides with plenty of torque, while a 30% gear reduction delivers the geared-down power needed for monster tires. Dual idlers add strength for riders who push their machines hard.

Portals place the gear reduction in the hub instead of the transmission, reducing stress on your axles, differential, prop shafts, and transmission while maintaining factory suspension geometry.

Built for strength

  • Available with billet or cast aluminum housing

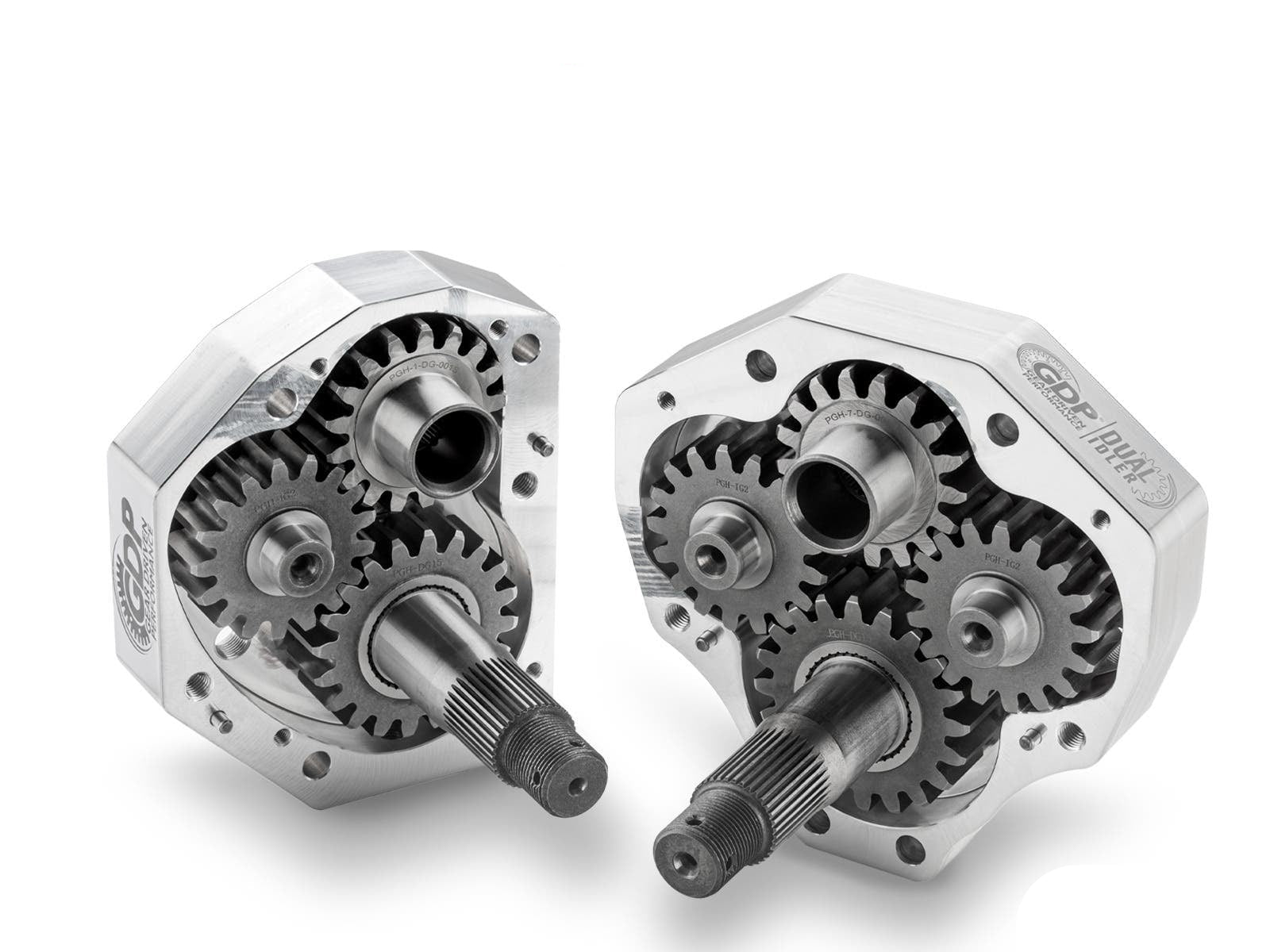

  • Dual idler gear configuration maximizes strength
  • Cool, quiet, precision-ground gears made from 9310 alloy billet steel
  • 1.5 in. diameter 4340 hardened steel drive shaft
  • Housings use advanced gaskets or O-rings
  • Universal hub fits all major bolt patterns
  • Lighter than the competition

Our cast and billet aluminum housings are reinforced for gear retention and optimized for oil flow. Advanced steel alloy backing plates add strength, and there are no vents because we found they do more harm than good.

Advanced seals and bearings

  • Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
  • Sealed input gear and double-lipped output seal
  • 100% sealing coverage throughout
  • Double-angular contact output bearings to help prevent premature wear
  • Roller idler and drive bearings to maintain perfect gear meshing

Enhance your setup with Portal Blood, gear oil formulated for GDP Portals.

4" Portal Gear Lift includes:

  • (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
  • (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
  • (4) Specialized steel alloy backing plates
  • (4) Steel caliper mounting plates
  • (2) Steel steering arms
  • (2) Caliper adapter plates (specific models only)
  • Extended brake lines
  • All required hardware, including recessed castle nut socket
  • Frame stiffener (optional)

Max tire size recommendations for 4" Portal Gear Lift:

  • 28.5" - Stock
  • 29.5" - 3" lift kit
  • 31" - 1.5" forward front A-arms
  • 31" - 1.5" forward front A-arms and 3" lift kit
  • 36" - 6" lift kit

Max tire sizes are measured at full compression and full turn. The sizes listed are the largest that fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes may be used. If you need help choosing the right gear reduction, use the portal gear reduction calculator.

Fitment:

  • Polaris Ranger XP 1000 : 2017+
  • Polaris Ranger XP 1000 Crew : 2017+
  • Polaris Ranger XP 1000 Northstar Edition : 2017-2020
  • Polaris Ranger XP 1000 Northstar Edition Crew : 2017-2020
  • Polaris Ranger XP 1000 Northstar Premium: 2021+
  • Polaris Ranger XP 1000 Northstar Premium Crew: 2021+
  • Polaris Ranger XP 1000 NorthStar Ultimate : 2021+
  • Polaris Ranger XP 1000 NorthStar Ultimate Crew : 2021+
  • Polaris Ranger XP 1000 Back Country : 2019
  • Polaris Ranger XP 1000 Back Country Crew : 2019
  • Polaris Ranger XP 1000 Texas Edition : 2020+
  • Polaris Ranger XP 1000 Texas Edition Crew : 2020+
  • Polaris Ranger XP 1000 High Lifter : 2017+
  • Polaris Ranger XP 1000 High Lifter Crew : 2017+
  • Polaris Ranger XP 1000 Trail Boss : 2021+
  • Polaris Ranger XP 1000 Trail Boss Crew : 2021+
  • Polaris Ranger XP 1000 Waterfowl Edition : 2021+
  • Polaris Ranger XP 1000 Waterfowl Edition Crew : 2021+
  • Polaris Ranger XP 1000 Big Game Edition : 2021+
  • Polaris Ranger XP 1000 Big Game Edition Crew : 2021+

Notes:

  • Frame stiffener does NOT fit High Lifter Edition
  • Frame stiffener option includes front frame stiffener only
  • If you plan on installing this portal kit with a preexisting RIDE System Rear Steering Kit or plan on adding one in the future, call 855-743-3427 for compatible parts
  • 14" or larger wheel required
  • Cannot exceed 5" backspacing
  • Not compatible with dual beadlock wheels
  • Wheels need a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer

Patent # 11,299,042Patent # 11,318,787
